SQRD L61

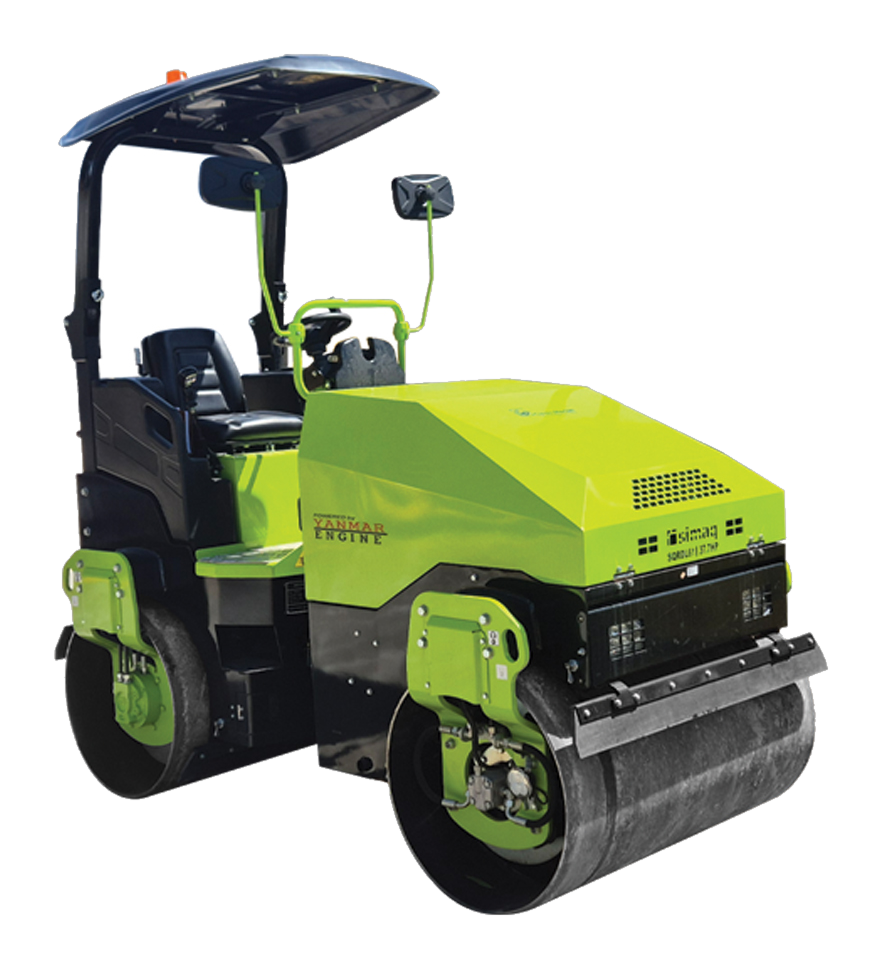

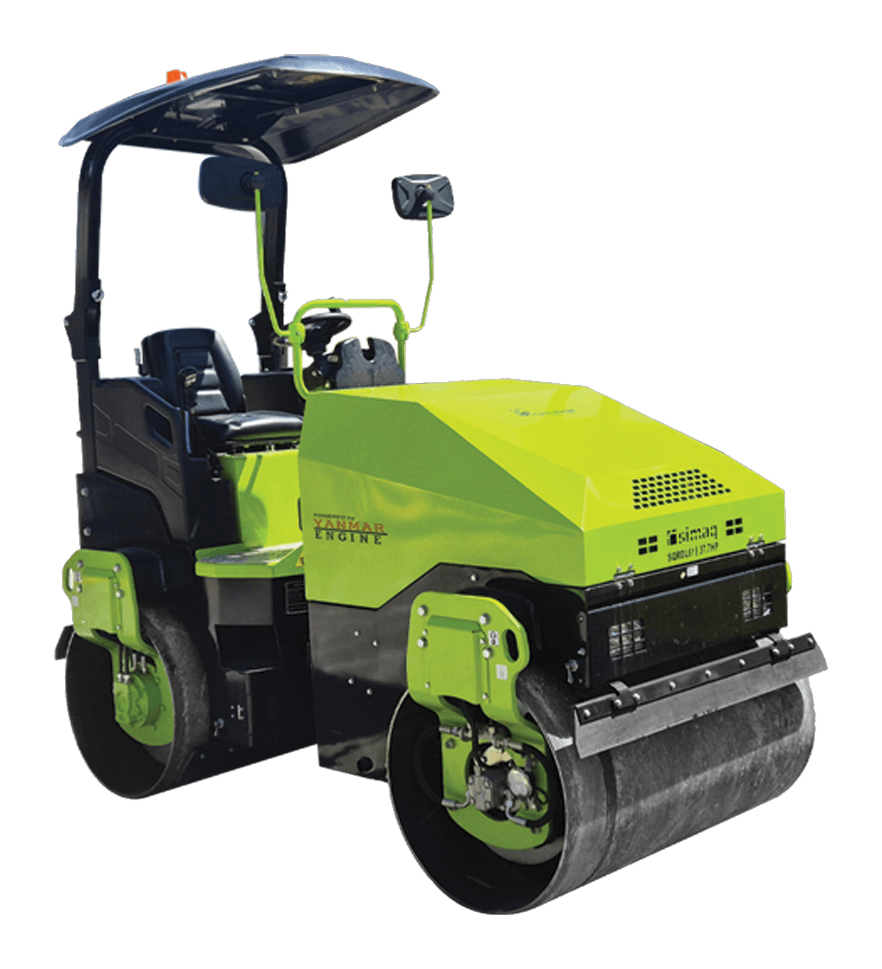

Ride-on vibratory roller SQRD L61
Ride-on power for embankment and roadwork.
Compare with another machineParts available for this machineBuy it from ConstruMarket in El Salvador
SIMAQ advantages
- Vibration on both drums: double compaction force
- 200 L water tank with sprinkler system
- ROPS canopy, roll bar, mirrors, strobe beacon and LED lights
- 36.3 HP Yanmar diesel engine with 2×30 kN centrifugal force
Features
- Ride-on
- Vibration on both drums
Specifications
- Working capacity
- 3 TONELADAS
- Speed
- 0-12KM/H
- Articulation
- 26%
- Drum width
- 1200 mm
- Centrifugal force
- 2×30 kN
- Compaction frequency
- 60 Hz
Shorts
SIMAQ smooth-drum rollers
Anatomy of the machine
Premium parts of the machine
Hover the dots —or tap them— to explore each component and why it matters.
Auto tour
5-minute training
5 minHow to use the ride-on roller
Ride-on roller: weight and vibration for roadways, embankments and asphalt. Output per pass over large areas.
Get your operator certified for free (Spanish)- 01
Walk-around inspection
Levels, leaks, drum and sprinkler condition. Seatbelt, horn and lights. Always mount facing in, three points of contact.
- 02
Rolling plan
Set the pattern: edges first, then low side to high side. On a curve, the inside lane first.
- 03
Asphalt: breakdown, intermediate, finish
A static breakdown pass, vibratory passes to densify while hot, and a final static pass to seal and erase marks.
- 04
Overlap and hold speed
~15 cm overlap between lanes. A steady walking speed: rushing leaves washboarding in the asphalt.
- 05
Kill vibration before stopping
Never stop with vibration on over asphalt: it leaves a dip. Switch off, then brake.
Do this
- Seatbelt always on; the machine has ROPS for a reason.
- Sprinkler open on asphalt, with the mix temperature under control.
- Smooth, gradual direction changes.
Avoid this
- Don't stop while vibrating on the hot mat.
- Don't descend slopes in neutral or coasting.
- Don't vibrate near structures or utilities without assessing.
Safety
- Seatbelt, hard hat, hi-vis vest and hearing protection.
- Traffic spotter and a signed zone on roadways.
- Respect the machine's maximum working grade.
Calculate before you quote
Applications
What jobs this machine is built for.
- Road bases and sub-bases
- Trench and pipe backfill
- Paving and interlock
- Embankments and pads
- Asphalt finishing
Buying guides
Clear up your questions before you quote
Guide · 7 min
Which roller compactor should you choose by tonnage and job?
From 0.78 to 4.2 tonnes: the seven SIMAQ rollers side by side, with weight, drum width, force and engine, and which roller compactor fits sidewalks, trenches, streets or roadwork.
Read Guide · 6 minDiesel, gas or electric engine: which one fits your jobsite?
Gas for portable gear, diesel for big machines on long shifts and electric for indoor work. Which engine each SIMAQ machine runs and how to decide without getting it wrong.
Read Guide · 7 minFlood equipment: the flood response gear to have ready before a hurricane
Light towers, 3″ and 4″ dewatering pumps, cutting, demolition and compaction: the flood equipment worth having ready, how much water each pump moves and how to check it all before the season.
ReadFrequently asked
Which compactor do I need for my soil?
Vibratory plate for granular soil, pavers and open areas; rammer (jumping-jack) for trenches and cohesive soils; roller for large areas and asphalt. Tell us the job and we'll recommend the machine.
Diesel, gasoline or electric?
Gasoline (Honda) for general, portable use; diesel for heavy duty and rollers; electric where emissions aren't allowed. All run world-brand engines.
Does it include warranty and parts?
Yes: 6-month SIMAQ warranty, parts and local after-sales at every distributor (ConstruMarket — CMARKET in Guatemala).
How do I get a quote?
Through the form or WhatsApp — reply during business hours. For volume, request a wholesale / container quote.
Ready for a quote?
Tell us about the job and we'll build the package. A rep replies during business hours.
Ride-on vibratory roller SQRD L61 · SQRD L61
Customer reviews
No reviews for this equipment yet. If you use it, tell others how it's going.
