Official SIMAQ breakdown

Parts for SQRD L61

245 parts for the Ride-on vibratory roller SQRD L61, with SIMAQ code, quantity per machine and spec where the manual provides it.

Parts
245
Wear items
57
Manual
SQRDL61OM-2026-A
Order with the formFull manual (PDF)See the machine

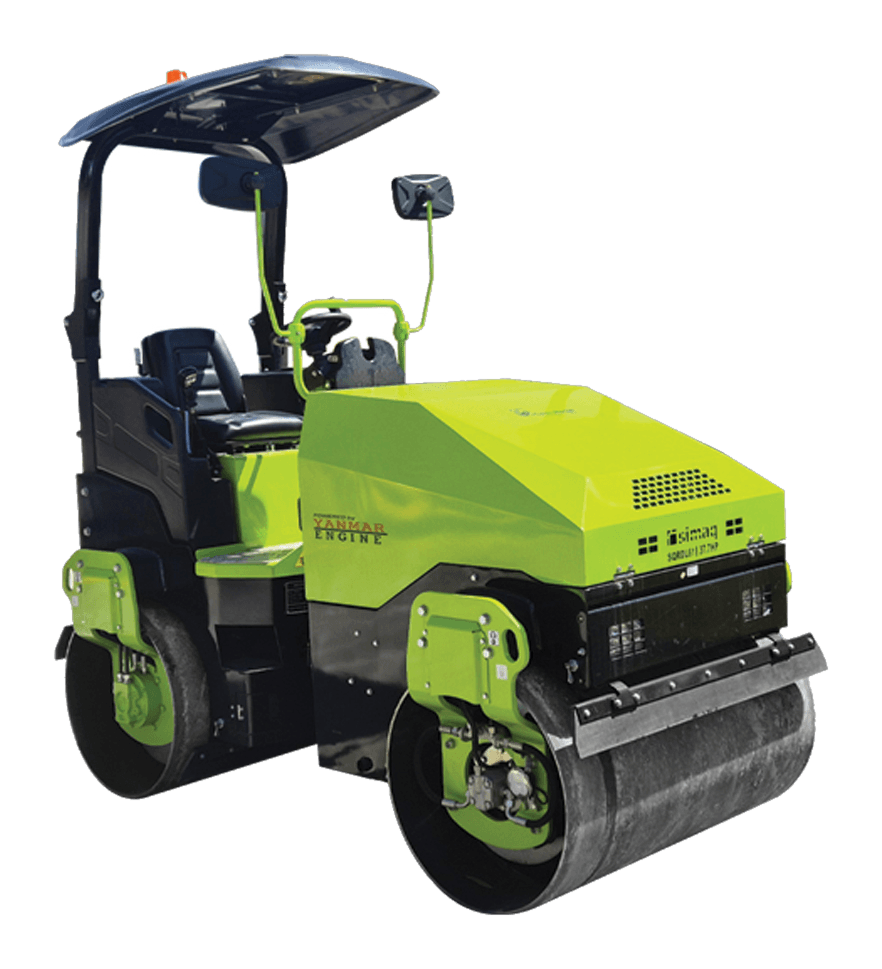

Ride-on vibratory roller SQRD L61

2 codes in this breakdown are flagged with ⚠ because the official manual repeats them or types letter O instead of zero. Confirm with support before ordering.

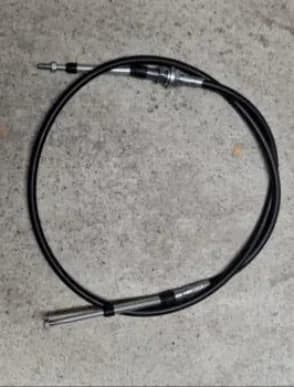

SQRD L61 parts with photos

The most-ordered parts, photographed in our warehouse. Compare before you order.

Maintenance

The machine's fluids: the wrong hydraulic grade will destroy the pump.

Hydraulic oil
VG46 antidesgaste

Exploded diagram

The number on the drawing is the same # in the table.

245 parts in the official breakdown.

SIMAQ codePartQtySpecOrder
#1Intate tube—1Order
#2Air filt er assembly (with safety filter element)—1Order
#3Intake pipe—1Order
#4Silencer—1Order
#5Outtake tube—1Order
#6Engine right front leg—1Order
#7Engine—1Order
#8Engine rear leg—2Order
#9Radiator inlet pipe—1Order
#10Priority valve—1Order
#11Priority valve retaining plate—1Order
#12Damping block—2Order
#13Oil-water cooler—1Order
#15Radiator mounting seat—1Order
#16Welded radiator support——Order
#17Rubber spacer——Order
#18Tank retaining plate—1Order
#19White plastic water tank—1Order
#20Water tank hoop—1Order
#21Radiator outlet pipe—1Order
#22Engine left front leg—1Order
#23Engine coupling—1Order
#24Engine flange 1——Order
#25Reversing line retaining plate 1——Order
#26Oil pump 1——Order
#27Reversing line assembly 1——Order
#28Pump control panel 1——Order
#29Gear pump 1——Order
#30Pump 1——Order
#32Gear coupling 1——Order
#33T-shaped rubber handle latch 2——Order
#34Pin shaft 2——Order
Stainless steel hinge—2Order
#2Front rack guard—1Order
#3Vibrating valve support——Order
#4Horn—1Order
#5Vibrating valve group——Order
#6Engine shock absorber—4Order
#9Code to confirmGalvanized flat pad—4Order
#8Nut—4Order
#9Code to confirm8.8 bolt—4Order
#11Cleaning port cover—1Order
#12Hydraulic oil tank cap—1Order
#13Oil pre ‐filter—2Order
#14Oil return cover—1Order
#15Liquid level indicator—1Order
#16Fixed plate—1Order
#17Pipe cover assembly—1Order
#18Oil suction filter—1Order
#19Hydraulic filter—1Order
#20Oil return filter support—1Order
#21Tank cap—1Order
#22Oil level sensor—1Order
#23Fixer——Order
#24Fuel tank—1Order
#25Water separator filter—1Order
#26Pressure indicator—1Order
#27Coarse filter fixing plate—1Order
#28Plate fixing bolt—1Order
#29Battery baffle—1Order
#30Hook—2Order
#31Battery—1Order
#32Battery platen—1Order
#33Brake valve support—1Order
#34Brake valve group—1Order
#35Oil return tee block—1Order
#36Double pin hole gas spring—2Order
#2Spring—4Order
#3Scraping board—2Order
#4Scraping board—2Order
#5Scraping fix board—4Order
#6Scraping board—4Order
#7Scraping board—4Order
#8Scraping board—2Order
#9Scraping board—2Order
#113*12EIastic cylindrical pin—4Order
#13Indexing pin cover—4Order
#14Bumper pin—4Order
#15M20*1.5nut—8Order
#16Front rack—1Order
#17Pipe clamp—8Order
#18Spray pipe—2Order
#19Sprinkler head—8Order
#20SPT - 2 SPT - 2—2Order
#21M8”15 S pring—2Order
#22LED light—4Order
#23Front baffle—1Order
#1Operating handle—2Order
#2Handle thread s Reeve—2Order
#3Nut—2Order
#4Right handle—1Order
#6Long connection shaft—3Order
#7Bolt—1Order
#8Spring pad—1Order
#9Flat pad—1Order
#10Drive block—1Order
#11Handle coupling sleeve—2Order
#12Handle swivel sleeve—2Order
#13Sensor—1Order
#14Nut—1Order
#15Reversing fixed plate assenbly—1Order
#16Neutral settch assemb1y—1Order
#17Nut—1Order
#18Gasket—2Order
#19Bolt—1Order
#20Revers ing rod assembly—1Order
#21Bearing—2Order
#22Nut—2Order
#23Reversng line assembl y—1Order
#24Pevers ing line holder—1Order
#25Bolt—2Order
#26Locating sleeve—8Order
#27Compression spring—2Order
#28Spr ing washer—2Order
#29Reversing pinshaft—4Order
#30Cotter pin—1Order
#31Pull rod—1Order
#32Se lf —lubricating bearing—3Order
#33Short connection shaft—1Order
#34Left handle assenbI y—1Order
#35Seat support—1Order
#36Seat—1Order
#37Thrott leasseinbly—1Order
#38Start settch (vithkey)—1Order
#39Energency stop button—1Order
#40Guard plate—1Order
#41Steering gear—1Order
#42Steering column—1Order
#43Steering column cover—1Order
#44Steering thee1—1Order
#45Steering wheel cover—1Order
#46Water jet switch—1Order
#4742*22 Svitch board—4Order
#48Li ght settch—1Order
#49Lockring—2Order
#50I nstrument housing—1Order
#51Combined—1Order
#52I nstrument mounting plate—1Order
#53Connection board cover—4Order
#54Rain shield connect ion board—2Order
#55Rain shield—1Order
#56Insurance base—1Order
#57Foot pedal—1Order
#58High pressure ball valve—1Order
#1Geared motor——Order
#2Motor coupling——Order
#3Bolt—M8X25Order
#4Spring washer—D8Order
#5Gear coupling——Order
#6Bolt—M12X25Order
#7Spring washer—Dl2Order
#8Hard tuve fixing plate——Order
#9Bolt—M8X35Order
#10Spring washer—D8Order
#11Flat gasket—D8Order
#12Pipe clamp borad——Order
#13Cushion sleeve——Order
#14Oil splint——Order
#15N ut—M16Order
#16M16 Washer——Order
#17Left suppon seat——Order
#18Rubber shock absorber——Order
#19Suppon wheel plate——Order
#20Vibrating end cover——Order
#21Bolt—M12X35Order
#22Spring washer—Dl2Order
#23Bearing seat support plate——Order
#24Bearing pedestal——Order
#25Deep groove ball bearing6019—Order
#26Oil seal105—Order
#27Dust ring120—Order
#28End cover——Order
#29Bolt12—Order
#30Spring washer12—Order
#31C3 Bearing311—Order
#32Oil seal80—Order
#33Bolt8—Order
#34Spring washer8—Order
#358.5X28 Flat gasket——Order
#36Yibrat ing shaft coupl——Order
#37Key——Order
#38Vibrating shaft welding assembly——Order
#39Drum welding assembly——Order
#40Oil seal80—Order
#41Vibrating bearing seat——Order
#42Flat gasket12—Order
#43Spring washer12—Order
#44Bolt12—Order
#45C3 Bearing311—Order
#46Retaining ring—120Order
#47Shaft cover——Order
#48Rubber shock absorber——Order
#49Bolt M16X45——Order
#50Gasket——Order
#51Drive disk——Order
#52Nut M12——Order
#53Gasket——Order
#54Suppon wheel plate——Order
#55Right suppon seat——Order
#57Bolt M12X55——Order
#58Driving motor——Order
#59Nut M16——Order
#60Gasket——Order
#56Gasket——Order
#1Solenoid valvule—1Order
#2Solenoid valve fixed board—1Order
#3Stain les s steel hinge—1Order
#4Jet pump COV9L—1Order
#5Scraper right connec Iing plate—1Order
#6Scraping fix board—2Order
#7Scmper left connecing—1Order
#8Scraper board—2Order
#9Spring—4Order
#10Scraper press board—4Order
#11Scraper left connecting plate—2Order
#12Scraperrightconnecting plate—2Order
#13Spanner—1Order
#14Spri nkl er head—4Order
#15Spray pipe—1Order
#16Pipe clamp—2Order
#17JoinI—2Order
#18Spring—1Order
#19LED light—2Order
#20Frontbaffle—1Order
#21Lover right ROPS—1Order
#22Lwer left ROPS—1Order
#23Top ROPS—1Order
#24Water tank1—Order
#25Water tank fix board1—Order
#26Seat vith safety1—Order
#27Frame shock absorber4—Order
#28Support board1—Order
#29Water pump1—Order
#30Rear rack welding assembly1—Order
#31Hook1—Order
#1Water cover bolt——Order
#2Bolt rubber gasket——Order
#3Nut——Order
#4Connection——Order
#5Tank drain cover——Order
#6Water cover rubber mat——Order
#7Water screen——Order
#8Tank cover——Order
#9Strainer fitting——Order
#10Water tank——Order
