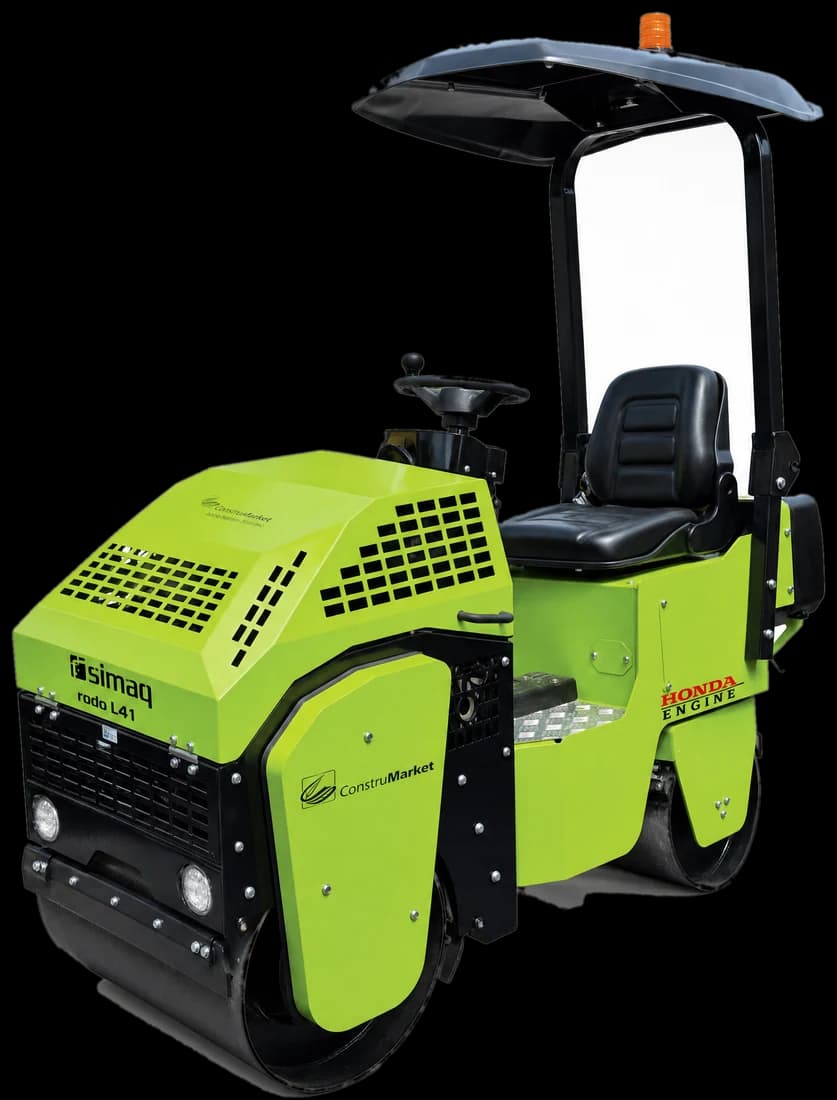

Ride-on vibratory roller SQRD L41

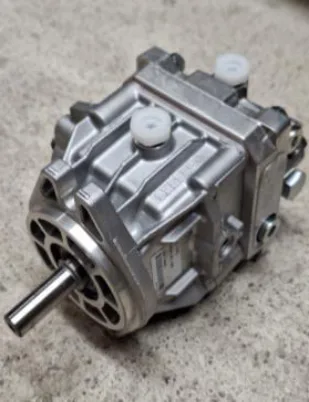

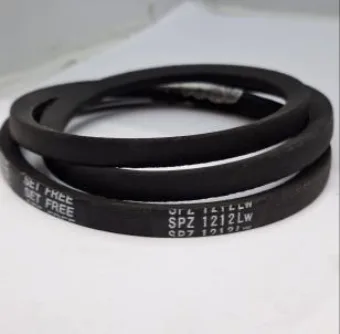

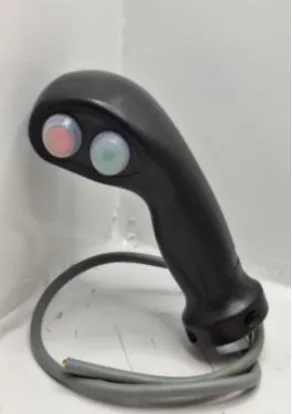

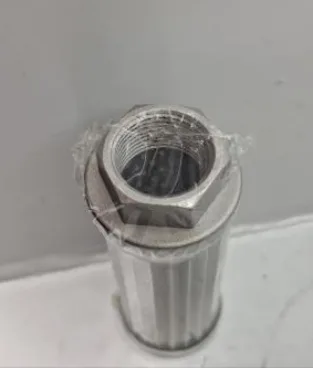

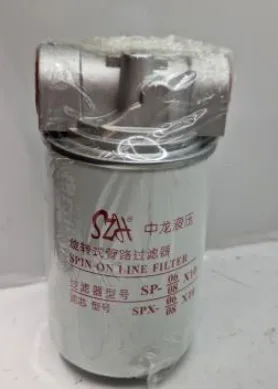

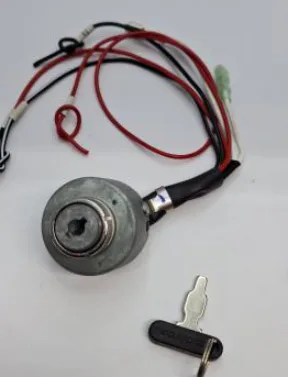

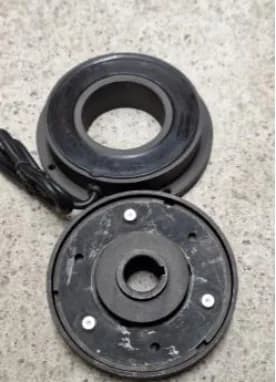

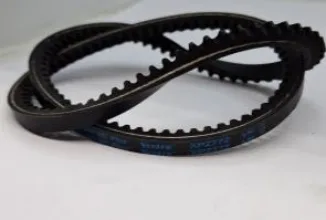

SQRD L41 parts with photos

The most-ordered parts, photographed in our warehouse. Compare before you order.

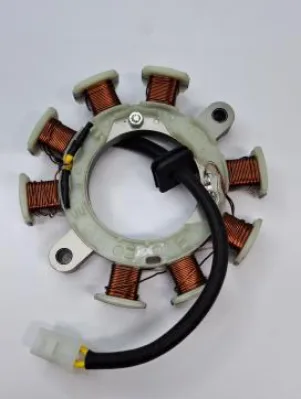

Parts for its Honda GX390 engine (24 parts with photos) →

Engine maintenance

Honda GX390

The engine consumables replaced at every service. The spark plug is listed by its manufacturer reference, not the engine part number, because that one varies by variant.

Spark plug
BPR6ES (NGK) · W20EPR-U (DENSO)
Plug gap
0,7–0,8 mm
Engine oil
SAE 10W-30, API SJ o superior
Oil capacity
1,1 L
Fuel tank
6,1 L
Valve clearance (cold)
Intake 0,15 ± 0,02 mm · Exhaust 0,20 ± 0,02 mm
Hydraulic oil
VG46 antidesgaste
Engine parts catalogEngine manual

For any other engine part, have the code stamped on the engine plate at hand: the same model has variants and part numbers differ between them. Send us that code and we'll confirm the part.

Exploded diagram

The number on the drawing is the same # in the table.

237 parts in the official breakdown.

SIMAQ codePartQtySpecOrder
#1Supporting plate of motor assembly—1Order
#2Hexagon bolt M10×30—5Order
#3Spring washerФ10—5Order
#4Flat washerФ10—5Order
#5Inner hexagon bolt M12×35410.9 gradeOrder
#6Flat washerФ12—11Order
#7End cover190X8Order
#8Circlip for holes1Φ90Order
#9Hexagon bolt M8×30—4Order
#10Spring washerФ8—52Order
#11Flat washerФ8—36Order
#12Gear box cover—1Order
#13Circlip for shaft1Φ40Order
#14Deep groove bearing16008ZZOrder
#15Small gear—1Order
#16Flat washerФ8—1Order
#17Driving motor—1Order
#18Hexagon bolt M12×35610.9 gradeOrder
#19Big gear—1Order
#20End cover of box—1Order
#21Framework oil seal1125- 160- 12Order
#22Circlip for shaft1Φ50Order
#23Deep groove bearing16210ZZOrder
#24Gear axle—1Order
#25Rubber shock absorber—2Order
#26Hexagon bolt M8×20—9 10.9gradeOrder
#27Hexagon bolt M8×25—24 10.9gradeOrder
#28Supporting plate of shock absorber—1Order
#29Locknut—16 M8Order
#30Framework oil seal—1 72X8Order
#31Circlip for holes—4 φ72Order
#32Bearing pedestal—2Order
#33Deep groove bearing—2 6207ZZOrder
#34Framework oil seal—2 42- 72- 8Order
#35Hexagon bolt M12×45—1 10.9gradeOrder
#36Flat washer—1 φ12Order
#37Flail block—1Order
#38Main alxe of vibration—1Order
#39Roller assembly—1Order
#40Framework oil seal—1 35- 72- 7Order
#41Supporting seat of roller—1Order
#42Framework oil seal—1 68- 95- 10Order
#43Circlip for holes—1 φ95Order
#44Deep groove bearing—2 6012ZZOrder
#45Bearing pedestal—1Order
#46Circlip for shaft—1 φ60Order
#47Framework oil seal—1 60- 75- 10Order
#1Belt wheel—1Order
#2V-belt2SPZ710Order
#3Deep groove bearing16007ZZOrder
#4Flange plate—1Order
#5Circlip for shaft1Φ35Order
#6Tension belt-wheel of vibration—1Order
#7Circlip for shaft2Φ20Order
#8Deep groove bearing16004ZZOrder
#9Circlip for hole1Φ42Order
#10Engine tension wheel shaft—1Order
#11Supporting seat assembly of hydraulic pump—1Order
#12Plate washerФ8—1Order
#13Spring washerФ8—1Order
#14Hexagon bolt M8×20—1Order
#15Hydraulic pump—1Order
#16Tornillo tensor/Tightening screw—1Order
#17Hexagon bolt M6×25—2Order
#18Hydraulic pump arm—1Order
#19Direction control cable—1Order
#20M8 rod ends bearing—1Order
#1Left fairing—1Order
#2Right fairing—1Order
#3Connector of air filter—1Order
#4Connect pipe of air filter—1Order
#5Mounting assy of air filter—1Order
#6Air filter—1Order
#7Engine—1Order
#8Hexagon bolt M10x45—4Order
#9Spring washer Ф10—8Order
#10Plate washer Ф10—8Order
#11Engine belt wheel—1Order
#12Engine key7x90—1Order
#13Hexagon bolt M8x40—1Order
#14V-belt coupling—1Order
#15Gear coupling—1Order
#16Vibration roller coupling—1Order
#17Inside hexagon bolt M8×40110.9 gradeOrder
#18Circlip for hole2Φ62Order
#19Deep groove bearing26305ZZOrder
#20Key 5x20—1Order
#21Driving shaft—1Order
#22Vibration shaft sleeve—1Order
#23Electromagnetic clutch—1Order
#24Circlip for hole1Φ42Order
#25Deep groove bearing26004ZZOrder
#26Pulley of electromagnetic clutch—1Order
#27Key of drive shaft—1 5X28Order
#28Plate washer Ф8—1Order
#29Holder of silencer—1Order
#30Draft tube——Order
#31Silencer—1Order
#32Joint pipe of Silencer—1Order
#33Hexagon bolt M8x20—1Order
#34Base plate of diesel engine—1Order
#35Hexagon bolt M10x30—4Order
#36Front frame assembly—1Order
#37Hexagon bolt M6x20—16Order
#38Spring washerФ6—16Order
#39Plain washerФ6—20Order
#40Cover plate of cleaning hole—2Order
#41O-ring—2 109x3.55Order
#42Lamp—2Order
#43Right fixed plate of scraper—1Order
#44Base plate of scraper—4Order
#45Scraper—2Order
#46Left fixed plate of scraper—1Order
#47Hexagon bolt M8×25—4Order
#48Pipe clamp—4Order
#49Water pipe assembly of front—Drum 1Order
#50Front fixed plate of scraper—2Order
#51Inner Hexagon bolt M6×30—4Order
#52Hexagon bolt M8×30 8——Order
#53Spring washer Ф8 26——Order
#54Plain washer Ф8 31——Order
#55Lock nut 22——Order
#1Top cover—1Order
#2Bridge type handle—2Order
#3Hexagon bolt M8×20—6Order
#4Spring washer Ф8—16Order
#5Plain washer Ф8—26Order
#6Hinge—2Order
#7Half round inside hexagon bolt M8×30—2Order
#8Heat shield of oil tank—1Order
#9The guide plate assembly—1Order
#10Back shield assembly—1Order
#11Rubber handle—2Order
#12Fixed block—2Order
#13Hexagon bolt M6×20—4Order
#14Spring washer Ф6—4Order
#15Plain washer Ф6—6Order
#16Mounting plate assembly of hydraulic filter—1Order
#17Hydraulic filter1SP - 06x10Order
#18Air filter1EF1- 25Order
#19Front frame assembly—1Order
#20Side shield—1Order
#21Vibration tensioner shaft—1Order
#22Vibration tensioner shaft sleeve—1Order
#23Deep groove bearing16004ZZOrder
#24Circlip for shaft1Φ20Order
#25Vibration tensioner—1Order
#26Circlip for hole 1——Order
#27Locknut M14 1——Order
#28Vibration pulley 1——Order
#29Flat Key 1——Order
#30Front roller 1 See picture 1——Order
#31Hexagon bolt M12×30 4——Order
#32Spring washer Ф12 4——Order
#33Plain washer Ф12 4——Order
#34Front shield 1——Order
#35Hexagon bolt M8×30 12——Order
#36Locknut M8 6——Order
#1Articulated shaft—2Order
#2Oil seal160x80x8Order
#3Bearing133009Order
#4Articulated shaft sleeve—2Order
#5Bearing133007Order
#6Disc spring) /Disc spring225.4x50x2x3.4Order
#7Articulated bolt—1Order
#1Outside base of bearing—2Order
#2Deep groove bearing26206- ZZOrder
#3Circlip for hole Ø62—4Order
#4Rear roller assembly—2Order
#5Deep groove bearing26007 - ZZOrder
#6Internal base of bearing—2Order
#7Rear drum shaft—1Order
#8Base plate of scraper—4Order
#9Scraper—2Order
#10Rear fixed plate of scraper—2Order
#11Supporting frame assembly of rear drum—1Order
#12Ends supporting—2Order
#13Manguito ajustable/Adjustable sleeve—2Order
#14Water pipe assembly of rear drum—1Order
#15Water Pipe cap—2Order
#16Front fixed plate of scraper—2Order
#17Articulated shaft—2Order
#18Oil seal160x80x8Order
#19Bearing133009Order
#20Articulated shaft sleeve—2Order
#2133007 Bearing—1Order
#22Disc spring225.4x50x2x3.4Order
#23Articulated screw—1Order
#1Seat—1Order
#2Operation handle assembly—1Order
#3Seat plate assembly—1Order

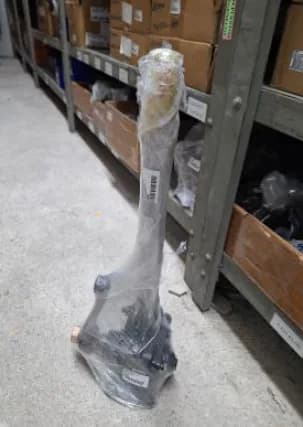

#4Steering gear box asembly—1Order
#5Left feet plate—1Order
#6Right feet plate—1Order
#7Rear machine frame assembly—1Order
#8LED lamp—1Order
#9Fixed plate of water valve—1Order
#10Solenoid valve—1Order
#11Anti-dumping frame bottom left section assembly—1Order
#12Anti-dumping frame bottom right section assembly—1Order
#13Nylon pad of Anti-dumping frame—4Order
#14Anti-dumping frame upper section assembly—1Order
#15Water tank pallet—1Order
#16Water tank partitions—1Order
#17Water tank—1Order
#18Water tank cap—1Order
#1Vibration switch—1Order
#2Panel I—1Order
#3Left handle—1Order
#4Right handle—1Order
#5Wire clip—1Order
#6Handle thread sleeve—1Order
#7Cover plate of direction—1Order
#8M14*1.5 Nut—1Order
#9Reversing rod assembly—1Order
#10Fixed frame assembly—1Order
#11Direction positioning pin—1Order
#12Limit bolt spring—1Order
#13SФ10 Steel ball—1Order
#14Nylon pad—2Order
#15Joint bearing M8—1Order
#16Direction control cable—1Order
#17Fixed frame of direction control cable—1Order
#18Base plate—1Order
#1Steering wheel—1Order
#2Damping ring—1Order
#3Top cover assembly—1Order
#4Upper section rotary sleeve—1Order
#5Upper pipe column—1Order
#6Hoop of upper pipe column—2Order
#7Upper section of driving shaft—1Order
#8Bearing161804Order
#9Circlips for shafts—1Order
#10Cross pin type joint—1Order
#11Cover plate—1Order
#12Supporting assembly of steering wheel—1Order
#13Steering gear box—1Order
