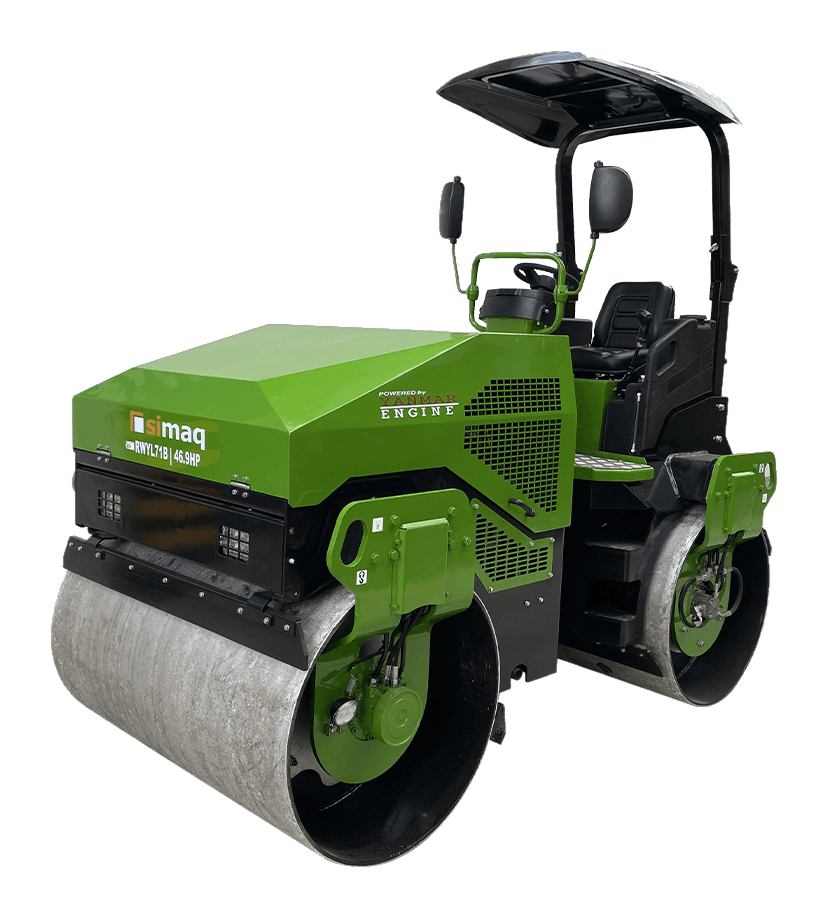

Ride-on vibratory roller SQRD L71

Engine maintenance

Yanmar 4TNV88

The engine consumables replaced at every service. Filters are listed with the reference given in the machine's manual.

Engine oil
API CH o superior
Oil capacity
7,4 L máx. · 3,4 L mín.
Hydraulic oil
VG46 antidesgaste
Engine parts catalogEngine manual

For any other engine part, have the code stamped on the engine plate at hand: the same model has variants and part numbers differ between them. Send us that code and we'll confirm the part.

Exploded diagram

The number on the drawing is the same # in the table.

292 parts in the official breakdown.

SIMAQ codePartQtySpecOrder
#1Vibration Motor—1Order
#2Motor Coupling—1Order
#3Bolt1M8X25Order
#4Spring Washer1D8Order
#5Gear Coupling—1Order
#6Bolt2M12X25Order
#7Spring Washer2D12Order
#8Hose fixed Plate—1Order
#9Bolt6M8X35Order
#10Spring Washer6D8Order
#11Flat Washer6D8Order
#12Pipe Clamp plate—2Order
#13Cushion Cover—6Order
#14Oil Pipe Clamp Plate—2Order
#15Luck Nut4M16Order
#16Washer M16—4Order
#17Pedestal—1Order
#18Rubber Absorber—6Order
#19Base Plate—6Order
#20Vibration End Cover—1Order
#21Bolt8M12X35Order
#22Spring Washer8D12Order
#23Bearing Base Plate—1Order
#24Bearing Base1—Order
#25Bearing 1—6019- ZZOrder
#26Oil Seal 1—105*140*13Order
#27Dust Ring 1—V- 120AOrder
#28End Cover1—Order
#29Bolt 8—M12X40Order
#30Spring Washer 8—D12Order
#31Bearing 1—NJ311- C3Order
#32Oil Seal 1—80*125*12Order
#33Bolt 1—M8X20Order
#34Spring 1—D8Order
#358.5X28 Flat Washer1—Order
#36Vibration Coupling1—Order
#37Flat Pin1—Order
#38Vibration Shaft Assembly1—Order
#39Drum Welding Assembly1—Order
#40Oil Seal 1—80*125*12Order
#41Vibration Bearing Base1—Order
#42Flat Washer 8—D12Order
#43Spring Washer 8—D12Order
#44Bolt 8—M12X45Order
#45Bearing 1—NJ311- C3Order
#46Retaining Ring 1—120Order
#47Dust Ring 1—V- 120AOrder
#48Rubber Absorber 6——Order
#49Bolt 5 M16X45——Order
#50Cushion Ring 5 M16——Order
#51Drive Plate 1——Order
#52Lock Nut 7 M12——Order
#53Cushion Ring 7 M12——Order
#54Base Plate 6——Order
#55Pedestal 1——Order
#56Cushion Ring 7 M12——Order
#57Bolt 7 M12X55——Order
#58Drive Motor 1——Order
#59Lock Nut 6 M16——Order
#60Cushion Nut 6 M16——Order
#1Self-lubricating Bearing—6Order
#2Mud Scraper Shaft—6Order
#3Spring4Φ2*φ13+84*31Order
#4Mud Scraper fixed plate—1Order
#5Mud Scraper fixed plate—1Order
#6Mud Scraper fixed plate—2Order
#7Mud Scraper—2Order
#8Mud Scraper fixed plate—2Order
#9Mud Scraper fixed plate—1Order
#10Mud Scraper fixed plate—1Order
#11Hood Absorber—6Order
#12Spring Pin——Order
#13Handle Assembly——Order
#14Pin seat——Order
#15Spring——Order
#16Pin——Order
#17Nut—M20*1.5Order
#18Side Cover Plate——Order
#19Front Frame——Order
#20Fuel Tank——Order
#21O Ring—3Order
#22Fuel level gauge base——Order
#23Oil level sensor——Order
#24Fuel Tank Cover——Order
#25Segregation board——Order
#26Connecting Plate——Order
#27Oil Tank——Order
#28Hydraulic Oil Filter——Order
#29Oil Filter base——Order
#30Liquid level meter——Order
#31Cover Plate——Order
#32Partition fixing plat——Order
#33Oil suction filter63—Order
#34Oil suction filter100—Order
#35Rubber Pad 1——Order
#36105AH Battery 16—Order
#37Latch hook 2——Order
#38Battery fixed Plate 1——Order
#39Battery Fixed Plate 1——Order
#40Gas Spring 2——Order
#41Hood 1——Order
#42Hinge 2——Order
#43Pipe Clamp 4——Order
#44Water Pipe 1——Order
#45Sprinkler 4——Order
#46Linker 1——Order
#47Gas Spring 1——Order
#48Light 2——Order
#49Front Bezel 1——Order
#1Pump—1Order
#2Vibration Valve—1Order
#3Fuel Pump—1Order
#4Fuel Filter—1Order
#5Filter Fixed Plate—1Order
#6Oil-water separator—1Order
#7Oil-water separator Holder—1Order
#8M10 Bolt—1Order
#9Φ10 Flat Washer—1Order
#10Rubber Absorber—6Order
#11Engine Holder—1Order
#12M10 Bolt—1Order
#13M10 Bolt—1Order
#14Engine Linker—1Order
#15Water tank Fixed Plate—1Order
#16Additional water tank—1Order
#17Radiator mounting base—1Order
#18Water Hose—1Order
#19Radiator—1Order
#20Connecting plate A—1Order
#21Rubber Absorber—1Order
#22Connecting plate B—1Order
#23Intake pipe—1Order
#24Suction Pipe 1——Order
#25Water tank 1——Order
#26Engine 1——Order
#27Gear Pump 1——Order
#28Air Filter 1——Order
#29Air Filter Collar 1——Order
#30Smoke exhaust pipe 1——Order
#31Muffle 1——Order
#32M10 Bolt 1——Order
#33Engine Base 1——Order
#34Hydraulic Oil filter 1——Order
#35Oil Filter Base 1——Order
#36Brake Valve Block 1——Order
#37Reversing wire support 1——Order
#38Nylon Coupling 1——Order
#39Engine flange 1——Order
#40Gear Coupling 1——Order
#1Bolt2M8*20Order
#2Spring Washer2Φ8Order
#3Flat Washer2Φ8Order
#4Locking plate—1Order
#5Lock Nut—1Order
#6Washer1Φ51*φ100*δ6Order
#7Bearing Base—1Order
#8Pin1Φ3*35Order
#9Flat Washer1Φ8Order
#10Steering support ring—1Order
#11Bearing2GE25ES - 2RSOrder
#12Steering support ring—1Order
#13Steering pin—1Order
#14Washer10Φ16Order
#15Bolt6M16*50Order
#16Bearing132011Order
#17Bearing132016Order
#18Oil Seal1TC 100*125*10Order
#19Bearing End Cover—1Order
#20M6 Oil Cup—2Order
#21Steering fixed plate—1Order
#22Bearing1GE50ESOrder
#23Oil Seal1TC 55*075*10Order
#24Steering Pedestal—1Order
#25Oil Seal 1—TC 55*075*10Order
#26Bearing 1—GE50ESOrder
#27Steering Pedestal—1Order
#28Bearing End Cover—1Order
#29Bolt 4—M16*60Order
#30Washer 4—Φ16Order
#31Flat Washer 6—Φ6Order
#32Spring Washer 6—Φ6Order
#33Bolt 6—M6*30Order
#34Bolt 2—M6*16Order
#35Spring Washer 2—Φ6Order
#36Flat Washer 2—Φ6Order
#37Lock Plate—1Order
#38Steering Cylinder—1Order
#1Electromagnetic Valve—1Order
#2Electromagnetic Valve Fixed Plate—1Order
#3Nut4M20*1.5Order
#4Pin—2Order
#5Spring—2Order
#6Pin Seat—2Order
#7Handle Assembly—2Order
#8Spring Pin—2Order
#9Spring—4Order
#10Mud Scraper Platen—1Order
#11Mud Scraper Shaft—6Order
#12Self-lubricating Bearing—6Order
#13Pin Seat—2Order
#14Mud Scraper—1Order
#15Water spray pipe assembly—1Order
#16M8*15 Gas Spring—1Order
#17Rear baffle assembly—1Order
#18Lower half of ROPS—1Order
#19ROPS washer—4Order
#20Top half of ROPS—1Order
#21Water Tank—1Order
#22Water Tank Lock—1Order
#23Seat Base—1Order
#24Absorber4—Order
#25Transition plate1—Order
#26Rear Frame Welding Assembly1—Order
#27Linker——Order
#28Water pump1—Order
#29Linker——Order
#30Lock Plate1—Order
#1Operation Handle—2Order
#2Handle Cover—2Order
#3Nut2M20*1.5Order
#4Right Handle Assembly—1Order
#5Retaining ring8Φ5Order
#6Long shaft—3Order
#7Bolt1M8*35Order
#8Spring Washer1Φ8Order
#9Flat Washer1Φ8Order
#10Drive block—1Order
#11Handle sleeve—2Order
#12Handle sleeve—2Order
#13Sensor1E2B - M12KS04 - WZBOrder
#14Lock Nut1M10Order
#15Reversing fixed plate assembly—1Order
#16NDS1A007Order
#17Nut1M20*1.5Order
#18Carrier ring2Φ10Order
#19Bolt1M10*50Order
#20Reversing lever assembly—1Order
#21Bearing2SI8T/KOrder
#22Nut2M8Order
#23Reversing wire assembly—1Order
#24Reversing wire fix ed frame—1Order
#25Bolt1M8*35Order
#26Locating sleeve—1Order
#27Spring—1Order
#28Spring Sleeve—1Order
#29Reversing pin—1Order
#30Pin1Φ2*20Order
#31Draw bar—1Order
#32Self-lubricating Bearing3Φ20*φ23*20Order
#33Short Shaft—1Order
#34Left handle assembly—1Order
#35Seat Base assembly—1Order
#36Seat—1Order
#37Throttle assembly—1Order
#38Starter Switch—1Order
#39Emergency stop button1CE3T - 10R- 02Order
#40Backplate—1Order
#41Steering gear—1Order
#42Steering stem—1Order
#43Steering stem Cover—1Order
#44Steering wheel—1Order
#45Steering wheel Cover—1Order
#46Water spray switch—1Order
#47Cover—4Order
#48Light Switch—1Order
#49Lock Ring—2Order
#50Display Cover—1Order
#51Display—1Order
#52Display fixed plate—1Order
#53Connecting plate cushion—4Order
#54Rain cover Linker Plate—2Order
#55Rain cover—1Order
#56Fuse Base—1Order
#57Footrest—1Order
#58High pressure ball valve—1Order
#1Bolt1M6X35Order
#2Flat Washer1Φ6Order
#3Throttle Handle—1Order
#4Rubber Seal—1Order
#5Bolt2M5X10Order
#6Connecting sleeve—1Order
#7Throttle Wire—1Order
#8M12 Nut—1Order
#9Piñón/Gear—1Order
#10Top sleeve—1Order
#11Spring—1Order
#12Lock Nut2M5Order
#13Lock Nut1M6Order
#14Steel Ball—1Order
#15Rack sleeve—1Order
#16Left through-hole housing—1Order
#17Right through-hole housing—1Order
