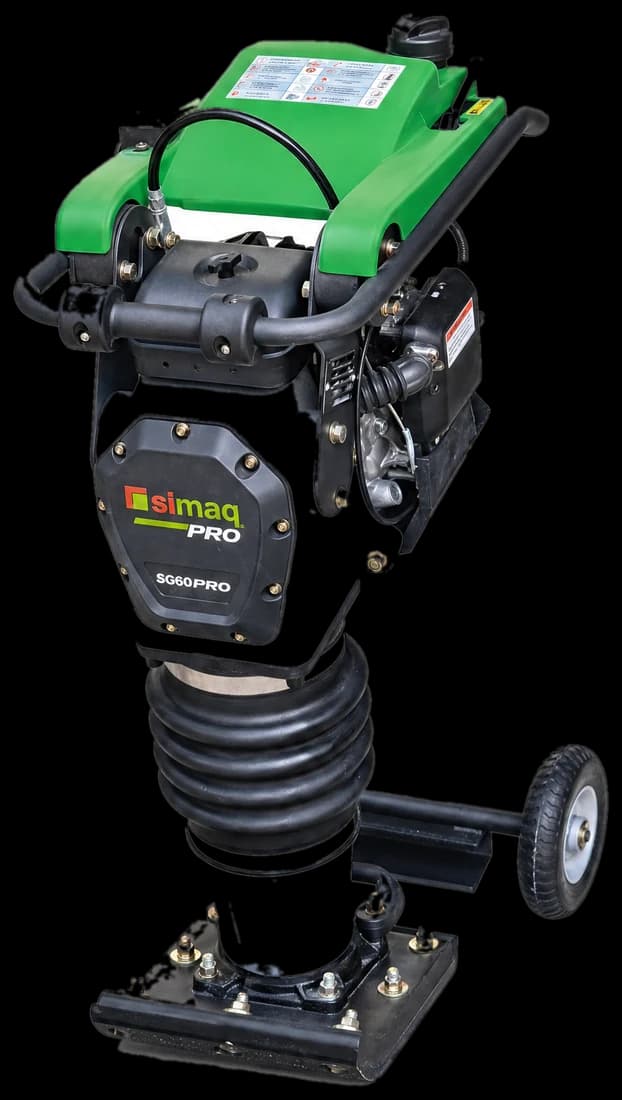

Vibratory compactor SQ60 PRO 2

Engine maintenance

Honda GXR120

The engine consumables replaced at every service. The spark plug is listed by its manufacturer reference, not the engine part number, because that one varies by variant.

Spark plug
U16FSR (DENSO) · CR5HSB (NGK)
Plug gap
0,6–0,7 mm
Engine oil
SAE 10W-30, API SJ o superior
Oil capacity
0,28 L
Valve clearance (cold)
Intake 0,15 ± 0,04 mm · Exhaust 0,20 ± 0,04 mm
Engine parts catalogEngine manual

For any other engine part, have the code stamped on the engine plate at hand: the same model has variants and part numbers differ between them. Send us that code and we'll confirm the part.

Exploded diagram

The number on the drawing is the same # in the table.

98 parts in the official breakdown.

SIMAQ codePartQtySpecOrder
#1Plastic cover1—Order
#2Fuel tank cap1—Order
#3Fuel tank1—Order
#4Flat washer φ610—Order
#5Hex socket head bolt (Allen bolt) M6*16- 8.84—Order
#6Grifo de combustible /Fuel valve / Fuel shut-off valve1—Order
#7Fuel hose clamp2—Order
#8Fuel hose1—Order
#9Fuel filter1—Order
#10Hex flange bolt M6*16- 8.84—Order
#11Hex socket head bolt (Allen bolt) M6*20- 8.86—Order
#12Throttle lever1—Order
#13Hex lock nut M62—Order
#14Hex flange nut M102—Order
#15Marco del asa/Handle frame / Handlebar frame1—Order
#16Amortiguadores pequeños /Small bumpers / Small dampers2—Order
#17Plastic handle 11—Order
#18Plastic handle 21—Order
#19Hex nut M64—Order
#20Shock absorber2—Order
#21Right side plate1—Order
#22Cable de levantamiento /Lifting cable1—Order
#23Hex bolt M10*25- 8.88—Order
#24Spring washer (Grower washer) φ1014—Order
#25Flat washer φ1014—Order
#1Hex flange bolt M6*25- 8.81—Order
#2Cubierta de la carcasa/Gearcase cover / Housing cover1—Order
#3Hex flange bolt M6*16- 8.89—Order
#4Hexagonal bolt M8*20- 8.82—Order
#5Spring washer (Grower washer) φ82—Order
#6Flat washer φ82—Order
#7Seguro elástico/Retaining ring / Circlip φ521—Order
#8Balero/Bearing 63041—Order
#9Connecting rod1—Order
#10Crankshaft gear1—Order
#11Balero/Bearing 62071—Order
#12Balero/Bearing 6204 - 2Z1—Order
#13Seguro elástico/Retaining ring / Circlip φ474—Order
#14Pinion gear1—Order
#15Balero/Bearing 62041—Order
#16Anillo de retención/Retainer / Retaining ring φ351—Order
#17Balero/Bearing 6007 - Z1—Order
#18Pin φ8*61—Order
#19Gearbox housing1—Order
#20O –ring/O-ring seal 43.7*1.81—Order
#21Dust cover1—Order
#22Oil seal 40*68*81—Order
#23Flat key 5*201—Order
#24Clutch drum1—Order
#25O –ring/O-ring seal 22.4*2.651—Order
#1Hex bolt M8*25- 8.84—Order
#2Spring washer (Grower type) φ88—Order
#3Engine mounting plate1—Order
#4Hex socket head bolt (Allen bolt) M10*60- 8.82—Order
#5Hex bolt M10*60- 8.82—Order
#6Spring washer φ102—Order
#7Flat washer φ102—Order
#8Thin hex nut (jam nut) M121—Order
#9Lock washer1—Order
#10Clutch φ151—Order
#11Woodruff key (half-moon key) 4mm1—Order
#12GXR120 engine1—Order
#13Engine guard / Engine protector1—Order
#14Flat washer φ84—Order
#15Hex bolt M8*30- 8.84—Order
#1Nylon plug2—Order
#2Piston pin1—Order
#3Center shaft1—Order
#4O-ring/Gasket / O-ring 160×42—Order
#5Outer cylinder1—Order
#6Hex socket head bolt (Allen bolt) M10×35- 12.94—Order
#7O-ring/Gasket / O-ring 160×5.31—Order
#8Shock absorber block1—Order
#9Center bushing1—Order
#10Clamp assembly2—Order
#11Dowel pin 6×82—Order
#12Bellows1—Order
#13Inner spring2—Order
#14Outer spring2—Order
#15Spacer1—Order
#16Fine-thread hex nut M18×1.51—Order
#17Aluminum bushing1—Order
#18Copper washer φ122—Order
#19Drain plug bolt M12×24×1.252—Order
#20Copper washer φ161—Order
#21Oil level indicator M16×10×1.51—Order
#22O-ring/O-ring seal 105×5.71—Order
#23Inner cylinder1—Order
#24O-ring/O-ring seal 87.5×3.551—Order
#25Inclined base1—Order
#1Hex lock nut M1211—Order
#2Spring washer (Grower washer) φ1211—Order
#3Flat washer φ124—Order
#4Large flat washer φ127—Order
#5Base plate1—Order
#6Tornillo /Bolt / Screw M12×60- 12.97—Order
#7Base shoe1—Order
#8Tornillo/Bolt / Screw M12×75- 12.92—Order
