Ride-on vibratory roller SQRD L 51

77 codes in this breakdown are flagged with ⚠ because the official manual repeats them or types letter O instead of zero. Confirm with support before ordering.

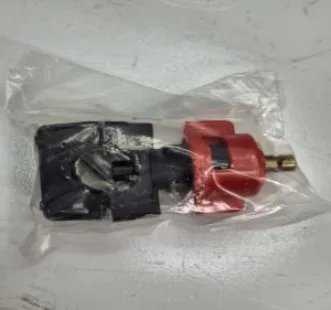

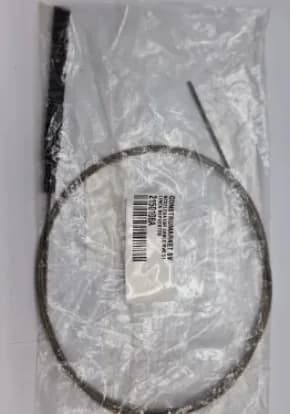

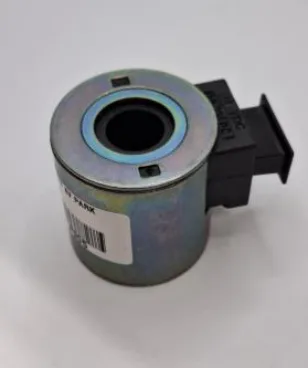

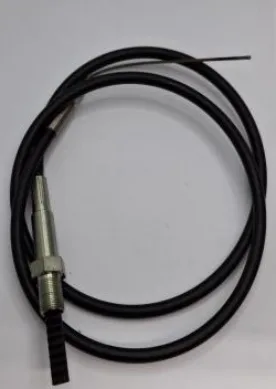

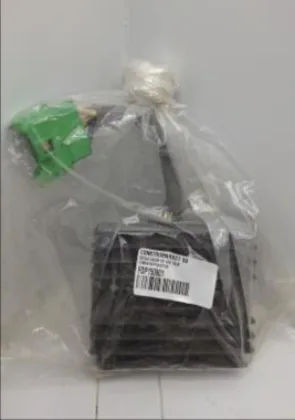

SQRD L 51 parts with photos

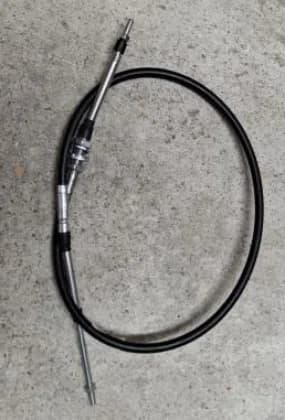

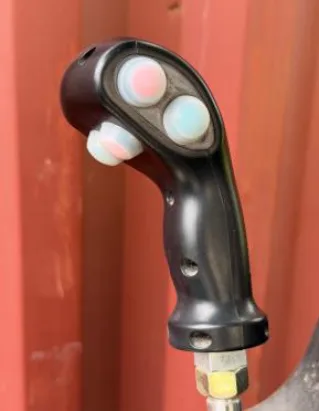

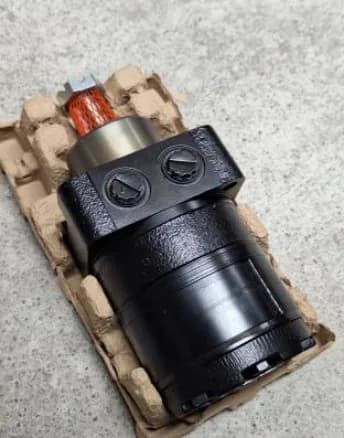

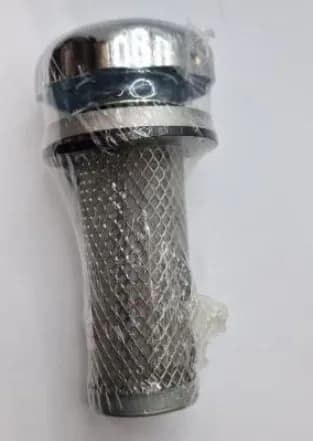

The most-ordered parts, photographed in our warehouse. Compare before you order.

Engine maintenance

Honda GX630

The engine consumables replaced at every service. The spark plug is listed by its manufacturer reference, not the engine part number, because that one varies by variant.

Spark plug
ZFR5F (NGK)
Plug gap
0,7–0,8 mm
Engine oil
SAE 10W-30, API SJ o superior
Oil capacity
1,5 L · 1,7 L si se cambia el filtro
Valve clearance (cold)
Intake 0,08 ± 0,02 mm · Exhaust 0,10 ± 0,02 mm
Engine parts catalogEngine manual

For any other engine part, have the code stamped on the engine plate at hand: the same model has variants and part numbers differ between them. Send us that code and we'll confirm the part.

Exploded diagram

The number on the drawing is the same # in the table.

344 parts in the official breakdown.

SIMAQ codePartQtySpecOrder
#1Bolt M8X3O—4Order
#2Stainless Steel hinge assembly2Stainless steelOrder
#3Nut M8—4Order
#4Front frame—1Order
#5Rectifier module—1Order
#6Radiator—1Order
#7Hood—1Order
#8Upper fixed block—2Order
#9Bridge handle—2Order
#1OCode to confirmGuard rear plate—1Order
#11Rubber handle2RubberOrder
#12Lower fixed block—2Order
#13Pin—2Order
#14Air filter—1Order
#15Liquid level gauge—1Order
#16Cleaning hole cover—1Order
#1Scraper fixing plate—1Order
#2Scraper—1Order
#3Scraper plate—1Order
#4Right front mounting plate—1Order
#5Left front mounting plate—1Order
#6Extension spring—2Order
#7Nozzle3SPT - 3Order
#8Pipe clamp—4Order
#9Sprinkler—1Order
#1Connectors 1 SPT1SPT - 2Order
#11Bolt—1Order
#12Nuts—1Order
#13Self-lubricating bearing—4Order
#14Shock absorber block—1Order
#15Scraper shaft—1Order
#16Nuts—1Order
#17Front frame—1Order
#18Gas Spring1135*3O*5o ONOrder
#19Baffle assembly—1Order
#2LED Light 2 LN - 5O122LN - 5O12Order
#21Handle assembly—1Order
#22Elastic cylindrical pin—1Order
#23Hexagonal thin nut2M2O*1.5Order
#24Stop pin seat—1Order
#25Stop pin—1Order
#26Lower left mounting plate—1Order
#27Lower right mounting plate—1Order
#1Front frame—1Order
#2Reversing line assembly—1Order
#3Nut M8—1Order
#4Adjusting lever—1Order
#5Nut M8 left hand—1Order
#6Left-hand external thread rod end bearing1SAL8T/KOrder
#7Oil pump arm—1Order
#8Pump gear pump assembly—1Order
#9Hydraulic pump motor gear coupling1ZG35Order
#1OCode to confirmNylon coupling—1Order
#11Engine gear coupling1NL66Order
#12Engine hydraulic pump support—1Order
#13B-type English key—1Order
#14Gasoline engine1GX63OH - QAFHOrder
#15Muffler front guard—1Order
#16Silencer1Stainless steelOrder
#17Muffler guard—1Order
#1Front frame—1Order
#2Oil return spin filter—1Order
#3Filter holder—1Order
#4Fixed bracket—1Order
#5Vibration valve group—1Order
#6Trailer valve group—1Order
#7Gear pump assembly—1Order
#8Air filter—1Order
#9Oil filling hole—1Order
#1Upper support frame assembly1—Order
#2Electromagnetic valve1—Order
#3Flat washer Ф52—Order
#4Elastic washer Ф52—Order
#5Hexagon socket bolt m 5*162—Order
#6Guardia/Guard1—Order
#7Flat washer Ф86—Order
#8Elastic washer Ф 86—Order
#9Hexagonal bolt m8*2O6—Order
#1OCode to confirmRain cover1—Order
#11Instrument case1—Order
#12Lighting switch1—Order
#13Tablero de instrumentos/Instrument cluster1—Order
#14Rain cover connecting plate2—Order
#15Cross round head bolt m 4*162—Order
#16Flat washer Ф 42—Order
#17Lock nut m 42—Order
#18Six-blade fuse box1—Order
#19Steering wheel1—Order
#2OCode to confirmSteering column——Order
#21Hexagon socket bolt m 1O*3O4—Order
#22Elastic washer Ф 1O4—Order
#23Flat washer Ф 1O4—Order
#24Hydraulic steering gear 1——Order
#25Throttle wrench assembly 1——Order
#26Flat washer Ф 5 2——Order
#27Elastic washer Ф 5 2——Order
#28External bolt m 5*35 2——Order
#29Key switch 1——Order
#3OCode to confirmEmergency button 1——Order
#31Proximity switches 1——Order
#32Handle swivel sleeve 1——Order
#33Hexagon socket bolt m 5*1O 2——Order
#34Nut m 1O 1——Order
#35Placa de reversa/Reversing plate 1——Order
#36Flat washer Ф 8*18 2——Order
#37Elastic washers 1——Order
#38Hex bolts m 8*3O 1——Order
#39Reversing crossbar 1——Order
#4OCode to confirmBaffle 1——Order
#41Neutral switch assembly 1——Order
#42Median fixation plate 1——Order
#43Sliding sleeve 1——Order
#44Spring 1——Order
#45Fixed set 1——Order
#46Reversing axis 1——Order
#47Handle connection sleeve 1——Order
#48Long connecting shaft1—Order
#49Short connecting shaft1—Order
#5OCode to confirmReversing rod assembly1—Order
#51Reversing handle assembly1—Order
#52Bearing1—Order
#53Hexagonal bolt m 8*351—Order
#54Reversing line assembly1—Order
#55Gear sleeve1—Order
#56Belleville washers2—Order
#57Gear sleeve1—Order
#58Hex bolts m 1O*551—Order
#59Reversing line fixing bracket1—Order
#6OCode to confirmHexagon socket bolt m6*352—Order
#61Elastic washer Ф62—Order
#62Flat washer Ф62—Order
#1Rear frame welding assembly—1Order
#2Frame vibration damping block4XD15OO.7.4Order
#3Flat washer Ф8—2Order
#4Elastic washer Ф8—2Order
#5Hexagonal bolt m8*2O—2Order
#6Micro Electric Diaphragm Pump—1Order
#7Flat washer Ф5*16—4Order
#8Elastic washer Ф5—4Order
#9Hexagon socket bolt m5*3O—4Order
#1OCode to confirmWater pump connector1Spray pump withOrder
#11Water pump connector—1Order
#12Connecting frame assembly—1Order
#13Flat washer Ф1O*23.5—2Order
#14Elastic washer Ф1O—2Order
#15Hexagonal bolt m1O*25—2Order
Retorno de filtro) / Boss joint oil level sensor (suction, 16—1Order
#17Sealing cover 1——Order
#18Fuel tank cap with lock 1——Order
#19Fuel tank——Order
#2OCode to confirmAnti-rotation plate 1——Order
#1Connectors1—Order
#2Water tank drain cap1—Order
#3O - Ring1—Order
#4Water filter assembly1—Order
#5Screw plug1—Order
#6Water tank1—Order
#7Radiator cap1—Order
#8Water filter1—Order
#1Flat washer Ф 6—6Order
#2External bolt m6*16—6Order
#3Sealing cover—1Order
#4Hexagon socket bolt m12*1O—4Order
#5Flat pad—4Order
#6Drive motor—1Order
#7Drive support seat—1Order
#8Brake fixing plate—1Order
#9Hexagonal bolt m1O*5O—4Order
#1OCode to confirmFlat washer Ф1O—4Order
#11Brake disc—1Order
#12Cushion Cover—4Order
#13Nut m16—4Order
#14Flat pad—4Order
#15Motor drive disc—1Order
#16Transmission sleeve—1Order
#17Vibration damping block—4Order
#18Shaft cover—1Order
#19Hexagonal bolt m1O*3O 1O.9—6Order
#2OCode to confirmFlat pad—6Order
#21Bearing end cap—1Order
#22Motor nut1Motor withOrder
#23Flat pad—6Order
#24Hexagonal bolt m1O*25 1O.9—6Order
#25Spring—1Order
#26Dust seal HW13—1 45*51.8*5 XPU+NBROrder
#27Pin—1Order
#28Block sleeve—1Order
#29Brake housing—1Order
#3OCode to confirmSpring washer Ф1O—4Order
#31Hexagon socket bolt m1O*3O—4Order
#32Bearing 619O9—1Order
#33Circlips for holes—1Order
#34Circlips for holes—1Order
#35Bearing 6OO5—1Order
#36O Ring—1Order
#37Roller—1Order
#38Bearings—1Order
#39Vibration shaft assembly—1Order
#4OCode to confirmKey—1Order
#41Vibrating shaft coupling—1Order
#42Nylon sleeve—1Order
#43Bearings—1Order
#44Skeleton oil seal—1Order
#45Bearing fixed seat—1 no usedOrder
#47Hexagonal bolt m1O*3O 1O.9—6Order
#48Drive bearing seat 1——Order
#49Disk drive 1——Order
#5OCode to confirmVibration motor mount 1——Order
#51Hexagonal bolt m1O*3O 1O.9 6——Order
#52Vibration damping block 3——Order
#53Vibration support 1——Order
#54Motor coupling 1——Order
#55Gear Motor 1——Order
#56Lock nut m16 3——Order
#57Flat pad m16 3——Order
#58Flat pad m16 3——Order
#59Lock nut m16 3——Order
#1Code to confirmHexagon socket bolt m12*75 1O.9—4Order
#2Code to confirmSpring washer Ф 12—4Order
#3Code to confirmDrive motor—1Order
#4Code to confirmDrive support seat—1Order
#5Code to confirmNut m16—4Order
#6Code to confirmFlat washer—4Order
#7Code to confirmMotor drive disc—1Order
#8Code to confirmTransmission sleeve—1Order
#9Code to confirmVibration damping block—4Order
#1OCode to confirmShaft cover1OutsourcingOrder
#11Code to confirmHexagonal bolt m1O*2O—6Order
#12Code to confirmFlat washer—6Order
#13Code to confirmBisel (Bezel)/Bezel—1Order
#14Code to confirmMotor nut1Motor withOrder
#15Code to confirmFlat washer—6Order
#16Code to confirmHexagonal bolt m10*20—6Order
#17Code to confirmRoller—1Order
#18Code to confirmBearing fixed seat1Vintage piecesOrder
#19Code to confirmFlat pad6212O53OOrder
#2OCode to confirmHexagonal bolt m1O*3O6212O542Order
#21Code to confirmDrive bearing seat1212O534Order
#22Code to confirmDisk drive1212O533AOrder
#23Code to confirmVibration motor mount1212O531Order
#24Code to confirmHexagonal bolt m1O*3O 6 212O532——Order
#25Code to confirmVibration damping block 3——Order
#26Code to confirmDrive support seat 1——Order
#27Code to confirmLock nut m16 3——Order
#28Code to confirmFlat pad m16 3——Order
#29Code to confirmFlat pad m16 3——Order
#3OCode to confirmLock nut m16 3——Order
#1Code to confirmRear frame welding assembly—1Order
#2Code to confirmLower right mounting plate—1Order
#3Code to confirmLower left mounting plate—1Order
#4Code to confirmHexagonal thin nut—2Order
#5Code to confirmStop pin—1Order
#6Code to confirmReturn spring—1Order
#7Code to confirmStop pin seat—1Order
#8Code to confirmHandle assembly—1Order
#9Code to confirmElastic cylindrical pin—1Order
#1OCode to confirmScraper fixing plate—1Order
#11Code to confirmScraper—1Order
#12Code to confirmScraper plate—1Order
#13Code to confirmRight front mounting plate—1Order
#14Code to confirmLeft front mounting plate—1Order
#15Code to confirmShock absorber block—2Order
#16Code to confirmAnti-fall frame assembly—1Order
#17Code to confirmAnti-fall frame assembly—1Order
#18Code to confirmFlat washer Ф16—1Order
#19Code to confirmElastic washer Ф16—1Order
#2OCode to confirmHexagonal bolt m16*4O—1Order
#21Code to confirmEyebolt—2 M12Order
#22Code to confirmAnti-fall frame upper section assembly—1Order
#23Code to confirmLock nut m12—1Order
#24Code to confirmFlat washer Ф12—1Order
#25Code to confirmCushion Cover—2Order
#26Code to confirmFlat washer Ф12—1Order
#27Code to confirmHexagonal bolt m12*9O—1Order
#28Code to confirmPlastic water tank—1Order
#29Code to confirmSeats—1 SC1 (with switch)Order
#3OCode to confirmHexagonal bolt m1O*55—1Order
#31Elastic washer Ф1O—1Order
#32Flat washer Ф1O—1Order
#33Upper support frame assembly—1Order
#34Bolt—1Order
#35Elastic washer Ф8—1Order
#36Flat washer Ф8—1Order
#37Frame vibration damping block4XD15OO. 7.4Order
#38Transition plate—1Order
#39Water tank fixing plate—1Order
#4OCode to confirmFlat washer Ф1O*23.5—1Order
#41Elastic washer Ф1O—1Order
#42Bolt m 1O*25—1Order
#43Elastic washers—1Order
#44Bolt—1Order
#1Rubber Tube Assembly—1Order
#2Rubber Tube Assembly—1Order
#3Rubber Tube Assembly—1Order
#4Rubber Tube Assembly—1Order
#5Rubber Tube Assembly—1Order
#6Rubber Tube Assembly—1Order
#7Connector—5Order
#8Connector—1Order
#9Connector—2Order
#10Rubber Tube Assembly—1Order
#11Connector—1Order
#12Connector—1Order
#13Connector—1Order
#14Rubber Tube Assembly—1Order
#15Connector—1Order
#16Connector—1Order
#17Hydraulic Pump Assembly—1Order
#18Return Oil Filter—1Order
#1Connector—4Order
#2Filtro metálico (Net)/Net—4Order
#3Cutting Sleeve—4Order
#4Rubber Tube Assembly—1Order
#5Rubber Tube Assembly—1Order
#6Rubber Tube Assembly—1Order
#7Rubber Tube Assembly—1Order
#8Rubber Tube Assembly—1Order
#9Connector—4Order
#10Driving Motor—2Order
#1Connector—3Order
#2Connector—1Order
#3Connector—2Order
#4Rubber Tube Assembly—1Order
#5Rubber Tube Assembly—2Order
#6Rubber Tube Assembly—1Order
#7Rubber Tube Assembly—1Order
#8Connector—1Order
#9Vibrator Valve Set—1Order
Gear Motor—1Order
Connector—3Order
Rubber Tube Assembly—1Order
Rubber Tube Assembly—1Order
Rubber Tube Assembly—1Order
#1Hydraulic fittings—2Order
#2Mecanismo de dirección/Steering gear—1Order
#3Hydraulic fittings—2Order
#4Hose assembly——Order
#5Hose assembly——Order
#6Hose assembly—1Order
#7Hose assembly—1Order
#8Hydraulic fittings—2Order
#9Steering cylinder—1Order
#1OCode to confirmHose assembly—1Order
#11Radiator—1Order

Breakdowns in the same family

Category: Compaction · All breakdowns

WhatsAppGet a quote
