Official SIMAQ breakdown

Parts for SQRPTRC L202

172 parts for the Trench roller SQRPTRC L202, with SIMAQ code, quantity per machine and spec where the manual provides it. Parts marked “Order by item” are ordered with their breakdown item number: support finds them.

Parts
172
Wear items
34
Manual
SQRPTRC202OM-2026-A
Order with the formFull manual (PDF)See the machine

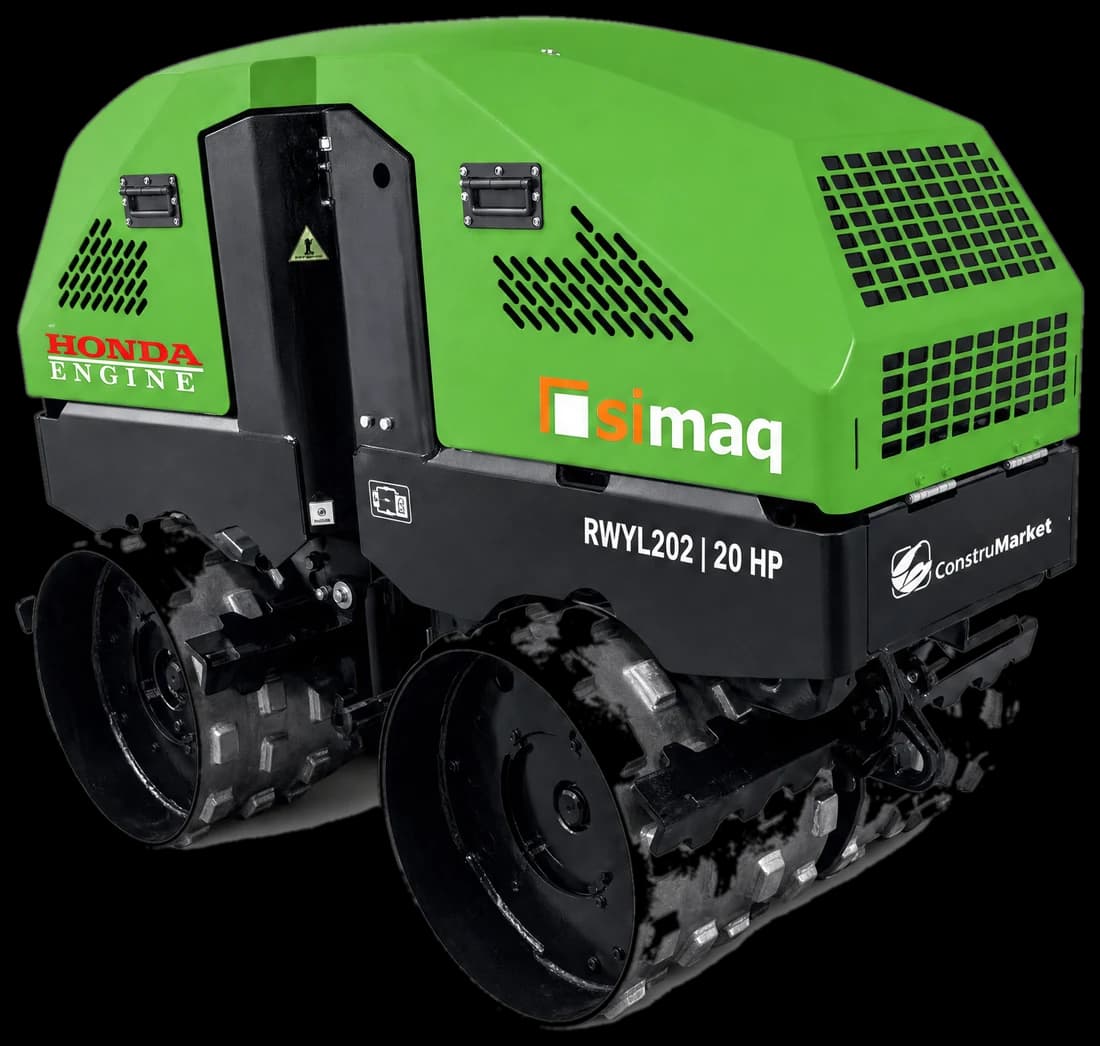

Trench roller SQRPTRC L202

2 codes in this breakdown are flagged with ⚠ because the official manual repeats them or types letter O instead of zero. Confirm with support before ordering.

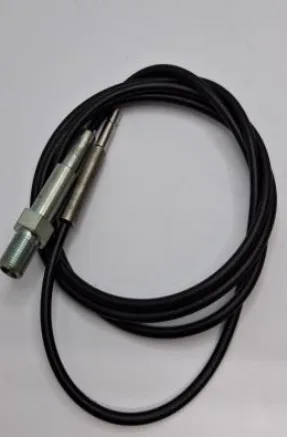

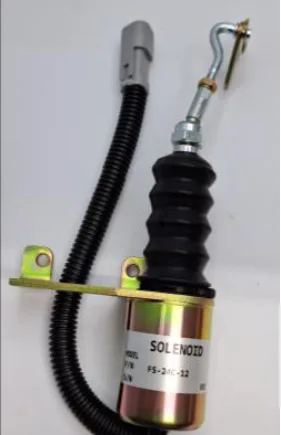

SQRPTRC L202 parts with photos

The most-ordered parts, photographed in our warehouse. Compare before you order.

Parts for its Honda GX690 engine (4 parts with photos) →

Engine maintenance

Honda GX690

The engine consumables replaced at every service. The spark plug is listed by its manufacturer reference, not the engine part number, because that one varies by variant.

Spark plug
ZFR5F (NGK)
Plug gap
0,7–0,8 mm
Engine oil
SAE 10W-30, API SJ o superior
Oil capacity
1,5 L · 1,7 L si se cambia el filtro
Valve clearance (cold)
Intake 0,08 ± 0,02 mm · Exhaust 0,10 ± 0,02 mm
Engine parts catalogEngine manual

For any other engine part, have the code stamped on the engine plate at hand: the same model has variants and part numbers differ between them. Send us that code and we'll confirm the part.

Exploded diagram

The number on the drawing is the same # in the table.

172 parts in the official breakdown.

SIMAQ codePartQtySpecOrder
#1Rear part assembly——Order
#2, 35M10 NUT——Order
#4, 27, 30, 37M10Flat washer——Order
M10Bolt——Order
#6Retainer——Order
#7M6Flat washer——Order
#8M6Spring washer——Order
#9M6Bolt——Order
Order by item#10, 24, 33Copperdirectinjectionoilcup——Order
#11Hinge pin——Order
Order by item#12, 16Steering support ring——Order
Order by item#13, 15Circlip for hole——Order
#14Radial spherical plain bearings——Order
Order by item#17, 23Oil seal——Order
Order by item#18, 22Radial spherical plain bearings——Order
Order by item#19, 21Shaft cap——Order
#20Hinge——Order
Order by item#28, 29Hinge shaft——Order
#36Lock plate——Order
#40M16Bolt——Order
#41Code to confirmM16 Flat washer——Order
#1Reversing cylinder hinge assembly——Order
#2Steering cylinder——Order
#3Radial spherical plain bearings——Order
#4Galvanized flat washer——Order
#5, 13, 19, 23, 32, 33M8Bolt——Order
#6M5Bolt——Order
#7M5Flat washer——Order
#8Rubber handle——Order
#9Rear frame assembly——Order
#10, 37, 40, 56M8 nut——Order
#11,15,17,22,31,34,35,38M8Flat washer——Order
#12Shock absorber for cover——Order
#14, 18, 36, 39M8Spring washer——Order
#16Hydraulic oil tank assembly——Order
#20Fuel tank assembly——Order
#21Receiver fixed plate——Order
#24M6 nut——Order
#27Receiver——Order
#30Rear cover assembly——Order
Left plate for valve box——Order
Valve box——Order
Right plate for valve box——Order
Lock——Order
M16Bolt——Order
M16 Washer——Order
Order by item#53Shock absorber——Order
Order by item#54Shock absorber——Order
#1Fuel tank assembly——Order
#2Fuel tank cap——Order
#3M5Flat washer——Order
#4M5Bolt——Order
#5Fuel indicator——Order
#9Washing hole plate——Order
#10O seal——Order
#11Hexagonal socket end cap——Order
#1Hydraulic oil tank assembly——Order

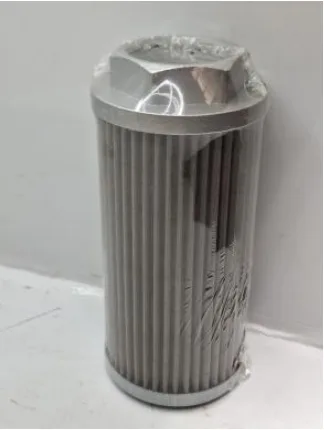

#2Tank strainer——Order
#3O seal——Order
#4Cover for tank——Order
#8M4Flat washer——Order
#9M4Spring washer——Order
#10M4Bolt——Order
#11Tank filter——Order

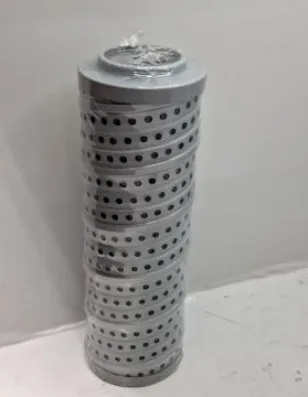

#15Oil return filter——Order
#16Oil level——Order
#17Level Bolt——Order
#1Start switch——Order
#2Fuel gauge——Order
#3Timer——Order
#4Voltmeter——Order
#5Indicating lights——Order
#8Engine plate——Order
#12M8*15 Gas Spring——Order
#13Bump shaft——Order
#14Cover assembly——Order
#16M10Spring washer——Order
#18Twin——Order
Upper cover handle——Order
The upper fixed block——Order
Rear cover assembly——Order
Charger——Order
Telescopic lock——Order
Handle——Order
Bolt lock——Order
#2, 11Code to confirmM16 French washer——Order
#3Extended wheel assembly——Order
#4M12 Bolt——Order
#5M12Spring washer——Order
#6M12Flat washer——Order
Order by item#7, 14Scraper assembly B——Order
#8Flat washer——Order
#9Wheel hub assembly——Order
#12Roller assembly——Order
Order by item#13, 15Scraper assembly A——Order
#3Driving reduce mechanism——Order
#4Vibration mechanism——Order
Order by item#5Junta/Seal——Order
Order by item#6Circlip for hole——Order
Order by item#7Oil seal plate——Order
Order by item#8Cylinder bearing——Order
Order by item#9Right support fixed plate——Order
Order by item#12Oil seal——Order
Order by item#13Flat washer——Order
Order by item#14Roller driving plate——Order
Order by item#15Nut washer——Order
Order by item#16Hexagon thin n ut——Order
#1Hexagon thin nut——Order
#2Nut washer——Order
#3Roller driving plate——Order
#4Flat washer——Order
#5Oil seal——Order
#6Leftsupportfixeddisc——Order
#7Cylinder bearing——Order
#8Circlip for hole——Order
#9Driving big gear wheel——Order
#10Drivinggearfixeddisc——Order
#13Hexagon Bolt——Order
#14Washer——Order
#15Flat washer——Order
#16Driving small gear wheel——Order
#17Transmission shaft——Order
#18Cycloid motor——Order
Gear motor——Order
#5O Seal——Order
Order by item#10, 23O Seal——Order
Hexagon 11——Order
#12Rear wheel——Order
#13Vibrationblockassembly A——Order
Order by item#14, 26O Seal——Order
#24Hexagon socket end cap——Order
#25Vibrationblockassembly B——Order
Order by item#1, 15, 20, 34Cylinder bearing——Order
Order by item#4, 10, 25, 31Circlip for hole——Order
Order by item#5, 26Right running loop block——Order
#7Right side vibration shaft——Order
Order by item#9, 30Left running loopblock——Order
Order by item#13, 23Flat washer——Order
Order by item#14, 21Vibration gear——Order
Order by item#16, 35Main vibration block——Order
#28Vibrations haft assembly——Order
#1Front Cover——Order
#2Shunt tube assembly——Order
#6Exhaust heat pipe——Order
#10Muffler——Order
#11Twin pump——Order
#12Pump seat——Order
#15Pulling plate——Order
Order by item#19, 23Cotter——Order
#20Pin shaft——Order
#21Support——Order
#24Generator——Order
#25Correa/Belt——Order
#26Engine coupling——Order
#27Engine coupling sleeve——Order
HONDAEngine——Order
Wind defend cover——Order
Oil radiator assembly——Order
#0M10Spring washer——Order
M12Bolt——Order
M12Spring washer——Order
M12Flat washer——Order
Engine fixed plate——Order
Cushion cylinder——Order
The Engine key——Order
Gear coupling——Order
Pumpcoupling——Order
Muffler front defend——Order
Muffler——Order
Muffler protect plate——Order
Muffler support——Order
Muffler support——Order
