SQRPTRC L202

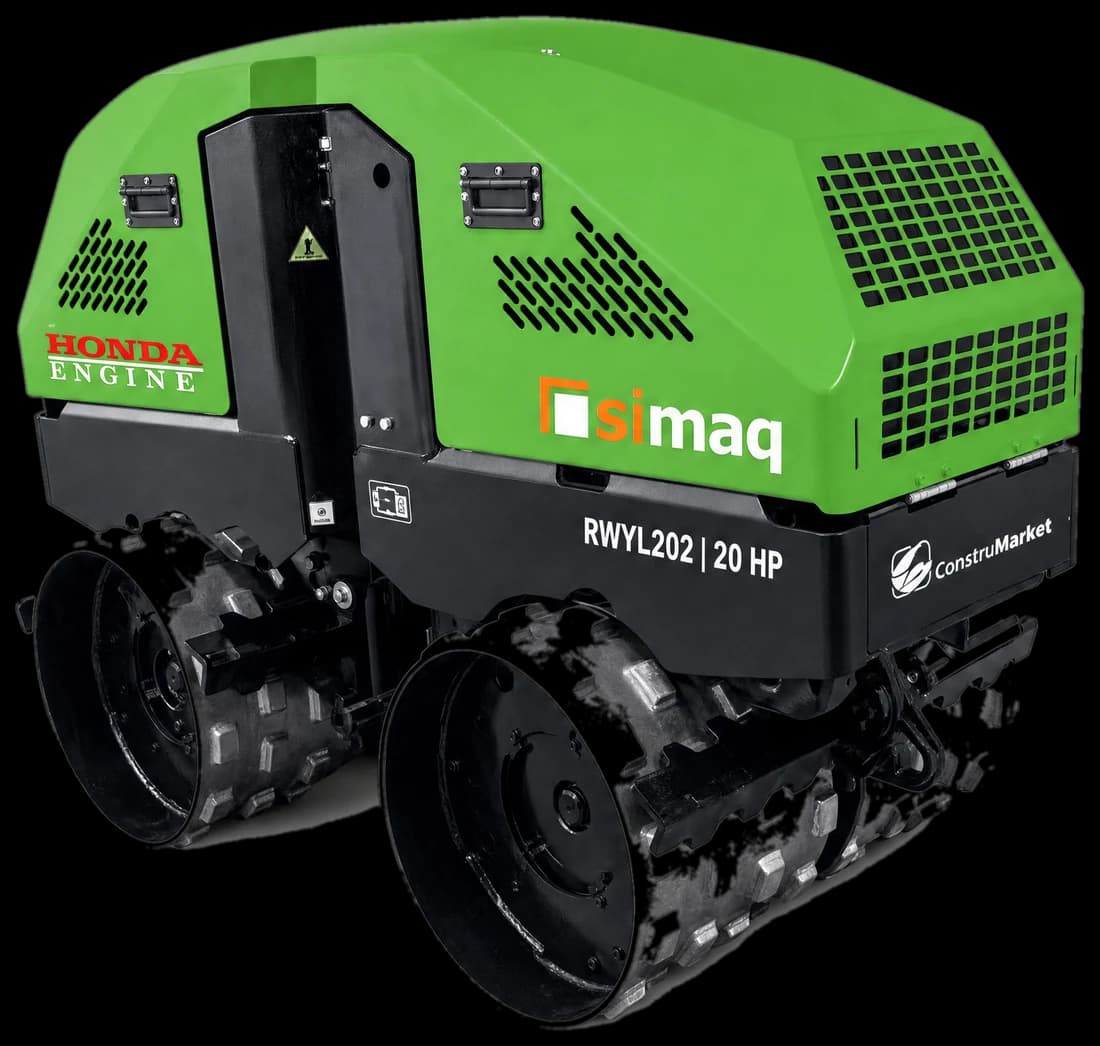

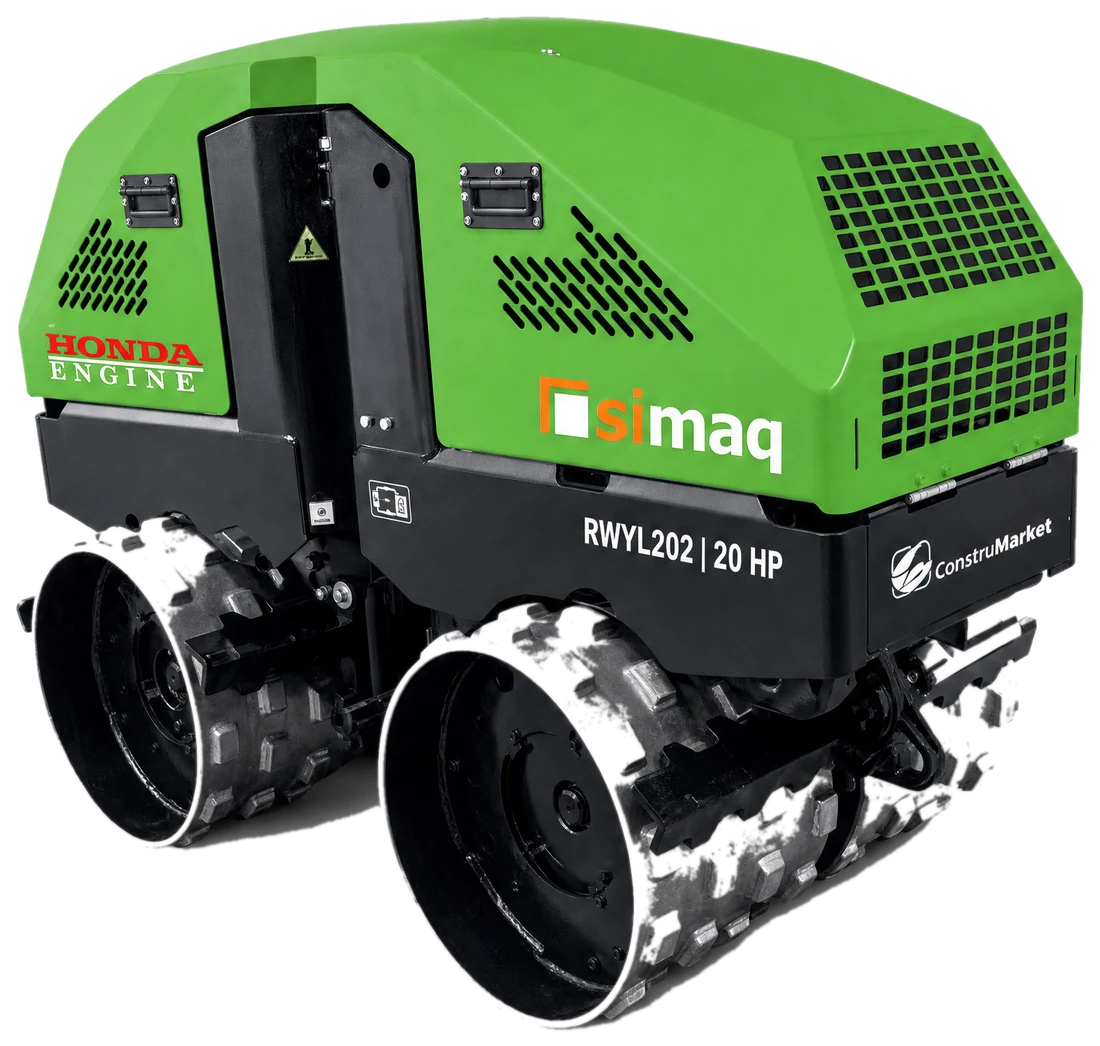

Trench roller SQRPTRC L202
Compacts the trench floor, remote-control ready.
EngineHONDA GX690 20HP / 3600 RPM
Compare with another machineParts available for this machineBuy it from ConstruMarket in El Salvador
SIMAQ advantages
- Exciter under each drum axle: more efficient transfer of compaction energy to the ground and greater stability
- Articulated joint: maneuvers around obstacles (manhole covers) without tearing up freshly compacted soil
- Remote control to compact trenches with the operator at a safe distance
Features
- Padfoot
- Articulated
Specifications
- Working capacity
- 1.53 TONELADAS
- Drum width
- 600MM/850MM
- Speed
- 1.2-2.4 KM/H
- Impact force
- 70 KN / 35KN

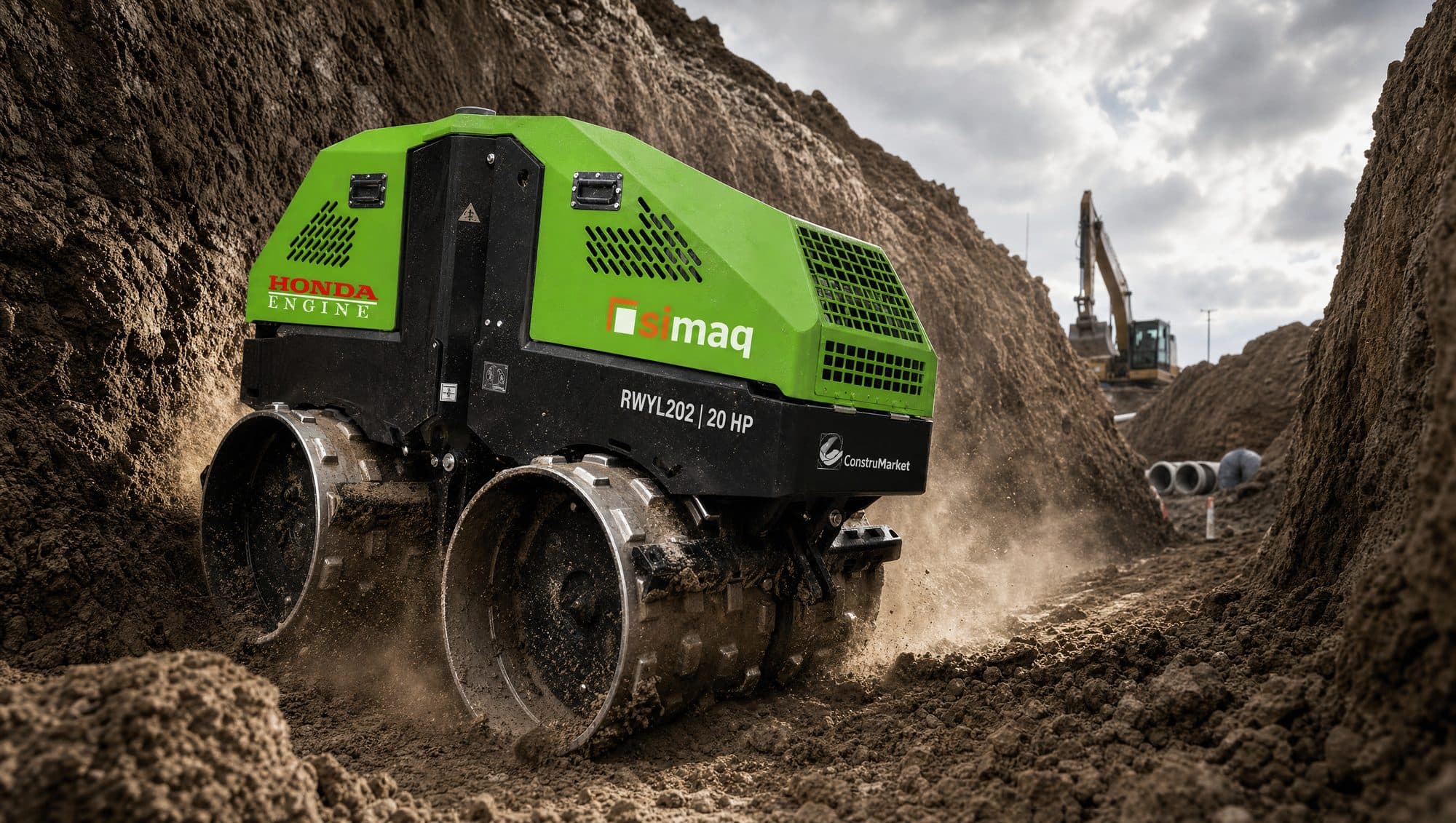

SIMAQ on the job
Proven on the real jobsite
Compacts the trench floor, remote-control ready.
In action
Watch this machine at work
L202 remote-control roller
Anatomy of the machine
Premium parts of the machine
Hover the dots —or tap them— to explore each component and why it matters.
Auto tour
5-minute training
5 minHow to use the trench roller
Remote-control padfoot trench roller: compacts the trench floor in cohesive soil with the operator at a safe distance.
Get your operator certified for free (Spanish)- 01
Charge the remote
Check the transmitter battery and that the infrared beam between remote and machine is clean and aligned.
- 02
Levels and drums
Engine and hydraulic oil. Padfoot lugs free of packed-in material between them.
- 03
Operate from outside the trench
Lower it by sling from the lifting point and drive from the surface. Never inside the trench with the machine.
- 04
Lifts and passes
20–30 cm lifts, 4–6 overlapping passes. The padfoot kneads cohesive soil from the bottom up.
- 05
Use the articulated joint
The articulated joint steers around covers and obstacles without tearing up fresh work. Smooth turns.
Do this
- Keep the machine in sight at all times.
- Respect the remote's range; don't drift too far.
- Clean the padfoot lugs at the end of the shift.
Avoid this
- Don't climb into the trench to adjust it while running.
- Don't use it as a finish smooth roller: it leaves lug marks.
- Don't operate with the trench shoring in poor condition.
Safety
- Hard hat, boots, gloves, glasses and hearing protection.
- Exclusion zone: no one else in front of the machine.
- Slope and shoring checked before any maneuver.
Calculate before you quote
Applications
What jobs this machine is built for.
- Road bases and sub-bases
- Trench and pipe backfill
- Paving and interlock
- Embankments and pads
- Asphalt finishing
Where this machine earns its keep
The same machine, told for your business: pick your industry and see the full case.
Buying guides
Clear up your questions before you quote
Guide · 7 min
How to choose the right compactor for your soil type
Granular or cohesive, base or trench: the rule is simple — the soil decides. A quick guide so you don't over-buy or redo the work.
Read Guide · 7 minWhich roller compactor should you choose by tonnage and job?
From 0.78 to 4.2 tonnes: the seven SIMAQ rollers side by side, with weight, drum width, force and engine, and which roller compactor fits sidewalks, trenches, streets or roadwork.
Read Guide · 6 minWhat is a jumping jack rammer and when should you use it?
The rammer compacts by impact: narrow trenches, next to pipe and walls, and clay soils. How to use it, when not to, and the SIMAQ SQ60 PRO 2.
ReadFrequently asked
Which compactor do I need for my soil?
Vibratory plate for granular soil, pavers and open areas; rammer (jumping-jack) for trenches and cohesive soils; roller for large areas and asphalt. Tell us the job and we'll recommend the machine.
Diesel, gasoline or electric?
Gasoline (Honda) for general, portable use; diesel for heavy duty and rollers; electric where emissions aren't allowed. All run world-brand engines.
Does it include warranty and parts?
Yes: 6-month SIMAQ warranty, parts and local after-sales at every distributor (ConstruMarket — CMARKET in Guatemala).
How do I get a quote?
Through the form or WhatsApp — reply during business hours. For volume, request a wholesale / container quote.
