Premium lineSQ60 PRO 2

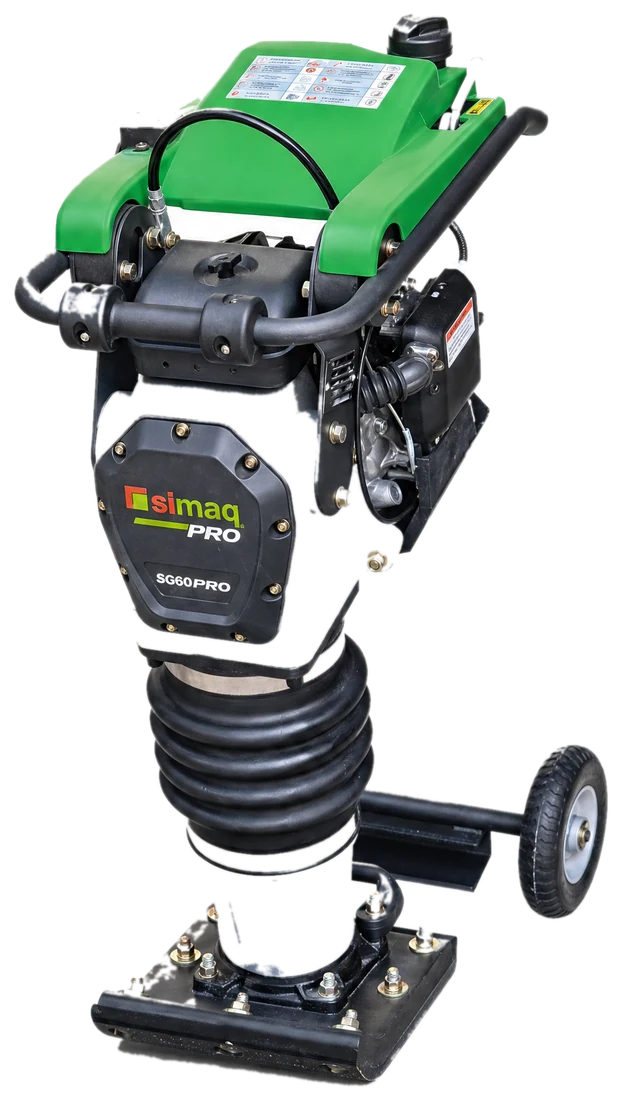

Vibratory compactor SQ60 PRO 2
Soil density where the big roller won't fit.
EngineHonda GXR 120 EPA Certified
Compare with another machineParts available for this machineBuy it from ConstruMarket in El Salvador
SIMAQ advantages
- Honda GXR 120 engine, EPA-certified
- Reinforced throttle with premium bearings
- Wheel kit for easy moving on site
- Pro-Club maintenance kit included
Features
- High frequency
- Compact & portable
Specifications
- Impact force
- 13.7 kN
- Shoe size
- 34 × 29 cm
- Weight
- 69 kg
- Vibrations/min
- 680 VPM
- Fuel tank
- 2.8 L

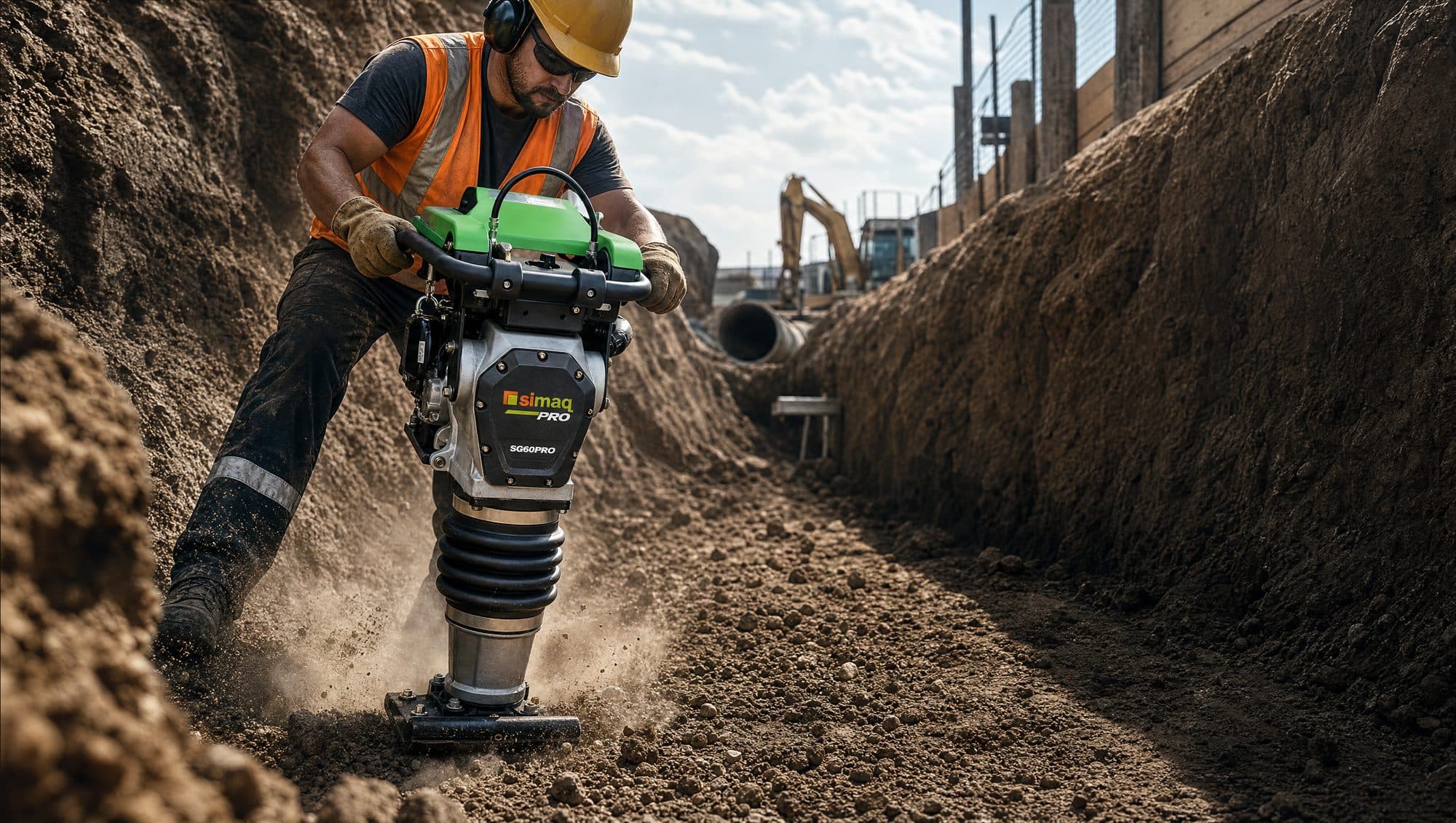

SIMAQ on the job
Proven on the real jobsite
Soil density where the big roller won't fit.
Anatomy of the machine
Premium parts of the machine
Hover the dots —or tap them— to explore each component and why it matters.
Auto tour
5-minute training
5 minHow to use the rammer (jumping-jack)
The rammer compacts by impact: the shoe jumps and kneads the soil. It's the machine for narrow trenches, backfill next to walls and pipe, and cohesive soil (clay, silt). If the soil is sand or gravel in an open area, a plate covers ground faster.
Get your operator certified for free (Spanish)- 01
Pre-start check
Engine oil and the base oil-bath level (through the sight glass), clean air filter and fuel. Shoe free of cracks and loose bolts.
- 02
Start at idle
Start and let it warm a few seconds at idle. The rammer shouldn't jump until you give it throttle.
- 03
Full throttle to work
At half throttle it bounces and gets unruly. Full throttle delivers all the impact force and it self-advances: you just steer.
- 04
Compact in lifts
Lifts of 20–30 cm max. If the soil is dry and loose, dampen it; if it's soaked, let it dry out: the shoe sticks and pumps mud.
- 05
Overlap your passes
3 to 4 passes per lift, overlapping each lane. Next to pipe, compact the sides first and go over the top only once there's enough cover.
Do this
- Keep the shoe flat against the ground, not tilted.
- If the soil is dry, bring it to optimum moisture: it compacts far better.
- Let it self-advance; your job is to steer, not push.
- If there's pipe in the trench, compact the sides before going over the top.
Avoid this
- Don't expect miracles on dry loose granular: cohesive soil is its job.
- Don't run it half-throttle — it bounces and punishes your wrists.
- Don't compact lifts over 30 cm: the bottom stays loose no matter how many passes.
- Never leave it running while laid on its side.
Safety
- Steel-toe boots, anti-vibration gloves and hearing protection.
- Keep feet clear of the shoe: the impact is unforgiving.
- In a trench, check the slope and shoring before climbing down.
Calculate before you quote
Applications
What jobs this machine is built for.
- Road bases and sub-bases
- Trench and pipe backfill
- Paving and interlock
- Embankments and pads
- Asphalt finishing
Where this machine earns its keep
The same machine, told for your business: pick your industry and see the full case.
Homebuilders & residential construction
Trench backfill and floor bases in cohesive soil: layer-by-layer compaction that never settles — the warranty claim that never comes.
All the gear for this industryMunicipalities & public worksCompacts the patch and water-line trench backfill: the impact blow that cohesive street soil demands.
All the gear for this industryEquipment rental housesThe rammer rules the trench rate: every plumbing contractor needs one and few buy it — they rent it.
All the gear for this industryCemeteries & memorial parksGrave backfill compacted in layers: the lawn is solid from day one, and the settling a family should never see never appears.
All the gear for this industryLandscaping, nurseries & green areasRetaining walls and planter backfill in clay soil: the impact a plate can't deliver, in the footprint of a shoe.
All the gear for this industryBuying guides
Clear up your questions before you quote
Guide · 7 min
How to choose the right compactor for your soil type
Granular or cohesive, base or trench: the rule is simple — the soil decides. A quick guide so you don't over-buy or redo the work.
Read Guide · 8 minParts of a plate compactor and a rammer: what each part does
The plate vibrates with an eccentric shaft driven by a belt; the rammer strikes with a connecting rod and springs. Each one's parts, how power gets from the engine to the ground and what to check and what wears.
Read Guide · 8 minHow to compact soil: step by step, by hand or with a machine
Clear it, bring it to the right moisture, spread thin lifts, make the passes and check before the next one. How thick each lift, how many passes with a plate or rammer, how to tell the moisture is right and how to know it's done.
ReadFrequently asked
Which compactor do I need for my soil?
Vibratory plate for granular soil, pavers and open areas; rammer (jumping-jack) for trenches and cohesive soils; roller for large areas and asphalt. Tell us the job and we'll recommend the machine.
Diesel, gasoline or electric?
Gasoline (Honda) for general, portable use; diesel for heavy duty and rollers; electric where emissions aren't allowed. All run world-brand engines.
Does it include warranty and parts?
Yes: 6-month SIMAQ warranty, parts and local after-sales at every distributor (ConstruMarket — CMARKET in Guatemala).
How do I get a quote?
Through the form or WhatsApp — reply during business hours. For volume, request a wholesale / container quote.
