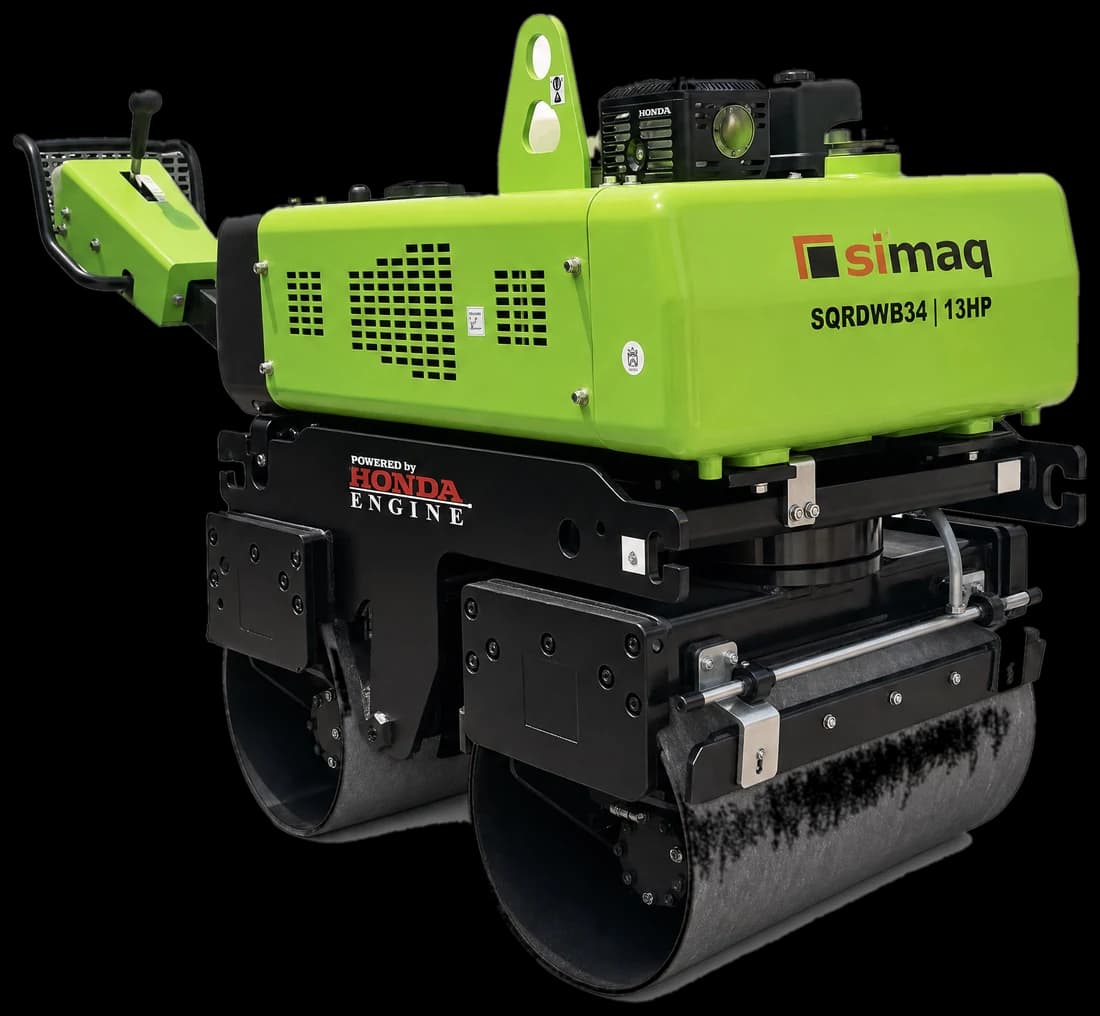

SQRDWB L34
Walk-behind double-drum roller SQRDWB L34
Double vibrating drum for asphalt and base.
View details

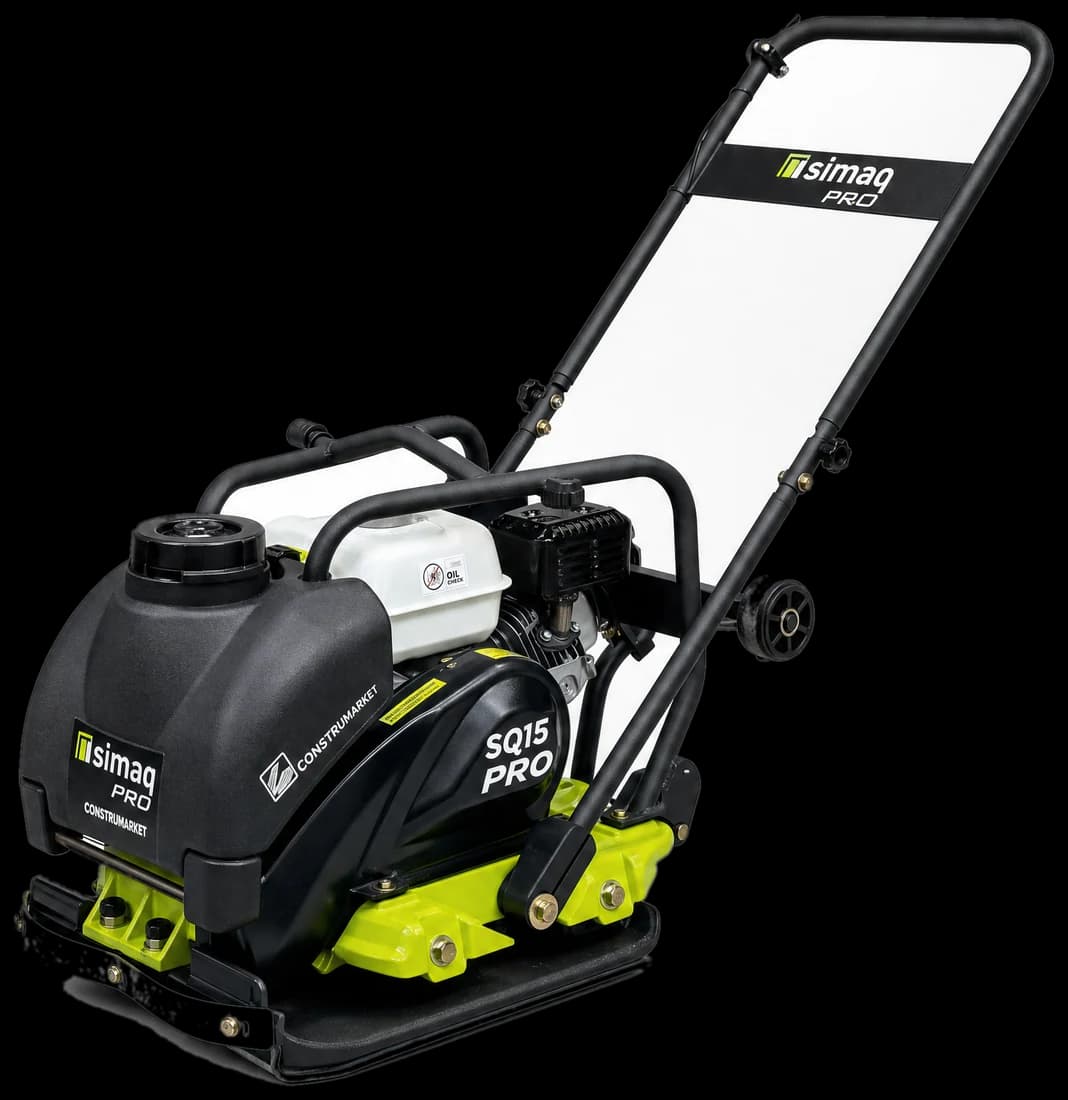

Premium lineSQ15 PRO
Plate compactor SQ15 PRO
Even base and paver compaction, tireless feed.
EngineHonda GX160
Compare with another machineParts available for this machineBuy it from ConstruMarket in El Salvador
SIMAQ advantages
- Built-in wheels for easy moving
- Water tank and asphalt sprinkler kit
- Includes special urethane mat for paver work
- Pro-Club maintenance kit included
Features
- Steel plate
- Stable travel
Specifications
- Power
- 3.6 kW (5.5 HP)
- Weight
- 90 kg
- Frequency
- 5,500 VPM
- Centrifugal force
- 13.0 kN
- Compaction depth
- 300 mm
- Travel speed
- 24 m/min
- Plate size
- 530 × 500 mm
- Water tank
- 12 L

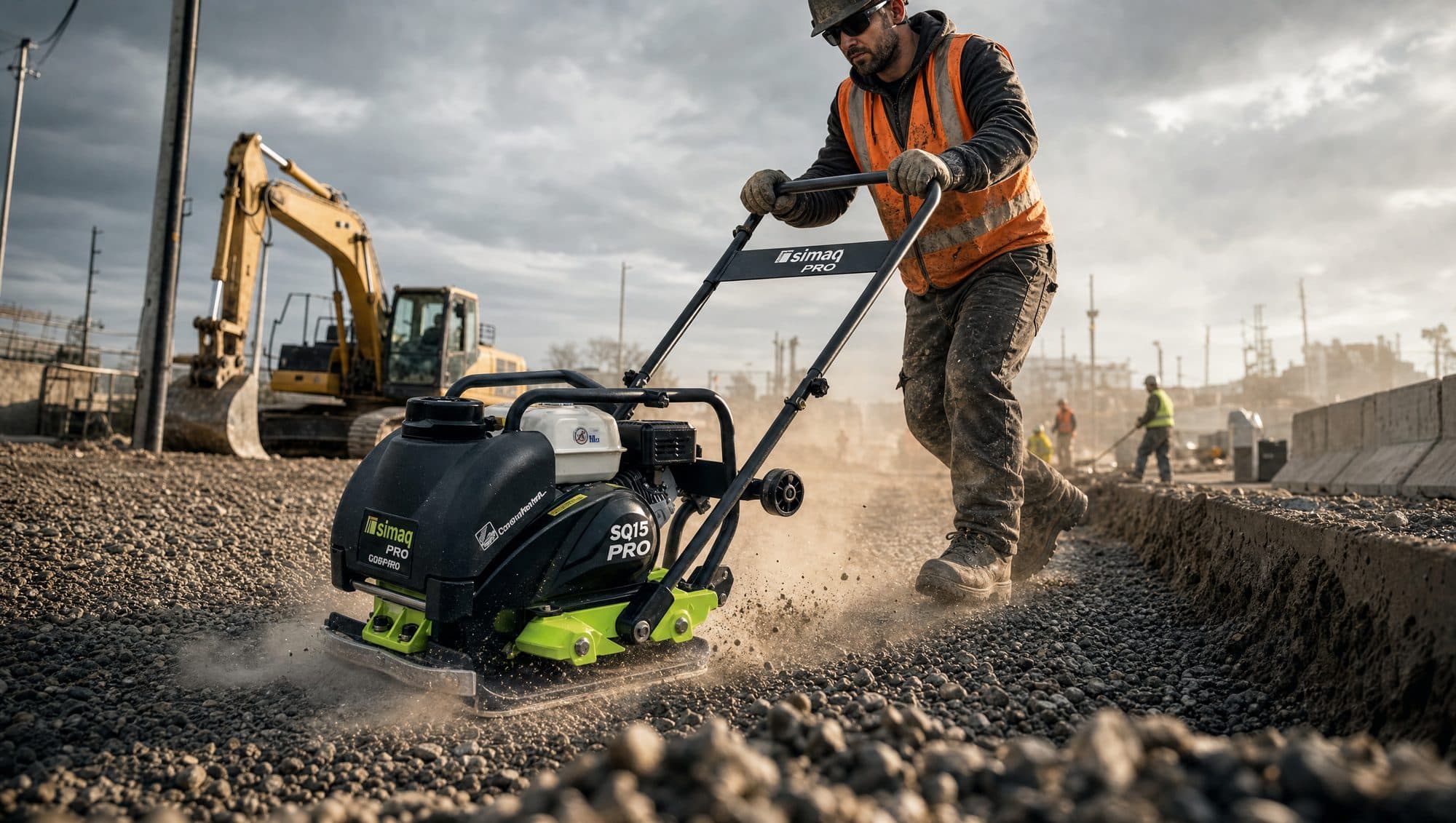

SIMAQ on the job
Proven on the real jobsite
Even base and paver compaction, tireless feed.
In action
Watch this machine at work
SIMAQ plate compactor
Shorts
SIMAQ plate compactor: specs and step-by-step start-up
Anatomy of the machine
Premium parts of the machine
Hover the dots —or tap them— to explore each component and why it matters.
Auto tour
5-minute training
5 minHow to use the vibratory plate
The plate compacts by high-frequency vibration: it settles sand, gravel and base grains so no voids are left. If the soil is granular or you're bedding pavers, it's your machine; for clay or the floor of a narrow trench, use the rammer.
Get your operator certified for free (Spanish)- 01
Pre-start check
Engine and exciter oil, clean air filter and no packed dirt on the plate. For asphalt, fill the water tank; for pavers, fit the urethane mat.
- 02
Prepare the lift
Spread 20–30 cm lifts. If the material is dry and loose, sprinkle it; if it's soaked, let it dry out: the plate sinks and pumps mud.
- 03
Start and go full throttle
Start at idle and go to full throttle before moving off. At half throttle the vibration loses force, the plate hops and doesn't compact.
- 04
Straight, overlapping lanes
Travel in straight lanes overlapping ~15 cm, from the edges toward the center, 3–4 passes per lift. When the plate starts to hop and leaves no mark, that lift is done.
- 05
Pavers and asphalt
On pavers, always with the urethane mat so you don't chip the blocks. On asphalt, open the sprinkler before you start: a dry plate picks up the mix and tears it.
Do this
- Always run at full throttle.
- Pavers → urethane mat and joint sand.
- On a slope → go straight up and down, never across.
- Make sure the plate isn't dragging large stones that hammer it.
Avoid this
- Don't use it on clay or silt: cohesive soil ignores vibration.
- Don't compact lifts over 30 cm: the top gets hard and the bottom stays loose.
- Don't leave it vibrating in one spot: it digs a hole and punishes the plate.
- On asphalt, never run with the sprinkler closed.
Safety
- Hearing protection, glasses, gloves and steel-toe boots.
- Firm grip on the handle; keep hands and feet from under the plate.
- On a slope, work top-to-bottom, never across it.
Calculate before you quote
Applications
What jobs this machine is built for.
- Road bases and sub-bases
- Trench and pipe backfill
- Paving and interlock
- Embankments and pads
- Asphalt finishing
Where this machine earns its keep
The same machine, told for your business: pick your industry and see the full case.
Equipment rental houses
The counter's most-requested machine: turns week after week, and its wear parts have public codes — restock without guessing.
All the gear for this industryHotels, resorts & propertiesPath and terrace pavers re-leveled zone by zone: compact the repaired panel and reopen the path the same day.
All the gear for this industryGolf courses & sports clubsClubhouse terrace pavers and new bunker bases: compacts small panels between tee times, and the area reopens the same day.
All the gear for this industryCemeteries & memorial parksWalkways, pavers and niche and ossuary bases: even compaction in short panels, between monuments, without invading neighboring plots.
All the gear for this industryLandscaping, nurseries & green areasTerraces, paths and fountain bases: the even compaction that prevents the wavy pavers a client notices in the first rain.
All the gear for this industryBuying guides
Clear up your questions before you quote
Guide · 7 min
How to choose the right compactor for your soil type
Granular or cohesive, base or trench: the rule is simple — the soil decides. A quick guide so you don't over-buy or redo the work.
Read Guide · 8 minParts of a plate compactor and a rammer: what each part does
The plate vibrates with an eccentric shaft driven by a belt; the rammer strikes with a connecting rod and springs. Each one's parts, how power gets from the engine to the ground and what to check and what wears.
Read Guide · 8 minHow to compact soil: step by step, by hand or with a machine
Clear it, bring it to the right moisture, spread thin lifts, make the passes and check before the next one. How thick each lift, how many passes with a plate or rammer, how to tell the moisture is right and how to know it's done.
ReadFrequently asked
Which compactor do I need for my soil?
Vibratory plate for granular soil, pavers and open areas; rammer (jumping-jack) for trenches and cohesive soils; roller for large areas and asphalt. Tell us the job and we'll recommend the machine.
Diesel, gasoline or electric?
Gasoline (Honda) for general, portable use; diesel for heavy duty and rollers; electric where emissions aren't allowed. All run world-brand engines.
Does it include warranty and parts?
Yes: 6-month SIMAQ warranty, parts in stock and local after-sales at every distributor (ConstruMarket — CMARKET in Guatemala).
How do I get a quote?
Through the form or WhatsApp — same business-day reply. For volume, request a wholesale / container quote.
Ready for a quote?
Tell us about the job and we'll build the package. Same-day reply.
Plate compactor SQ15 PRO · SQ15 PRO
Customer reviews
No reviews for this equipment yet. If you use it, tell others how it's going.
