SQRDWB L34
Walk-behind double-drum roller SQRDWB L34
Double vibrating drum for asphalt and base.
EngineHONDA GX390 13 HP / 3600 RPM
Compare with another machineParts available for this machineBuy it from ConstruMarket in El Salvador
SIMAQ advantages
- Front and rear water sprinkler so asphalt won't stick
- Hydraulic steering on the front drum
- Integrated control lever and lifting point for safe hoisting
- 68 cm drum with 17 kN centrifugal force: more output per pass
Features
- Double drum
- Walk-behind
Specifications
- Drum width
- 680MM
- Speed
- 0-3.5 KM/H
- Impact force
- 17 KN
- Hydraulic pump
- DANFOSS
- Weight
- 0.84 t
- Compaction frequency
- 65 Hz
SIMAQ on the job
Proven on the real jobsite
Double vibrating drum for asphalt and base.
5-minute training
5 minHow to use the walk-behind roller
The roller compacts in wide lanes and leaves a smooth surface: that's why it's used on base, sub-base, walkways, parking lots and asphalt patching. The walk-behind fits where a big roller won't; for a whole street, a ride-on is the better fit.
- 01
Check and refill
Engine, hydraulic and fuel levels. Fill the water tank and confirm spray on both drums.
- 02
Start with vibration off
Position the machine, bring the engine to full throttle, and only then engage vibration (it won't kick in at low rpm). Move the travel lever smoothly.
- 03
First pass depends on the material
On asphalt, the first pass goes without vibration to bed the mix; then vibrate to densify. On granular base, you can vibrate from the first pass.
- 04
Overlap a third of the drum
Each lane covers a third of the previous one. Roll forward and back on the same line at a steady speed for an even finish.
- 05
Kill vibration before stopping, finish static
Switch vibration off before braking or reversing. To finish, make one pass without vibration to erase marks and leave a smooth surface.
Do this
- Keep the sprinkler open on asphalt so it won't stick.
- Work at a steady speed: not crawling, not racing.
- If the soil is clay → use a padfoot roller or a rammer: a smooth drum won't knead cohesive soil.
- Use the lifting point to load and unload it.
Avoid this
- Don't leave it vibrating stationary on asphalt: it dents it.
- Don't vibrate near a slab, pipe or structure without assessing.
- Don't roll asphalt with the water tank empty.
- Don't forget the brake when parking on a slope.
Safety
- Boots, gloves, glasses and hearing protection.
- Mind your feet: the drum doesn't stop on a dime.
- Watch the handle pinch point on turns.
Calculate before you quote
Applications
What jobs this machine is built for.
- Road bases and sub-bases
- Trench and pipe backfill
- Paving and interlock
- Embankments and pads
- Asphalt finishing
Where this machine earns its keep
The same machine, told for your business: pick your industry and see the full case.
Golf courses & sports clubs
Re-leveled cart paths and walkways: a 780 kg double-drum roller — compacts the path without cracking it or marking the turf edges.
All the gear for this industryLandscaping, nurseries & green areasLong walkways and park bike paths: 780 kg of double drum covering linear meters without punishing the planted edges.
All the gear for this industryBuying guides
Clear up your questions before you quote
Guide · 7 min
How to choose the right compactor for your soil type
Granular or cohesive, base or trench: the rule is simple — the soil decides. A quick guide so you don't over-buy or redo the work.
Read Guide · 8 minHow to compact soil: step by step, by hand or with a machine
Clear it, bring it to the right moisture, spread thin lifts, make the passes and check before the next one. How thick each lift, how many passes with a plate or rammer, how to tell the moisture is right and how to know it's done.
Read Guide · 6 minHow much does a plate compactor cover? Square metres per hour, with your numbers
The SQ15 PRO plate compacts about 143 m² per hour of finished lift in sand or gravel (4 passes), and about 114 m²/h in mixed soil. Where the number comes from, how to do your own maths and when to step up to a roller.
ReadFrequently asked
Which compactor do I need for my soil?
Vibratory plate for granular soil, pavers and open areas; rammer (jumping-jack) for trenches and cohesive soils; roller for large areas and asphalt. Tell us the job and we'll recommend the machine.
Diesel, gasoline or electric?
Gasoline (Honda) for general, portable use; diesel for heavy duty and rollers; electric where emissions aren't allowed. All run world-brand engines.
Does it include warranty and parts?
Yes: 6-month SIMAQ warranty, parts and local after-sales at every distributor (ConstruMarket — CMARKET in Guatemala).
How do I get a quote?
Through the form or WhatsApp — reply during business hours. For volume, request a wholesale / container quote.
Ready for a quote?
Tell us about the job and we'll build the package. A rep replies during business hours.

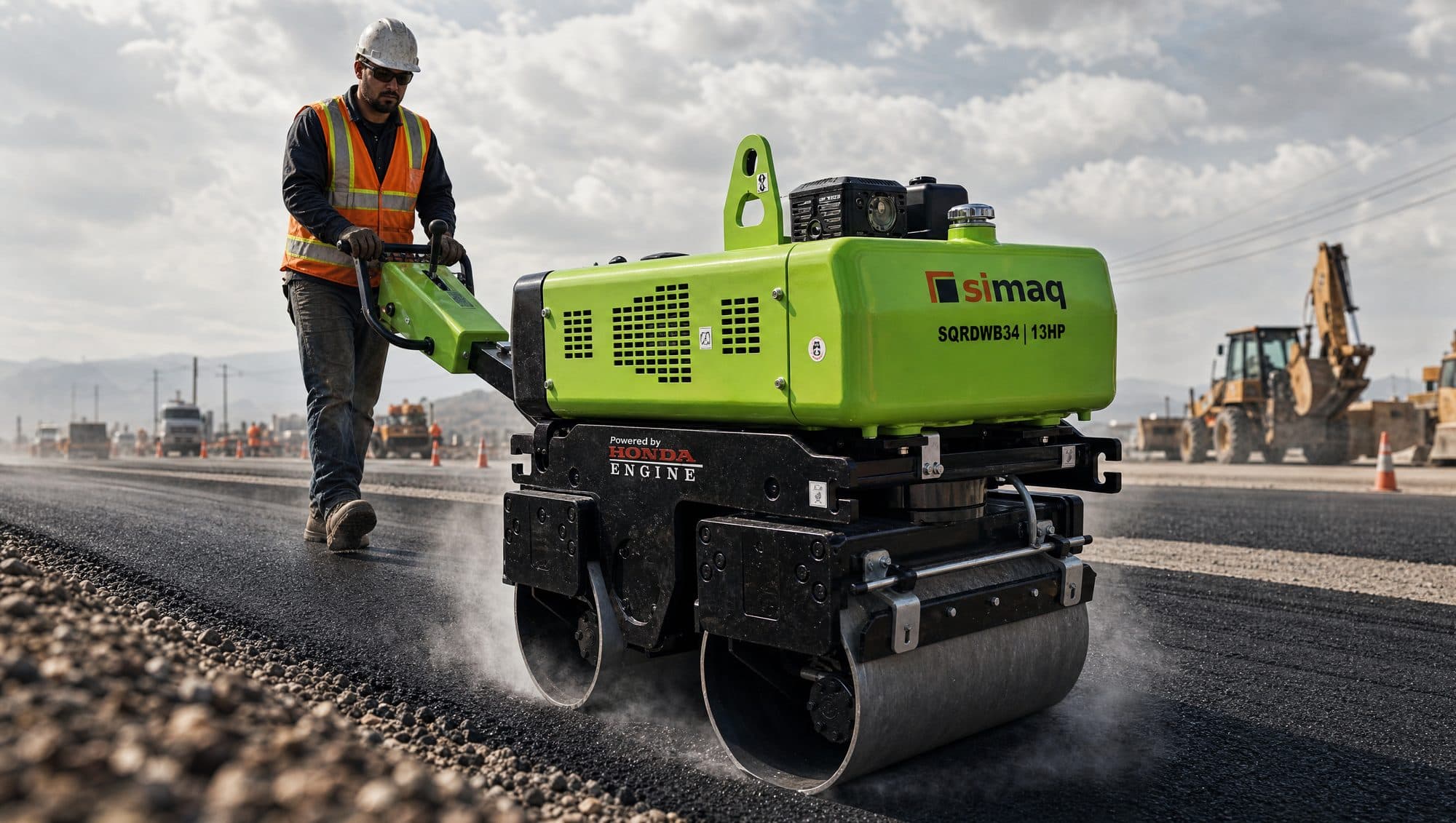

Walk-behind double-drum roller SQRDWB L34 · SQRDWB L34
