SQRDWB L34
Walk-behind double-drum roller SQRDWB L34
Double vibrating drum for asphalt and base.
View details

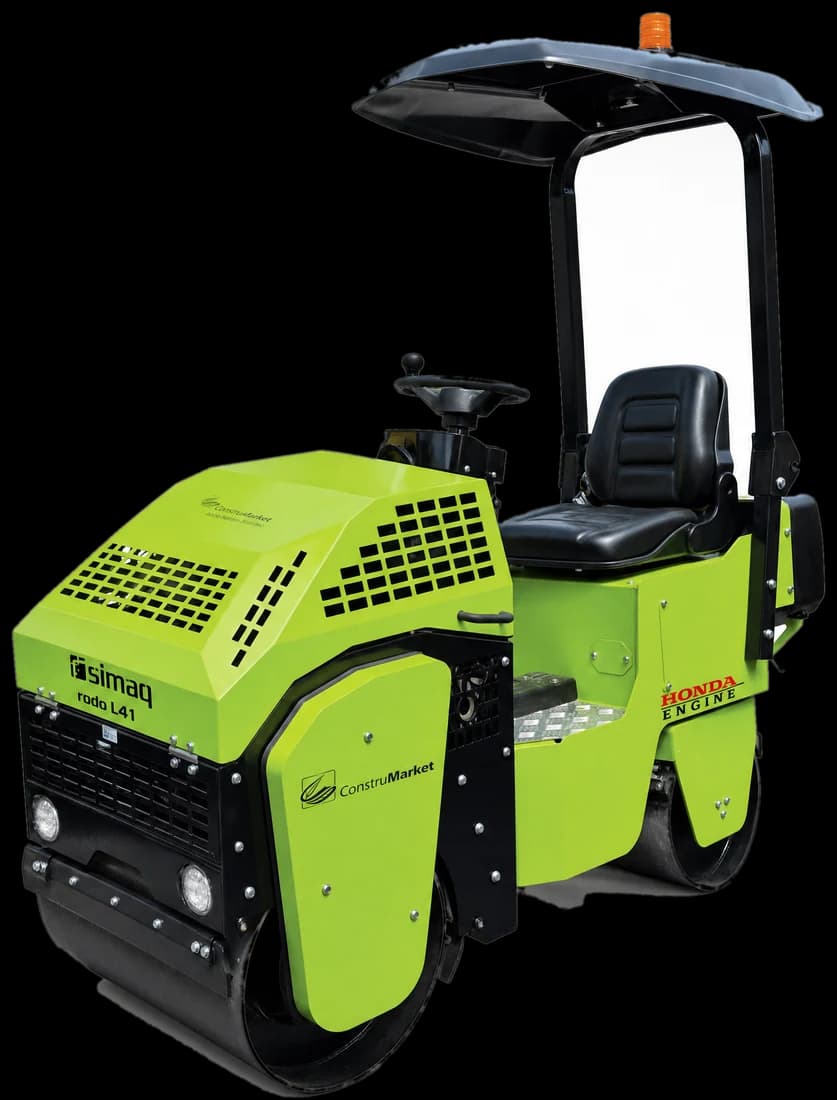

SQRD L41
Ride-on vibratory roller SQRD L41
Ride-on power for embankment and roadwork.
EngineHonda GX390 · 13 HP
SIMAQ advantages
- ROPS safety canopy with roll bar
- Strobe beacon and LED front lights as standard
- 70 cm drum, 20 kN and 15% articulation
Features
- Ride-on
- Smooth drum
Specifications
- Drum width
- 700 mm
- Centrifugal force
- 20 kN
- Speed
- 0-3.5 km/h
- Weight
- 0.8 t
- Articulation
- 15%

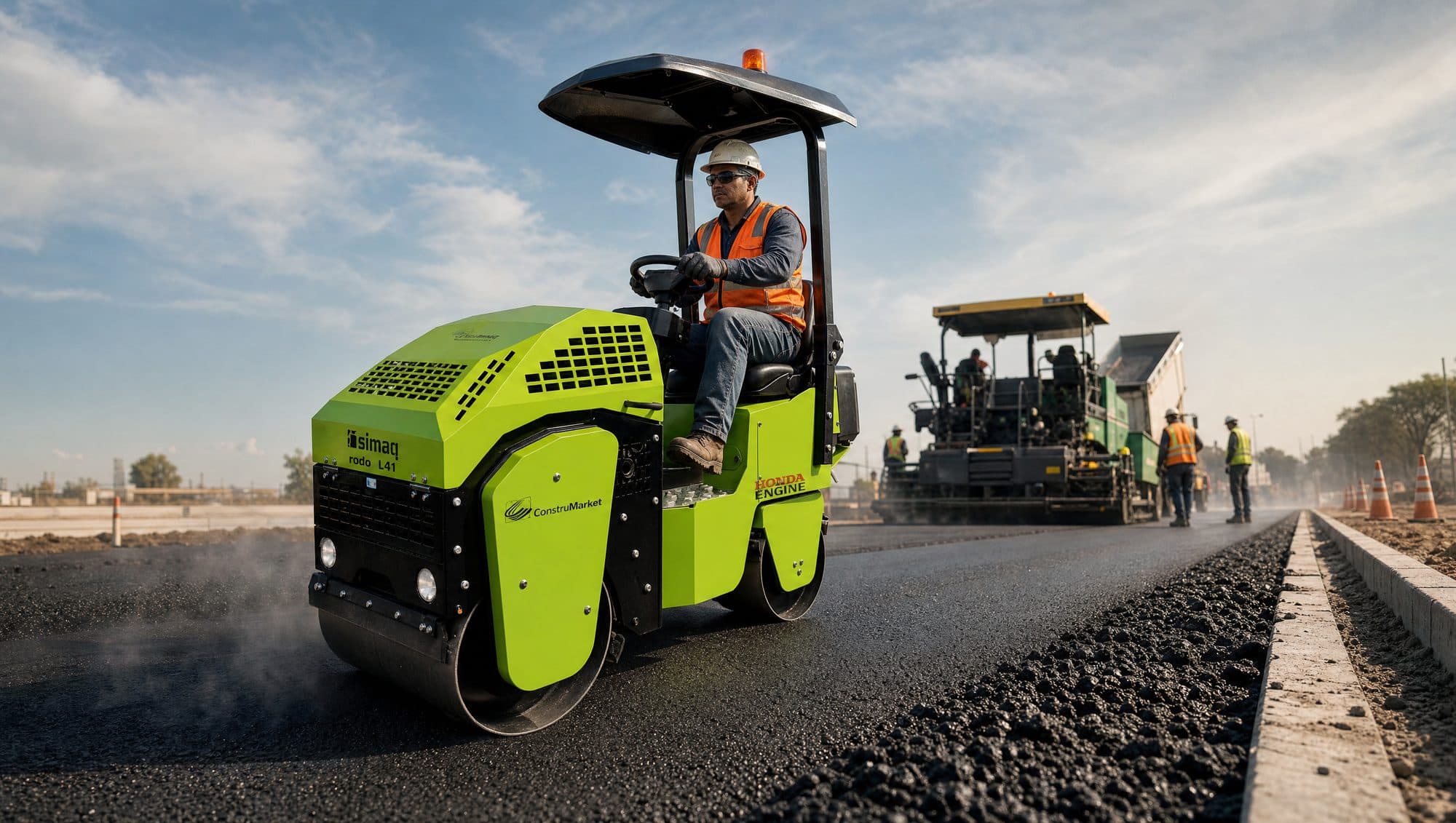

SIMAQ on the job
Proven on the real jobsite
Ride-on power for embankment and roadwork.
5-minute training
5 minHow to use the ride-on roller
Ride-on roller: weight and vibration for roadways, embankments and asphalt. Output per pass over large areas.
Training video
Coming soonIn the meantime, follow the step-by-step guide.
- 01
Walk-around inspection
Levels, leaks, drum and sprinkler condition. Seatbelt, horn and lights. Always mount facing in, three points of contact.
- 02
Rolling plan
Set the pattern: edges first, then low side to high side. On a curve, the inside lane first.
- 03
Asphalt: breakdown, intermediate, finish
A static breakdown pass, vibratory passes to densify while hot, and a final static pass to seal and erase marks.
- 04
Overlap and hold speed
~15 cm overlap between lanes. A steady walking speed: rushing leaves washboarding in the asphalt.
- 05
Kill vibration before stopping
Never stop with vibration on over asphalt: it leaves a dip. Switch off, then brake.
Do this
- Seatbelt always on; the machine has ROPS for a reason.
- Sprinkler open on asphalt, with the mix temperature under control.
- Smooth, gradual direction changes.
Avoid this
- Don't stop while vibrating on the hot mat.
- Don't descend slopes in neutral or coasting.
- Don't vibrate near structures or utilities without assessing.
Safety
- Seatbelt, hard hat, hi-vis vest and hearing protection.
- Traffic spotter and a signed zone on roadways.
- Respect the machine's maximum working grade.
Applications
What jobs this machine is built for.
- Road bases and sub-bases
- Trench and pipe backfill
- Paving and interlock
- Embankments and pads
- Asphalt finishing
Frequently asked
Which compactor do I need for my soil?
Vibratory plate for granular soil, pavers and open areas; rammer (jumping-jack) for trenches and cohesive soils; roller for large areas and asphalt. Tell us the job and we'll recommend the machine.
Diesel, gasoline or electric?
Gasoline (Honda) for general, portable use; diesel for heavy duty and rollers; electric where emissions aren't allowed. All run world-brand engines.
Does it include warranty and parts?
Yes: 6-month factory warranty, parts in stock and local after-sales at every distributor (ConstruMarket — CMARKET in Guatemala).
How do I get a quote?
Through the form or WhatsApp — same business-day reply. For volume, request a wholesale / container quote.
Ready for a quote?
Tell us about the job and we'll build the package. Same-day reply.
