Parts for SQURBAN1500

387 parts for the Hydraulic dumper SQURBAN1500, with SIMAQ code, quantity per machine and spec where the manual provides it.

Parts
387
Wear items
62
Manual
SQDPY15TOM-2026-A
Order via WhatsAppFull manual (PDF)See the machine

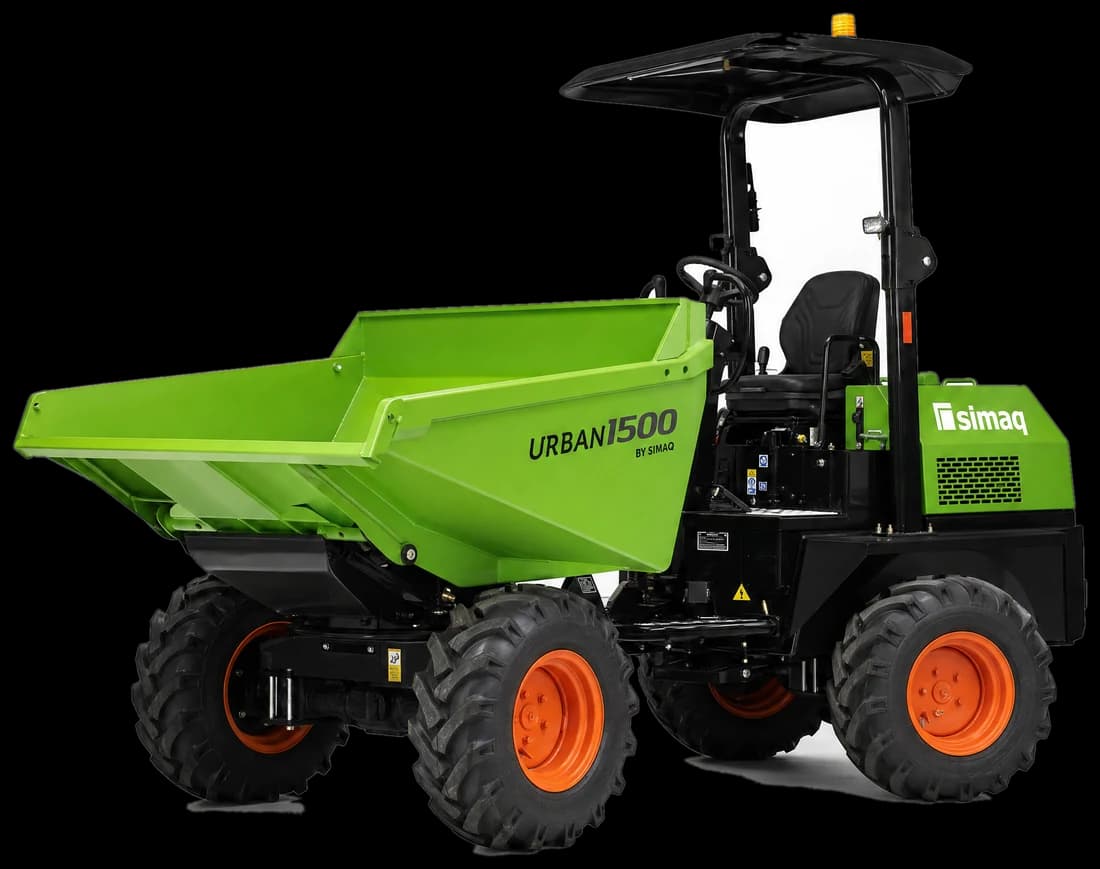

Hydraulic dumper SQURBAN1500

Engine maintenance

Yanmar 3TNV76

The engine consumables replaced at every service. Filters are listed with the reference given in the machine's manual.

Air filter
P821575 (Donaldson)
Oil return filter
YFJ010201
Suction filter
YFJ070103 (WU-100×80J)
Engine oil
API CH-4 o superior
Oil capacity
3,4 L máx.
Hydraulic oil
VG46 antidesgaste

For any other engine part, have the code stamped on the engine plate at hand: the same model has variants and part numbers differ between them. Send us that code and we'll confirm the part.

Exploded diagram

The number on the drawing is the same # in the table.

387 parts in the official breakdown.

SIMAQ codePartQtySpecOrder
#1Front frame1—Order
#2Rear frame1—Order
#3Wheel assembly1—Order
#4Hopper bracket assembly1—Order
#5Hopper1—Order
#6Steering cylinder1—Order
#7Lifting cylinder2—Order
#8Seat mounting bracket assembly1—Order
#9Anti-tip frame assembly1—Order
#10Hydraulic oil tank1—Order
#1160AH battery1—Order
#12Rear engine cover1—Order
#13Power system1—Order
#14Fuel tank1—Order
#1Front Frame Assembly1—Order
#2Swing Cylinder1—Order
#3Hexagon Bolt M16*6516—Order
#4Flat Washer ф1616—Order
#5Hook1—Order
#6Limit Seat1—Order
#7Flat Washer ф124—Order
#8Hexagon Bolt M12*504—Order
#9Protective Cap1—Order
#10Blue Slotted Nut M201—Order
#11Flat Washer ф201—Order
#12Top Cover Plate1—Order
#13Hinged Pull Plate1—Order
#14Spherical Plain Bearing GEZ31ES - 2RS1—Order
#15Upper hinge shaft1—Order
#16Elastic washer φ126—Order
#17Flat washer φ126—Order
#18External hexagon bolt M12*406—Order
#19Flat washer φ126—Order
#20External hexagon bolt M12*306—Order
#21Oil pipe guard plate1—Order
#22Flat washer φ201—Order
#23Lower hinge shaft1—Order
#24Spherical joint bearing GEZ31ES - 2RS1—Order
#25Top cover plate1—Order
#26Flat washer ф104—Order
#27External hex bolt M10*254—Order
#28Front steering pin1—Order
#29Nylon tube clamp1—Order
#30Pressing plate1—Order
#31External hex bolt M8*802—Order
#32Left and right mudguards2—Order
#33Flat washer ф84—Order
#34External hex bolt M8*404—Order
#35Right lamp cover1—Order
#36LED lamp LN - 53242—Order
#37External hex bolt M8*408—Order
#38Flat washer φ88—Order
#39XHL1- 2.1 turn signal2—Order
#40Flat washer φ44—Order
#41External hex bolt M4*254—Order
#42Nut M44—Order
#43Left lamp cover1—Order
#1Transition Plate1—Order
#2Flange Shaft1—Order
#3Skeleton Oil Seal1—Order
#4Rotary Pressure Oil Seal1—Order
Grade 8.8 Zin 616—Order
#7French Style12—Order
#8Upper Bearing Cover1—Order
#9O- Ring2—Order
#10Cylinder Block Assembly1—Order
#11Limit Block1—Order
Perno de cabeza cilíndrica hexagonal interna acabado azul 122—Order
#13Internal Hex Oil Port Plug2—Order
#14Lower Bearing Cover1—Order
#15French Style Zinc12—Order
#16Grade 8.8 Zin12—Order
#17End Cover1—Order
#18O- Ring1—Order
#19Grade10—Order
#20Pressure cover1—Order
#21Blue disc washer1—Order
#22Rotary oil seal1—Order
#23Tapered roller bearing1—Order
#24Straight-through end connector2—Order
#25Hose assembly2—Order
#26Hose assembly2—Order
#27Straight-through end connector2—Order
#28Circumferential pin ф 6×162—Order
#29Piston block1—Order
#30Copper washer8—Order
#31Grade 8.8 blue external6—Order
#32Blue internal16—Order
#33Gasket4—Order
#34Seal4—Order
#35Seal pressure plate4—Order
#36Straight-through end connector2—Order
#37Hose assembly2—Order
#1Hopper bracket1—Order
#2Double tee block1—Order
#3Flat washer φ83—Order
#4Hex socket head bolt M8×553—Order
#5Bolt with neutral rubber shock-absorbing head2—Order
#6Flat washer φ122—Order
#7Nut M122—Order
#8Bolt with neutral rubber shock-absorbing head2—Order
#9Flat washer φ122—Order
#10Nut M122—Order
#11Lift lower pin2—Order
#12Flat washer φ82—Order
#13Hex bolt M8*202—Order
#14Hopper pin2—Order
#15Flat washer φ82—Order
#16Hex bolt M8*202—Order
#17Φ23*15/Three-layer composite lubricating shaft φ 20/φ23*152—Order
#18Pin2—Order
#19R-type pin φ42—Order
#1Hopper1—Order
#2Lifting upper pin shaft2—Order
#3Flat washer ф62—Order
#4External hexagon boltM6*252—Order
3426 φ42*2/Flanged three-layer composite lubricating 54—Order
#1Rear frame assembly1—Order
#2Hydraulic oil tank1—Order
#3Pull plate pin1—Order
#4Shock absorber support sleeve4—Order
#5Φ13/420N/Engine support shock absorber φ78×42/φ13/420N8—Order
#6Right side frame assembly1—Order
#7Brake valve1—Order
#8Flat washer φ62—Order
#9Hex bolt M6*452—Order
#10Flat washer φ124—Order
#11Hex bolt M12*304—Order
#12Cierre/Open/close door1—Order
#13Hex socket head bolt M12*1102—Order
#14Flat washer φ122—Order
#15Cl209 Hinge2—Order
#16Battery Shock Absorbing Pad1—Order
#1760AH Battery1—Order
#18Battery Pressing Plate1—Order
#19193/Hook M6×35/1932—Order
#20Flat Washer φ62—Order
#21Nut M62—Order
#22Stainless Steel Hinge 90×75×52—Order
#23Silencer1—Order
#24Silencer Mounting Plate1—Order
#25Flat Washer φ84—Order
#26External Hex Bolt M8*304—Order
#27Bumper1—Order
#28LED Tail Light ZL - 003 DC12V2—Order
#29Auxiliary Radiator Mounting Plate1—Order
White Plastic Auxiliary 301—Order
#31Fuel Tank1—Order
#32Flat Washer φ62—Order
#34Left Side Frame Assembly1—Order
#35Oil - Water Separator FS12401—Order
#36Flat Washer φ122—Order
#37Hex Socket Head Cap Screw M12*1102—Order
#38Flat Washer φ124—Order
#39Hex Bolt M12*304—Order
#40Buffer vacuum valve block1—Order
#41Flat washer φ62—Order
#42External hex bolt M6*802—Order
#43Steering pin shaft1—Order
#44Flush cut-off valve1—Order
#45Flat washer φ82—Order
#46External hex bolt M8*852—Order
#47Spherical plain bearing GEZ31ES - 2RS 1——Order
#48Bottom cover plate 1——Order
#49Flat washer φ12 6——Order
#50External hex bolt M12*40 6——Order
#1Blue-coated external hexagon bolt M10*452—Order
#2Flat washer φ102—Order
#3Gear pump1—Order
#4Blue-coated external hexagon bolt M12*502—Order
#5Flat washer φ122—Order
#6Electrically controlled variable pump1—Order
#7Oil pump mounting plate1—Order
#8Oil pump1—Order
#9Flat washer φ62—Order
#10External hexagon bolt M6*202—Order
#11Fuel coarse filter1—Order
#12Flat washer φ81—Order
#13External hexagon bolt M8*701—Order
#14Front support2—Order
#15Flat washer φ108—Order
#16Blue zinc-plated external hexagon bolt M10*458—Order
#17Left and right rear supports1—Order
#18Flat washer φ108—Order
#19Blue zinc-plated external hexagon bolt M10*458—Order
#20Radiator1—Order
#21Neutral rubber shock absorber2—Order
#22Right radiator mounting plate1—Order
#23Flat washer φ8 2——Order
#24M8 Nut 2——Order
#25External Hexagon Bolt M6*25 4——Order
#26Flat Washer φ6 4——Order
#27Plastic Clamp 1——Order
#28Left Fixing Plate of Radiator 1——Order
#29Metal Hose Assembly 1——Order
#30Flat Washer φ8 4——Order
#31M8 Nut 4——Order
#33Blue Oxide External Hexagon Bolt M10*45 2——Order
#34Flat Washer φ10 2——Order
#35Hydraulic Filter Mounting Plate 1——Order
#36Flat Washer φ10 4——Order
#37Blue Zinc - Plated Hex Bolt M10*45 4——Order
#38Hose Mounting Plate 1——Order
#39Hex Bolt M8*25 2——Order
#40Flat Washer φ8 2——Order
#41Fuel Fine Filter 1——Order
#42Yanmar Diesel Engine 3TNV80 -F 1——Order
#43Air Filter Frame 1——Order
#44Engine Air Filter 1——Order
#45Intake Pipe 1——Order
#1Fuel tank1—Order
#2Fuel sensor1—Order
#3Flat washer φ55—Order
#4External hex bolt M5*165—Order
#5Locking fuel tank cap1—Order
#6O-ring φ109×3.552—Order
#7Cleaning port cover plate2—Order
#8Flat washer φ616—Order
#9External hexagon bolt M6*2016—Order
#1Hydraulic oil tank1—Order
#2O-ring φ109×3.552—Order
#3Cleaning port cover plate1—Order
#4Flat washer φ616—Order
#5External hex bolt M6*2016—Order
#6Air filter EF21—Order
#7Hex socket bolt M4*204—Order
#8Flat washer φ44—Order
#9Air filter activity flange φ145×φ50×81—Order
#1080/Level gauge M10/801—Order
#11Flat washer φ102—Order
#12External hexagon bolt M10*452—Order
#1Tire4—Order
#2Wheel hub4—Order
#3Rim fixing plate4—Order
#4Travel motor1—Order
#5Drive axle assembly2—Order
#6Travel motor1—Order
#7G3/8/ED/φ10/G3/8/ED connector6—Order
#8G1/4/ED/φ10/G1/4/ED connector2—Order
#9G1/2/ED/φ10/G1/2/ED Connector2—Order
#10G1/2/ED/φ15/G1/2/ED Connector4—Order
#11G1/2/ED/φ12/G1/2/ED Connector4—Order
#12Hose Assembly6—Order
#13Hose Assembly2—Order
#14Hose Assembly4—Order
#15Hose Assembly4—Order
#16Hose Assembly2—Order
#1Steering rack cover1—Order
#3Joystick1—Order
#4Dust cover1—Order
#5Dust cover clamp plate1—Order
#6Multifunction valve1—Order
#7Right armrest assembly1—Order
#8Cover lock1—Order
#9Left armrest assembly1—Order
#10Air filter intake pipe1—Order
#12Danfoss controller1—Order
#13Pedal1—Order
#14Pedal assembly1—Order
#15Six-slot fuse box1—Order
#31Steering gear1—Order
Bolt neutral 332—Order
#34Controller mounting plate1—Order
#16Direction switch1—Order
#17Ground-side light1—Order
#18Rearview mirror bracket1—Order
#19Fastener 21—Order
Preheat 201—Order
#21Emergency stop button1—Order
#22Bushing4—Order
#23Rain cover connecting plate2—Order
#24Instrument cluster housing1—Order
Cubierta contra lluvia para la carcasa del panel de 251—Order
#26Instrument cluster1—Order
#27Rocker switch3—Order
Soft steering 28——Order
#29Steering column cover1—Order
#30Steering column1—Order
#1Travel Motor A24903T - MSE02 - 2- GE3 - R02 - 1120- YDJ01—Order
#2Travel Motor A24904U - MSE02 - 2- DE3 - R02 - 1120- DJ01—Order
#32EDOMDA3C/Connector GE12LR1/2EDOMDA3C4—Order
#4DN10- 2SN - M21593- 06- 184—Order
#52EDOMDA3C/GE10LR1/2EDOMDA3C2—Order
#6DN08- 2SN - M21593- 05- 162—Order
#7Front Frame Assembly1—Order
#8Swing Cylinder1—Order
#98EDOMDA3C/Connector GE10LR3/8EDOMDA3C2—Order
#10DN08- 2SN - M21593- 05- 162—Order
#118EDOMDA3C/ Connector GE10LR3/8EDOMDA3C2—Order
#12DN08- 2SN - M21593- 05- 162—Order
#134EDOMDA3C/Connector GE10LR1/4EDOMDA3C2—Order
#14DN08- 2SN - M21593- 05- 162—Order
#15Lifting cylinder2—Order
#164EDOMDA3C/Connector GE08LR1/4EDOMDA3C4—Order
#17DN6- 2SN - M21513- 04 - 164—Order
#18Double three-way block1—Order
#194EDOMDA3C/Connector GE08LR1/4EDOMDA3C2—Order
#20DN6- 2SN - M21593- 04 - 162—Order
#214EDOMDA3C/Connector GE08LR1/4EDOMDA3C4—Order
#22DN6- 2SN - M21513- 04 - 16 4——Order
#238EDOMDA3C/Connector GE10LR3/8EDOMDA3C 2——Order
#24DN08- 2SN - M21593- 05- 16 2——Order
#25Connector SV12LOMDA3C 1——Order
#26Connector SV28LOMDA3C 1——Order
#27DN10- 2SN - M21513- 06- 18 1——Order
#28DN08- 2SN - M21593- 05- 16 2——Order
#29Connector SV10LOMDA3C 2——Order
#30DN08- 2SN - M21593- 05- 16 2——Order
#31Steering cylinder 1——Order
#328EDOMDA3C/Connector GE10LR3/8EDOMDA3C 2——Order
#33DN8- 2SN - M21513- 05- 16 2——Order
#34Flush shut-off valve 1——Order
#35M14×1.5/ED/Connector φ12/M14×1.5/ED 4——Order
#36DN6- 2SN - M21513- 04 - 14 3——Order
#37Tee combination connector——Order
#38DN6- 2SN - M21593- 04 - 14 2——Order
#39DN10- 2SN - M21593- 06- 18 5——Order
#40Cushion vacuum valve block 1——Order
#41M18×1.5/ED/Connector φ10/M18×1.5/ED 2——Order
#42DN10- 2SN - M21593- 06- 18 1——Order
#43Tee middle combination connector φ12 3——Order
#44Hydraulic oil tank 1——Order
#45G3/4/ED/Connector φ22/G3/4/ED 1——Order
#46DN19- 1SN- M21593- 12- 30 1——Order
#47ED/Oil port plug M18×1.5/ED 2——Order
#48M18×1.5/ED/Connector φ12/M18×1.5/ED 1——Order
#49G3/8/ED/Connector φ10/G3/8/ED 1——Order
#50DN6- 2SN - M21593- 04 - 16 1——Order
#51G1/2/ED/Connector φ15/G1/2/ED 2——Order
#52DN12- 1SN- M21593- 08 - 22 2——Order
#53Connector GE22LM22×1.5EDOMDA3C 1——Order
#54DN19- 1SN- M21593- 12- 30 1——Order
#55Connector GE28LR1EDOMDA3C 1——Order
#56Elbow EW28LOMDA3C 1——Order
#57DN25 - 1SN- M21513- 16- 36 1——Order
#58Steering Gear XCEL45 - 160 1——Order
#592EDOMDA3C/Connector GE10LR1/2EDOMDA3C 4——Order
#60DN12- 1SN- M21593- 08 - 22 4——Order
#61G1/2/ED/Connector φ12/G1/2/ED 4——Order
#62DN10- 2SN - M21593- 06- 18 4——Order
#63DN10- 2SN - M21513- 06- 18 2——Order
#64Tee Connector ET15LOMDA3C 2——Order
#6515LOMDA3C/Reducer Connector RED18/15LOMDA3C 2——Order
#66Connector SV18LOMDA3C 1——Order
#67DN10- 2SN - M21513- 06- 18 2——Order
#68G1/4/ED/Connector φ10/G1/4/ED 2——Order
#69DN6- 1SN- M21593- 04 - 16 2——Order
#702EDOMDA3C/GE10LR1/2EDOMDA3C2—Order
#71DN8- 2SN - M21593- 05- 162—Order
#72A24823G - MSE02 - 2- DE3 - F03 - 1120- YDJ0 Travel Motor1—Order
#73A24824H - MSE02 - 2- GE3 - F03 - 1120- YDJ0 Travel Motor1—Order
#74G3/8/ED/Connector φ10/G3/8/ED4—Order
#75DN8- 1SN- M21513- 05- 164—Order
#76Directional Valve THD12 - DS - 02- LDW - 041—Order
#77G3/8/OR/Connector φ10/G3/8/OR4—Order
#78DN12- 1SN- M21593- 08 - 221—Order
#79DN8- 2SN - M21513- 05- 164—Order
#80Brake Valve1—Order
#81M14×1.5/ED/Connector φ10/M14×1.5/ED3—Order
#82DN6- 1SN- M21593- 04 - 163—Order
#836.3MPa/160LPM/10μm/Transmitter Pressure Line Filter PLF/6.3MPa/160LPM/10μm1—Order
#84Connector GE42LM36×2EDOMDA3C2—Order
#8512LOMDA3C/Connector RED28/12LOMDA3C2—Order
#86Tee Side Combined Connector φ151—Order
#87DN10- 2SN - M21593- 06- 183—Order
#88DN8- 1SN- M21513- 05- 161—Order
#8916UNFOMDA3C/Connector GE12L9/16UNFOMDA3C1—Order
#90Gear Pump1—Order
#91G1/2/ED/Connector φ10/G1/2/ED1—Order
#92DN8- 2SN - M21593- 05- 161—Order
#934EDOMDA3C/Connector GE22LR3/4EDOMDA3C1—Order
#94DN19- 1SN- M21513- 12- 30 1——Order
#95Electrically Controlled Variable Pump 1——Order
#9616UNDOMDA4C/Elbow WEE22L11/16UNDOMDA4C 1——Order
#97DN19- 2SN - M21513- 12- 30 1——Order
#9816- 12UNF/OR/Connector φ28 1~1/16- 12UNF/OR 1——Order
#99DN25 - 1SN- M21513- 16- 36 1——Order
#10016UNOMDA3C/Connector GE22L11/16UNOMDA3C 1——Order
#101DN19- 1SN- M21593- 12- 30 1——Order
#10216UNDOMDA3C/Elbow WEE18L11/16UNDOMDA3C 1——Order
#103Tee Connector EL18LOMDA3C 1——Order
#104Elbow EW18LOMDA3C 1——Order
#105DN16- 2SN - M21513- 10- 26 1——Order
#106DN16- 2SN - M21593- 10- 26 1——Order
#107Radiator 1——Order
#1082EDOMDA3C/Connector GE22LR1/2EDOMDA3C 2——Order
#109DN19- 1SN- M21513- 12- 30 2——Order

Breakdowns in the same family

Category: Material Handling · All breakdowns

WhatsAppGet a quote
