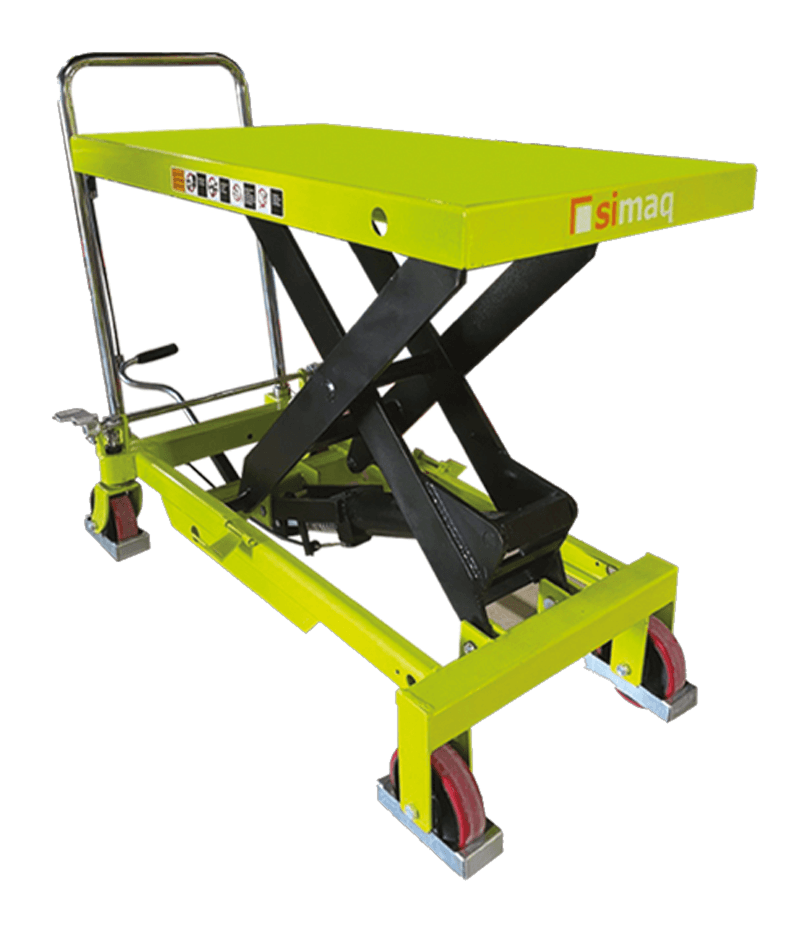

PTD1000 PRO
Lift table PTD1000 PRO
Raises the load to working height, effortlessly.
View details
Premium lineSQURBAN1500New

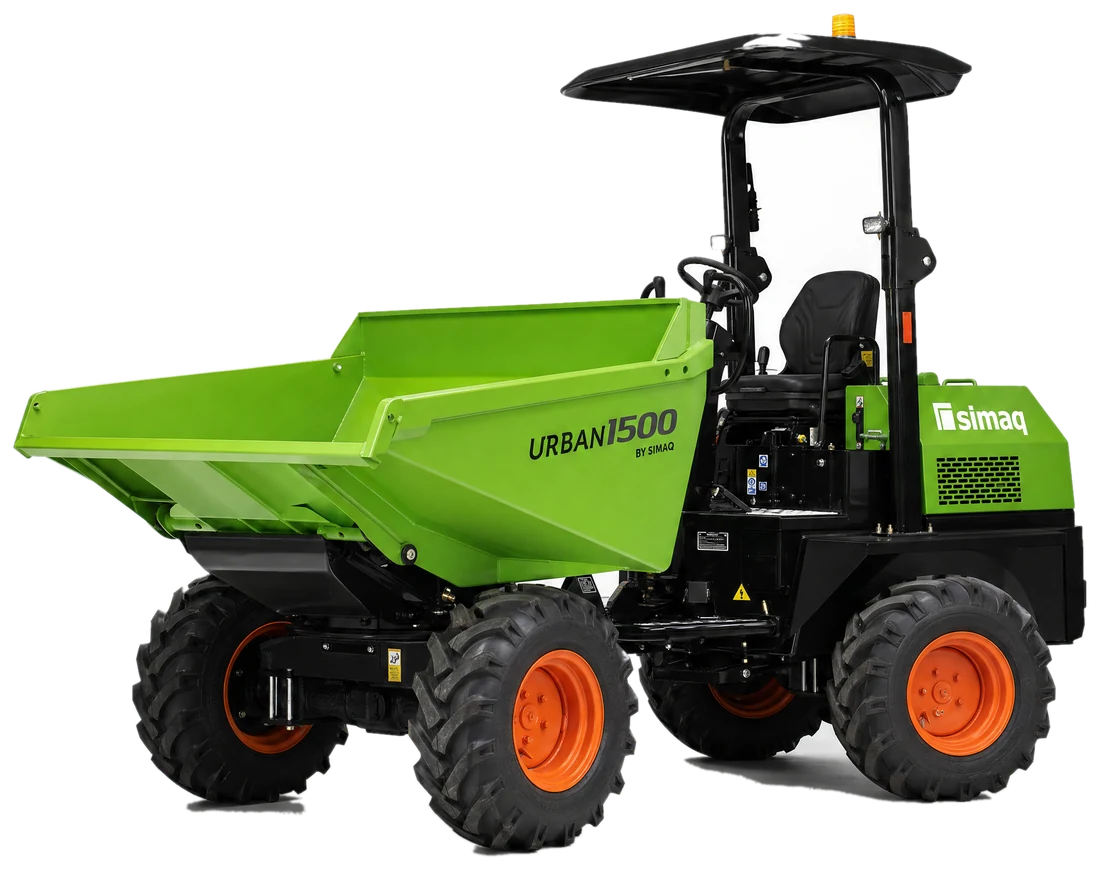

Hydraulic dumper SQURBAN1500
4×4 site dumper for moving material where trucks can't reach.
SQDPY15T SIMAQ VOLQUETE HIDRAULICO URBAN 1500 MOTOR YANMAR 3TNV80
EngineYanmar 3TNV76 · 18.7 kW · diésel
Compare with another machineParts available for this machineBuy it from ConstruMarket in El Salvador
Features
- 4×4 drive
- Hydraulic tip
- Skip swivels 180°
- ROPS frame with canopy
Specifications
- Payload
- 1,500 kg
- Skip capacity (struck)
- 829 L
- Skip capacity (heaped)
- 1,044 L
- Speed
- 14 km/h
- Power
- 18.7 kW
- Gradeability
- 40 %
- Turning radius
- 3,060 mm
- Transport weight
- 1,510 kg
- Fuel tank
- 30 L
- Dimensions (L × W × H)
- 3,240 × 1,450 × 2,400 mm
SIMAQ on the job
Proven on the real jobsite
4×4 site dumper for moving material where trucks can't reach.
Anatomy of the machine
Premium parts of the machine
Hover the dots —or tap them— to explore each component and why it matters.
Auto tour
5-minute training
5 minHow to use the dumper
The dumper takes over from the wheelbarrow when distance, volume or terrain are wearing the crew out. Used right it's simple: centered load, slow when loaded, and tip on firm ground away from trenches and slopes.
- 01
Daily check
Engine and hydraulic oil levels, leaks, brakes, tires and that the skip tips and returns freely. If you see a hydraulic leak, don't use it until it's fixed.
- 02
Load centered, no overfill
Center the weight in the skip, with no heap to spill on the way. Don't exceed the Urban 1500's 1,500 kg payload: with concrete or wet sand you reach the weight before filling the skip. Overloaded it gets unstable and punishes the brakes.
- 03
Slow when loaded
Loaded or on bad ground, walking pace. On a steep grade, drive up forward and come down in reverse, so the loaded skip is always on the uphill side.
- 04
Tip on firm ground
Stop, set the brake, check the ground will hold and nobody is in front of the skip, then tip. Next to trenches or slopes, use a wheel stop.
- 05
Lower the skip before moving
Bring the skip back down before you drive off. Move or turn with the skip raised and the center of gravity climbs: it can tip over.
Do this
- Loaded on a slope → drive up forward, come down in reverse, always slowly.
- Use a wheel stop when tipping next to trenches or slopes.
- Keep the dump zone clear of people.
- Respect the skip's rated capacity.
Avoid this
- Don't carry people in the skip or on the sides.
- Don't drive across a slope loaded: it's the most common way to roll it.
- Don't tip with a wheel over a slope or trench edge.
- Don't drive or turn with the skip raised.
Safety
- Hard hat, boots, hi-vis vest and gloves.
- Watch blind spots when reversing.
- Brake on when loading and parking.
Applications
What jobs this machine is built for.
- Warehouses and distribution centers
- Stacking, loading and unloading
- Work at height (platforms)
- Building maintenance
- Pallet and material handling
Where this machine earns its keep
The same machine, told for your business: pick your industry and see the full case.
Agribusiness & fertilizer plants
Bulk fertilizer, seed or feed between warehouses: 1,500 kg per trip, 4×4 for muddy yards and hydraulic dump straight into the mixer or point of use.
All the gear for this industryHotels, resorts & propertiesBeach sand, garden soil and renovation material down narrow paths: a compact 4×4 that fits where the pickup can't, without rutting the lawn.
All the gear for this industryGolf courses & sports clubsSand to the bunker and amendments to the green via cart paths: 1,500 kg per trip on tires — not tracks — with a hydraulic dump exactly where the material goes.
All the gear for this industryCemeteries & memorial parksExcavation spoil leaves through one-meter walkways: 4×4 on wet turf, 1,500 kg per trip and a hydraulic dump at the stockpile — no wheelbarrow relays, no truck idling outside.
All the gear for this industryLandscaping, nurseries & green areasSoil, stone and plants from the truck to the back of the garden: fits the one-meter gate, rolls over turf without rutting it, and dumps material right at the planting hole.
All the gear for this industryBuying guides
Clear up your questions before you quote
Guide · 6 min
Dumper, wheelbarrow or skid steer? What works best for moving material on site
When a wheelbarrow is enough, when a 4×4 dumper like the Urban 1500 multiplies progress and when you need a skid steer. Simple criteria and common mistakes.
Read Guide · 7 minFlood equipment: the flood response gear to have ready before a hurricane
Light towers, 3″ and 4″ dewatering pumps, cutting, demolition and compaction: the flood equipment worth having ready, how much water each pump moves and how to check it all before the season.
Read Guide · 6 minFlood equipment for municipalities: what a city needs for flood response
Municipal flood response equipment by task and by crew: lighting, dewatering, cutting and reopening access, with the pump maths and what to specify when you buy.
ReadFrequently asked
Manual or electric stacker?
Manual for occasional, low-cost use; electric for continuous use, greater heights and less operator effort.
Scissor or boom lift?
Scissor for stable vertical lift on firm ground; articulating boom when you need reach that works around obstacles.
Which pallet truck capacity?
We carry 2.0, 2.5 and 3.0-tonne pallet trucks. Choose by max load and frequency of use.
Warranty and quote?
6 months, parts and local after-sales. Quote via form or WhatsApp, reply during business hours.
Ready for a quote?
Tell us about the job and we'll build the package. A rep replies during business hours.
Hydraulic dumper SQURBAN1500 · SQURBAN1500
Customer reviews
No reviews for this equipment yet. If you use it, tell others how it's going.
