Official SIMAQ breakdown

Parts for SQ25T685PM

99 parts for the Pallet truck SQ25T685PM, with SIMAQ code, quantity per machine and spec where the manual provides it.

Parts
99
Wear items
22
Manual
SQ25T2.5TOM-2026-A
Order with the formFull manual (PDF)See the machine

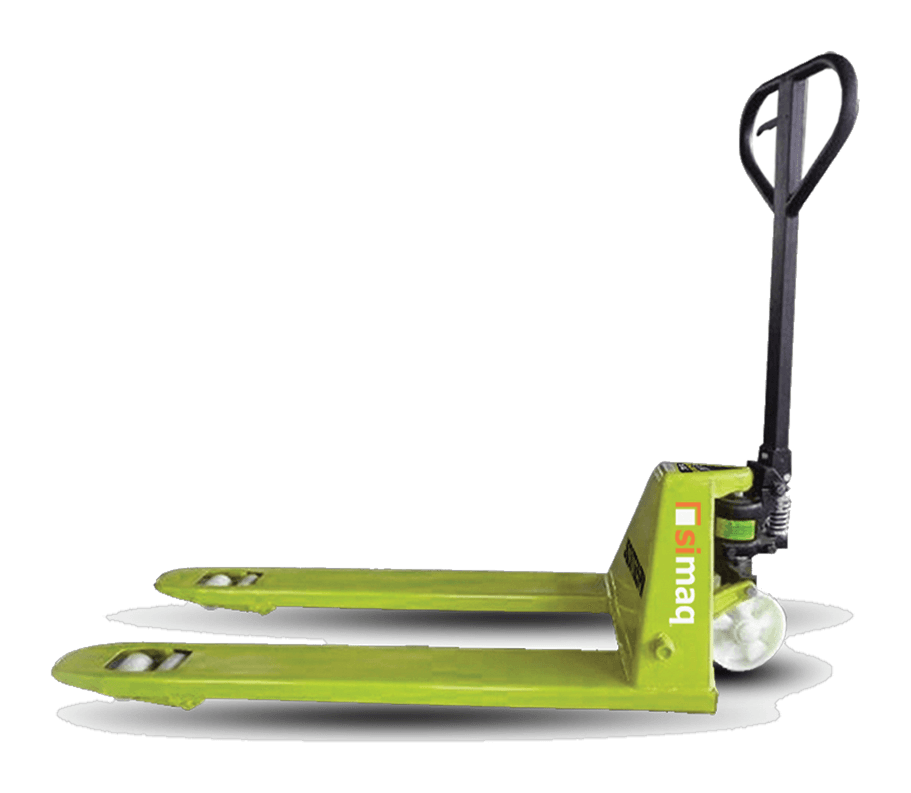

Pallet truck SQ25T685PM

SQ25T685PM parts with photos

The most-ordered parts, photographed in our warehouse. Compare before you order.

Exploded diagram

The number on the drawing is the same # in the table.

Manual p. 11 · open the full manual

99 parts in the official breakdown.

SIMAQ codePartQtySpecOrder
Handle assembly1—Order
Wheel shaft1—Order
Bolt1—Order
Lock nut1—Order
Bearing1—Order
Supporting seat1—Order
Spring washer1—Order
Spring pin1—Order
Big wheel2—Order
Bearing 62042—Order
Washer2—Order
Snap ring2—Order
Dust ring2—Order
Pin2—Order
Snap ring2—Order
Connection head2—Order
Pin shaft2—Order
Connection rod2—Order
Long shaft2—Order
Snap ring for hole2—Order
Spring pin2—Order
Connection rod shaft2—Order
Wheel frame2—Order
Washer4—Order
Shaft2—Order
Spring pin4—Order
Spring pin8—Order
Connection plate4—Order
Roller shaft4—Order
Bearing 62048—Order
Fork roller4—Order
Spring pin2—Order
Roller shaft2—Order
Washer4—Order
Bearing 62044—Order
Fork roller (single)2—Order
Truck frame1—Order
Bolt2—Order
Rocker arm1—Order
Hydraulic pump1—Order
Spring pin1—Order
Fork roller assembly (single)1—Order
Fork roller assembly (double)1—Order
Spring pin2—Order
Spring1—Order
Spring plate1—Order
Roller1—Order
Spring pin1—Order
Spring pin1—Order
Spring pin1—Order
Handle tube1—Order
Pull rod1—Order
Chain1—Order
Adjust bolt1—Order
Lock nut1—Order
Handle cover1—Order
Shaft1—Order
Spring pin1—Order
Press wheel1—Order
Buje/Bushing1—Order
Buje/Bushing1—Order
Spring pin1—Order
Shaft1—Order
Screw plug1—Order
Washer1—Order
Spring1—Order
Valve spool1—Order
Valve bush1—Order
Steel ball1—Order
Pump1—Order
Steel ball1—Order
Steel ball seat1—Order
Spring1—Order
Adjust screw1—Order
Washer1—Order
Seal screw plug1—Order
Spring1—Order
Strike pin1—Order
O ring1—Order
Washer1—Order
Strike pin sleeve1—Order
Adjust bolt1—Order
Screw1—Order
Lever plate1—Order
Spring pin1—Order
Washer1—Order
Bolt1—Order
U seal ring1—Order
O seal ring1—Order
Cylinder cap1—Order
O seal ring1—Order
Dust ring1—Order
Plug1—Order
Steel ball1—Order
Small plug1—Order
Spring gap1—Order
Straight tappet1—Order
Dust ring1—Order
U seal ring1—Order
