Parts for SQTHZ 170 PRO

512 parts for the Articulating boom lift SQTHZ 170 PRO, with SIMAQ code, quantity per machine and spec where the manual provides it.

Parts
512
Wear items
32
Manual
SIMAQ170PROOM-2026-A
Order via WhatsAppFull manual (PDF)See the machine

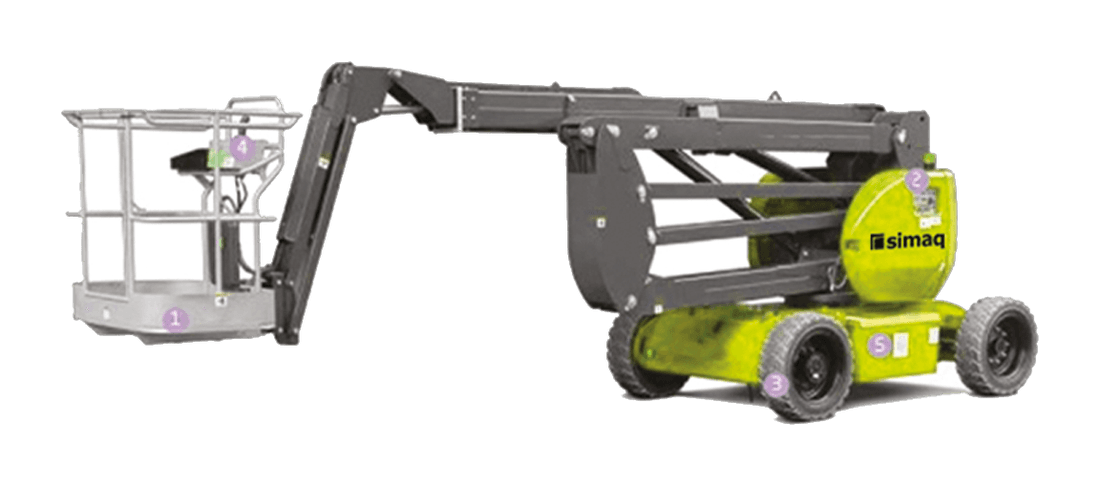

Articulating boom lift SQTHZ 170 PRO

2 codes in this breakdown are flagged with ⚠ because the factory manual repeats them or types letter O instead of zero. Confirm with support before ordering.

Exploded diagram

The number on the drawing is the same # in the table.

512 parts in the official breakdown.

SIMAQ codePartQtySpecOrder
#1Frame1—Order
#2R.H. complete wheel hub1—Order
#3L.H. complete wheel hub1—Order
#4Articulating pin2—Order
#5Bushing2—Order
#6Washer2—Order
#7Nut M242—Order
#8Screw M8×402—Order
#9Code to confirmWasher 84—Order
#9Code to confirmNut M82—Order
#10Steering rod1—Order
#11Bushing2—Order
#12Articulating pin1—Order
#13Screw M8×302—Order
#14Washer 84—Order
#15Nut M82—Order
#16Straight greaser2—Order
#17Articulating pin1—Order
#18Battery bonnet2—Order
#19Locker4—Order
#20Screw M4×128—Order
#21Washer 48—Order
#22M4 Nut M48—Order
#23Engine bonnet1—Order
#24Screw M6×164—Order
#24.1Washer 64—Order
#24.2Nut M62—Order
#25Bonnet1—Order
#27Sludge door2—Order
#28Screw M6×164—Order
#29Washer 6; Washer 64—Order
#31Bushing4—Order
#32Straight greaser1—Order
#33Protective housing1—Order
#34Bearing1—Order
#35Wheel nut1—Order
#36Screw6—Order
#38Bearing1—Order
#39Washer 501—Order
#40Nut M50×1.51—Order
#41Plug1—Order
#42Circlip 951—Order
#43Handle2—Order
#44Screw M6×164—Order
#45Washer 68—Order
#46Nut M64—Order
#47Articulating pin1—Order
#48Bushing1—Order
#49Rotator1—Order
#50Bracket1—Order
#51Bonnet1—Order
#1Turret1—Order
#2Spindle1—Order
#3Rotation reducer1—Order
#4Screw M16×11036—Order
#5Washer 1636—Order
#7Counterweight1—Order
#8Screw M24×804—Order
#9Washer 244—Order
#11R.H. bracket1—Order
#12Screw M6×164—Order
#13Washer 64—Order
#14Nut M62—Order
#15Screw M8×202—Order
#16Washer 82—Order
#17L.H. bracket1—Order
#18Seal2—Order
#19L.H. bonnet1—Order
#20Locker2—Order
#21Screw M4×124—Order
#22Washer 44—Order
#23Nut M44—Order
#24Locking hook2—Order
#25Screw M6×164—Order
#26Washer 68—Order
#27Nut M64—Order
#28L.H. bonnet bracket1—Order
#29Screw M8×204—Order
#30Washer 84—Order
#31Bonnet bracket2—Order
#32Screw M8×304—Order
#33Washer 88—Order
#34Nut M84—Order
#35Hinge2—Order
#36Hinge2—Order
#37R.H. bonnet1—Order
#38R.H. bonnet bracket1—Order
#39As （35）——Order
#41Screw M6×162—Order
#42Washer 62—Order
#44Screw M6×2012—Order
#45Washer 612—Order
#46Nut M612—Order
#48Screw M6×251—Order
#49Washer 61—Order
#50Washer 61—Order
#51Nut M61—Order
#1Lower jib1—Order
#2Bushing4—Order
#3Articulating pin2—Order
#4Screw M8×202—Order
#5Washer 82—Order
#6Straight greaser9—Order
#7Rod1—Order
#8Bushing4—Order
#9Articulating pin2—Order
#10Screw M8×301—Order
#11Washer 82—Order
#12Nut M81—Order
#13Tie rod2—Order
#14Articulating pin——Order
#15Screw M8×202—Order
#16Washer 82—Order
#17Intermediary joint1—Order
#18Articulating pin6—Order
#19Screw M8×301—Order
#20Washer 82—Order
#21Nut M81—Order
#22Jib guide1—Order
#23Screw M6×203—Order
#24Tie rod——Order
#25Articulating pin——Order
#26Screw M8×301—Order
#27Washer 82—Order
#28Nut M81—Order
#29Jib1—Order
#30Bushing4—Order
#31Articulating pin——Order
#32Screw M8×302—Order
#33Washer 84—Order
#34Nut M82—Order
#35Articulating pin——Order
#36Shim1—Order
#37Wedge1—Order
#38Slide block1—Order
#39Screw M8×753—Order
#40Washer 83—Order
#41Nut M83—Order
#42Intermediary joint1—Order
#43Articulating pin——Order
#44Screw M8×302—Order
#45Washer 84—Order
#46Nut M82—Order
#47Protective housing1—Order
#48Screw M6×164—Order
#49Washer 6——Order
#50Fastening plate1—Order
#51Screw M6×164—Order
#52Washer 6——Order
#61Bushing8—Order
#1Upper jib1—Order
#2Bushing40302—Order
#3Articulating pin1—Order
#4Screw M8×301—Order
#5Washer 82—Order
#6Nut M81—Order
#7Straight greaser3—Order
#8Slide block8—Order
#9Shim8—Order
#10Insert16—Order
#11Screw M12×4016—Order
#12Washer 1216—Order
#13Nut M1216—Order
#14Protective housing1—Order
#15Screw M6×162—Order
#16Washer 62—Order
#17Washer 62—Order
#18Protective housing1—Order
#19Screw M6×103—Order
#20Washer 62—Order
#22Housing1—Order
#23Screw M6×103—Order
#24Washer 63—Order
#25锁带 Flange2—Order
#26Washer 62—Order
#27Nut M62—Order
#28Complete chain ( 20 Link)1—Order
#29Plug——Order
#30Link——Order
#31Screw M6×162—Order
#32Screw M6×162—Order
#33Washer 62—Order
#34Nut M62—Order
#35Boom telescope1—Order
#36Slide block6—Order
#37Wedge6—Order
#38Guide hose1—Order
#39Screw M8×353—Order
#40Washer 83—Order
#41Flange1—Order
#42Screw M6×404—Order
#43Washer 68—Order
#44Nut M64—Order
#1Joint with bushing1—Order
#2Bushing2—Order
#3Bushing4—Order
#4Articulating pin1—Order
#5Washer 271—Order
#6Holed circular nut1—Order
#7Screw M8×301—Order
#8Washer 82—Order
#9Nut M81—Order
#10Straight greaser3—Order
#11JIB - PERSONNEL BASKET1—Order
#12Articulating pin2—Order
#13Screw M8×202—Order
#14Washer 82—Order
#15Left side tie bar1—Order
#16Right side tie bar1—Order
#17Articulating pin2—Order
#18Holed circular nut2—Order
#19Screw M8×202—Order
#20Washer 82—Order
#21Support rotation basket with bushing1—Order
#22Bushing2—Order
#23Bushing2—Order
#1Personnel basket1—Order
#2Floor1—Order
#3Tool box1—Order
#4Screw M6×204—Order
#5Washer 64—Order
#6Nut M64—Order
#7Base-plate with bushing1—Order
#8Screw M12×407—Order
#9Washer 122—Order
#10Washer 1210—Order
#11Nut M125—Order
#12Bushing1—Order
#13Bushing1—Order
#14Support rotation basket1—Order
#15Articulating pin1—Order
#16Bushing1—Order
#17Circlip 301—Order
#18Straight greaser4—Order
#19Screw M8×201—Order
#20Washer 81—Order
#21Spring1—Order
#22Spacer1—Order
#23Screw M16×1401—Order
#25Washer 161—Order
#26Rod2—Order
#27Bushing8—Order
#28Articulating pin1—Order
#29Screw M8×202—Order
#30Washer 82—Order
#31Box1—Order
#32Screw M6×254—Order
#33Washer 68—Order
#1Left pipe of the device1—Order
#2Switch socket1—Order
#3Device cable1—Order
#4Right pipe of the device1—Order
#5Nut M816—Order
#6U-shaped lock8—Order
#1Oil tank1—Order
#2Connection1—Order
#3Connection1—Order
#4Connection2—Order
#5Connection (Pressure test)1—Order
#8Electric motor1—Order
#9Valve bank1—Order
#10Hydraulic pump1—Order
#11Connection1—Order
#12Connection3—Order
#13Hose1—Order
#14Hose1—Order
#15Hose1—Order
#16Cartridge hydraulic return oil filter1—Order
#17Air breather1—Order
#18Plug1—Order
#19Connection1—Order
#1Connection2—Order
#2Hose2—Order
#3Connection2—Order
#1Rotation cylinder1—Order
#2Articulating pin1—Order
#3Screw M8×301—Order
#4Washer 82—Order
#5Nut M81—Order
#6Nut M201—Order
#9Clamp1—Order
#11Connection2—Order
#12Hose2—Order
#13Connection2—Order
#14Hose2—Order
#15Connection2—Order
#1Pendular arm cylinder1—Order
#2Articulating pin1—Order
#3Screw M8×201—Order
#4Washer 81—Order
Clamp 1——Order
Bracket hose 1——Order
Screw M6×16 2——Order
Washer 6 2——Order
Connection 2——Order
#11Ose 2——Order
#12Onnection 2——Order
#13Ose 2——Order
Connection 2——Order
#2Telescope cylinder1—Order
#3Articulating pin1—Order
#4Circlip 302—Order
#5Articulating pin1—Order
#6Screw M8×301—Order
#7Washer 82—Order
#8Nut M81—Order
#9Slide block2—Order
#1Compensation cylinder1—Order
#2Articulating pin1—Order
#3Screw M8×301—Order
#4Washer 82—Order
#5Nut M81—Order
#6Articulating pin1—Order
#7Screw M8×301—Order
#8Washer 82—Order
#9Nut M81—Order
#11Articulating pin1—Order
#1Lifting cylinder1—Order
#2Articulating pin1—Order
#3Screw M8×201—Order
#4Washer 82—Order
Washer 82—Order
#5Articulating pin1—Order
#6Screw M8×201—Order
#9Lifting cylinder1—Order
#10Articulating pin1—Order
#11Screw M8×301—Order
#12Washer 82—Order
#13Nut M81—Order
#14Articulating pin1—Order
#15Screw M8×301—Order
#16Washer 82—Order
#17Nut M81—Order
#22Clamp2—Order
#24Connection6—Order
#25Hose2—Order
#26Jet1—Order
#27Hose2—Order
#1Steering cylinder1—Order
#2Articulating pin1—Order
#3Circlip 252—Order
#4Connection4—Order
#5Hose2—Order
#1Pump manual1—Order
#2Pump manual bracket1—Order
#3Screw M10×604—Order
#4Washer 108—Order
#5Nut M104—Order
#7Connection3—Order
#8Hose1—Order
#10Hose1—Order
#1Steering cylinder1—Order
#2Seal kit1—Order
#3Bushing2—Order
#4M8×1 Straight greaser2—Order
#1Lifting cylinder1—Order
#2Seal kit1—Order
#3Straight greaser2—Order
#4Bushing4—Order
#5Valve block1—Order
#6Screw M6×354—Order
#8Lifting cylinder1—Order
#9Seal kit1—Order
#10Valve block1—Order
#11Screw M6×354—Order
#12Bushing4—Order
#13Straight greaser2—Order
#1Lifting cylinder1—Order
#2Seal kit1—Order
#3Valve block1—Order
#4Screw M6×354—Order
#6Bushing4—Order
#7Straight greaser2—Order
#8Lifting cylinder1—Order
#9Seal kit1—Order
#10Valve block1—Order
#11Screw M6×354—Order
#12Bushing4—Order
#13Straight greaser2—Order
#1Compensation cylinder1—Order
#2Seal kit1—Order
#3Bushing2—Order
#4Straight greaser2—Order
#5Compensation cylinder1—Order
#6Seal kit1—Order
#7Bushing2—Order
#8Straight greaser2—Order
#1Telescope cylinder1—Order
#2Seal kit1—Order
#3Valve block1—Order
#4Screw M6×354—Order
#6Telescope cylinder1—Order
#7Seal kit1—Order
#8Valve block1—Order
#9Screw M6×354—Order
#1Tilting cylinder1—Order
#2Seal kit1—Order
#3Valve block1—Order
#4Screw M6×354—Order
#5Bushing2—Order
#6Straight greaser2—Order
#1Pendular arm cylinder1—Order
#2Seal kit1—Order
#3Bushing4—Order
#4Straight greaser2—Order
#5Screw M6×354—Order
#6Valve block1—Order
#1Rotation cylinder1—Order
#2Seal kit1—Order
#3Valve block1—Order
#4Screw4—Order
#1Complete control console (Basket)1—Order
#2Switch (Stabilizer) with wiring harness1—Order
#3Wiring harness1—Order
#4Wiring harness1—Order
#5Levelling system detector1—Order
#6Warning Light1—Order
#7Complete control console (Ground)1—Order
#8Switch with wiring harness4—Order
#9Wiring harness1—Order
Wiring harness1—Order
24V/Horn 12/24V1—Order
Principal wire bundle1—Order
#1Switch)1—Order
#2B+)1—Order
#3B+)1—Order
#4B+)1—Order
#5B- )1—Order
#6B- )1—Order
#7B- )1—Order
#8U)1—Order
#9V)1—Order
#10W）1—Order
#11U)1—Order
#12V）1—Order
#13W）1—Order
#14U)1—Order
#15V）1—Order
#16W）1—Order
#17B - )1—Order
#18Cable (Drive harness assembl1—Order
#19Battery2—Order
#20Driver3—Order
#21Battery ch1—Order
#22Pump Motor1—Order
#23Traction M2—Order
#24Powe1—Order
#25DC changer1—Order
#26Po1—Order
#1Walking driver （Left ）1—Order
#2Walking driver （Right ）1—Order
#3Pump Driver1—Order
#4DC changer1—Order
#5Complete control console (Basket)1—Order
#6Switch (Stabilizer) with wiring harness1—Order
#7Antistatic strap1—Order
#8Traction Motor2—Order
#9Complete breaker circuit1—Order
#10Battery2—Order
#12Potentiometer assembly1—Order
#13Battery charger1—Order
#14Complete control console (Ground)1—Order
#15Levelling system detector1—Order
#16Switch with wiring harness2—Order
#17Horn1—Order
Complete control console 1——Order
#2Sticker1—Order
#3Screen1—Order
#4Button1—Order
#5Shift switch7—Order
#6Switch1—Order
#7Key switch1—Order
#8Emergency switch1—Order
#9Isolation module1—Order
#10Beeper1—Order
#11Hinge2—Order
#12Lock2—Order
#13Relay7—Order
#14Module1—Order
#1Complete control console (Basket)——Order
#2Sticker1—Order
#3Joystick1—Order
#4Emergency switch1—Order
#5Button1—Order
#6Shift switch1—Order
#7Shift switch7—Order
#8Indicator2—Order
#9Indicator 6——Order
#10Lock 2——Order
#11Beeper 1——Order
#12Hinge 2——Order
#13Basket controller 1——Order
#14Protector 1——Order
#15Protector 1——Order
#1Adhesive2—Order
#2Adhesive2—Order
#3Adhesive1—Order
#5Adhesive4—Order
#6Adhesive1—Order
#7Adhesive1—Order
#8Adhesive2—Order
#9Adhesive2—Order
#10Dhesive 2——Order
#11Dhesive 1——Order
#12Dhesive 1——Order
#13Dhesive 1——Order
#14Dhesive 1——Order
#15Dhesive 1——Order
#16Dhesive 4——Order
#17Dhesive 4——Order
#18Dhesive 2——Order
#19Dhesive 1——Order

Breakdowns in the same family

Category: Material Handling · All breakdowns

WhatsAppGet a quote
