158 parts for the Stacker SDJIO-S PRO, with SIMAQ code, quantity per machine and spec where the manual provides it.

Parts
158
Wear items
37
Manual
SDJ10-SPROOM-2026-A
Order via WhatsAppFull manual (PDF)See the machine

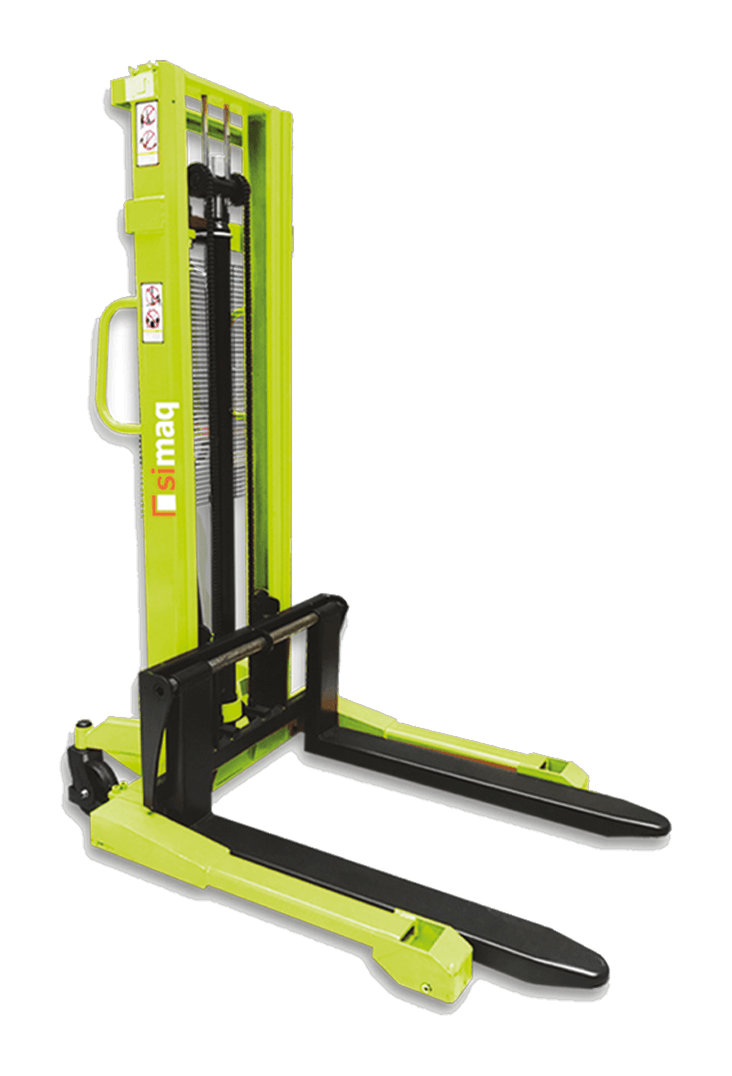

Stacker SDJIO-S PRO

2 codes in this breakdown are flagged with ⚠ because the factory manual repeats them or types letter O instead of zero. Confirm with support before ordering.

Exploded diagram

The number on the drawing is the same # in the table.

Manual p. 8 · open the full manual

158 parts in the official breakdown.

SIMAQ codePartQtySpecOrder
#1-1Blade Plate1—Order
#1-2Spring1—Order
#1-3Pin 4x321—Order
#1-4Roller1—Order
#1-5Pin 4x201—Order
#1-6Pin 6x321—Order
#1-7Pin 4x201—Order
#1-8Handle Knob1—Order
#1-9Tube1—Order
#1-10Pull Pole1—Order
#1-11Chain1—Order
#1-12Shaft1—Order
#1-13Bolt1—Order
#1-14Nut M51—Order
#2-1Pump Plunger 181—Order
#2-2Cap1—Order
#2-3Dust Ring 181—Order
#2-4Seal Ring 181—Order
#2-5Spring1—Order
#2-6Press plate1—Order
#2-73-hole shaft 20x1051—Order
#2-8Pin 5x282—Order
#2-10Bush 20x23x11.52—Order
#2-11Shaft 12x451—Order
#2-12Bush 12x14x201—Order
#2-13Roller 26x14x221—Order
#2-14Shaft Spring Ring 122—Order
#2-15Nut M81—Order
#2-16Foot Pedal1—Order
#2-17Rubber Cover1—Order
#2-18Pedal Frame1—Order
#2-19Bolt M8x401—Order
#2-20Bush 20x23x102—Order
#2-21Valve Washer1—Order
#2-22Valve1—Order
#2-24Seal Washer 102—Order
#2-25Screw M10x12—Order
#2-26Screw M16x1.51—Order
#2-27Seal Washer 161—Order
#2-28Valve Spring 0.5x4.8x211—Order
#2-29Strike Pin1—Order
#2-30Valve M16x1.51—Order
#2-31O Ring 10.6x1.81—Order
#2-32Steel Ball 71—Order
#2-33Shaft 8x561—Order
#2-34Axle Spring Ring 82—Order
#2-35Steel Ball 51—Order
#2-36Ball Seat1—Order
#2-37Spring 2x8x161—Order
#2-38Screw M10x11—Order
#2-39O Ring 6.9x1.81—Order
#2-40Strike pin1—Order
#2-41Spring 1.2x10x221—Order
#2-42Seal Washer 201—Order
#2-43Pin Seat1—Order
#2-44O Ring 8x2.651—Order
#2-45Lever Plate1—Order
#2-46Screw M6x201—Order
#2-47Nut M61—Order
#2-48O Ring 7.5x2.651—Order
#2-49Screw M8x11—Order
#2-5035/40×L (Piston 32/35/40× L) / Piston 32/35/40xL1—Order
#2-5235/40 (Seal Ring 32/35/ 40) / Seal Ring 32/35/401—Order
#2-5335/40×3.55 (O Ring 32/35/40×3. 55) / O Ring 32/35/40x3.551—Order
#2-5435/40 (Dust Ring 32/35/ 40) / Dust Ring 32/35/401—Order
#3-1Screw M16x504—Order
Steel Ball Ph194—Order
Fixed forks welding1—Order
#3-3-1Adjustable forks welding1—Order
Hole Ring D724—Order
Bearing 62074—Order
Slide Wheel 86.54—Order
#3-6-1Slide Wheel 1064—Order
Axle Spring Ring 354—Order
#4-1Slide Carriage1—Order
#4-2Screw M16x604—Order
#4-3Steel Ball Ph19.054—Order
#4-4Hole Spring Ring 724—Order
#4-5Bearing 602074—Order
#4-6Code to confirmSlide Wheel 86.54—Order
#4-6Code to confirmSlide Wheel 1064—Order
#4-7Axle Spring Ring 354—Order
#4-8Screw M6x161—Order
#4-9L Long Shaft1—Order
#6-1Dust Cover SBA - 000621—Order
#6-2Axle Spring Ring d251—Order
#6-3Bearing 601052—Order
#6-4Washer 45x25.5x51—Order
#6-5Bearing 512051—Order
#6-6Washer 46.5x27x51—Order
#6-7Hole Spring Ring D471—Order
#6-8Wheel Frame1—Order
#6-9Bolt M12x951—Order
#6-10Flat Washer 121—Order
#6-11Nut M121—Order
#6-12Bush 20.5x25x2.52—Order
#6-13With bearing1—Order
#6-14PU Wheel Ph180x501—Order
#6-15Bush 12x20x551—Order
#7-1Chain wheel shaft (single mast)1—Order
#7-2Chain wheel shaft (double mast)1—Order
#7-3A Hole Spring Ring D622—Order
#7-4Bearing 62062—Order
#7-5Chain Wheel2—Order
#7-6A Axle Spring Ring d302—Order
#8-1Nut M164—Order
#8-2Chain puller M16x1.51—Order
#8-3Pin 2.5x254—Order
#8-4Pin 2x164—Order
#8-5Shaft Ph52—Order
#8-6Chain LH08461—Order
#8-7Chain puller M16x1.51—Order
#9-1Nut M104—Order
#9-2Bolt M10x604—Order
#9-3Axle Spring Ring d204—Order
#9-4Shaft 20x972—Order
#9-5Side Slide Wheel 43x254—Order
#9-6Mesh Cover 9121—Order
#9-7Flat Washer 102—Order
#9-8Nut M102—Order
#9-9Fixing plate1—Order
#9-10Rubber Pad1—Order
#9-11Flat Washer 102—Order
#9-12Nut M102—Order
#9-13Out Mast1—Order
#9-14Caster Assembly1—Order
#9-15Shaft2—Order
#9-16Spring Ring 204—Order
#9-17Bearing 602044—Order
#9-18Ph80x702—Order
#9-19PU wheel Ph80x702—Order
#9-20Screw M10x451—Order
#9-21Spring Washer 101—Order
#9-22Blocking 54x601—Order
#9-23Chain wheel assembly1—Order
#9-24Chain assembly2—Order
#9-25Pump1—Order
#9-26Handle Assembly1—Order
#9-27Inner mast1—Order
#9-28Slide Wheel 1064—Order
#9-29Steel Ball Ph19.054—Order
#9-30Hole Spring Ring 724—Order
#9-31Bearing 62074—Order
#9-32Axle Spring Ring d354—Order
#9-33Adjustable forks1—Order
#9-34Fixed Forks1—Order
#10-1Pole2—Order
#10-2Supporting2—Order
#10-3Screw8—Order
#10-4Spring Washer8—Order
#10-5Press Plate2—Order
#10-6Leg2—Order
#10-7Bush4—Order
#10-8Bearing4—Order
#10-9Forks2—Order
#10Axle Spring Ring4—Order
#11Shaft2—Order
#12Plat Washer8—Order
