Official SIMAQ breakdown

Parts for SQ30T685PM

99 parts for the Pallet truck SQ30T685PM, with SIMAQ code, quantity per machine and spec where the manual provides it.

Parts
99
Wear items
17
Manual
SQ30685PMTOM-2026-A
Order with the formFull manual (PDF)See the machine

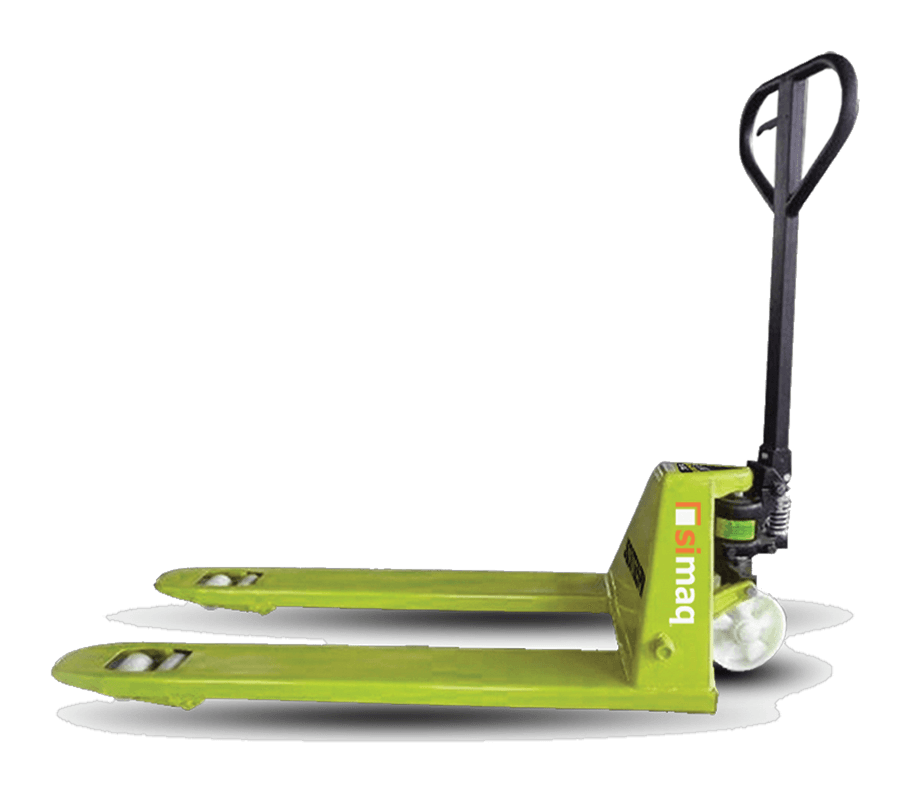

Pallet truck SQ30T685PM

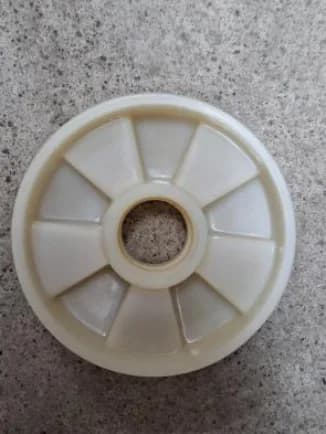

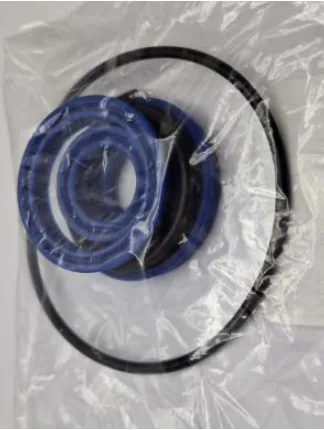

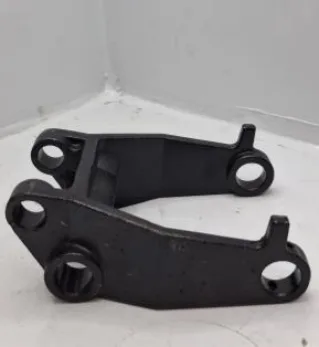

SQ30T685PM parts with photos

The most-ordered parts, photographed in our warehouse. Compare before you order.

Exploded diagram

The number on the drawing is the same # in the table.

Manual p. 11 · open the full manual

99 parts in the official breakdown.

SIMAQ codePartQtySpecOrder
Handle assembly1—Order
Wheel shaft1—Order
Bolt1—Order
Lock nut1—Order
Bearing1—Order
Supporting seat1—Order
Spring washer1—Order
Spring pin1—Order
Big wheel2—Order
Bearing 62042—Order
Washer2—Order
Snap ring2—Order
Dust ring2—Order
Pin2—Order
Snap ring2—Order
Connection head2—Order
Pin shaft2—Order
Connection rod2—Order
Long shaft2—Order
Snap ring for hole2—Order
Spring pin2—Order
Connection rod shaft2—Order
Wheel frame2—Order
Washer4—Order
Shaft2—Order
Spring pin4—Order
Spring pin8—Order
Connection plate4—Order
Roller shaft4—Order
Bearing 62048—Order
Fork roller4—Order
Spring pin2—Order
Roller shaft2—Order
Washer4—Order
Bearing 62044—Order
Fork roller (single)2—Order
Truck frame1—Order
Bolt2—Order
Rocker arm1—Order
Hydraulic pump1—Order
Spring pin1—Order
A (single)1—Order
B (double)1—Order
Spring pin2—Order
Spring1—Order
Spring plate1—Order
Roller1—Order
Spring pin1—Order
Spring pin1—Order
Spring pin1—Order
Handle tube 1——Order
Pull rod 1——Order
In 1——Order
Adjust bolt 1——Order
Lock nut 1——Order
Handle cover 1——Order
Shaft——Order
Spring pin 1——Order
Press wheel 1——Order
Buje/Bushing 1——Order
Buje/Bushing 1——Order
Spring pin 1——Order
Shaft——Order
Screw plug 1——Order
Asher 1——Order
Ring 1——Order
Valve spool 1——Order
Valve bush 1——Order
Steel ball 1——Order
Pump——Order
Steel ball 1——Order
Steel ball seat——Order
Ring 1——Order
Adjust screw 1——Order
Asher 1——Order
Seal screw plug——Order
Ring 1——Order
Strike pin 1——Order
Ring 1——Order
Asher 1——Order
Strike pin sleeve——Order
Adjust bolt 1——Order
Crew 1——Order
Lever plate 1——Order
Spring pin 1——Order
Asher 1——Order
Bolt——Order
U seal ring——Order
O seal ring——Order
Cylinder cap 1——Order
O seal ring——Order
Dust ring 1——Order
Ug 1——Order
Steel ball 1——Order
Small plug 1——Order
Spring gap——Order
Straight tappet 1——Order
Dust ring 1——Order
U seal ring——Order
