Premium lineSQTHZ 170 PRO

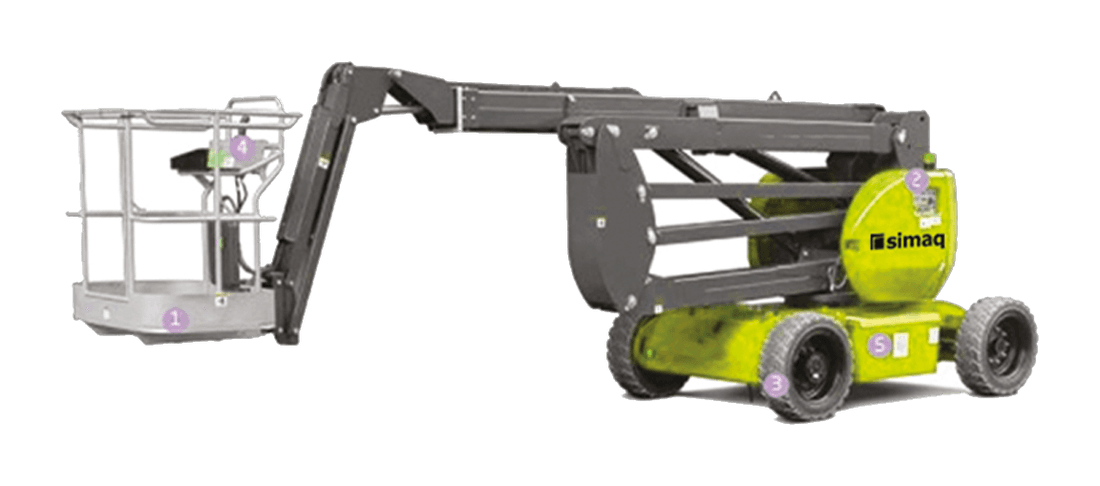

Articulating boom lift SQTHZ 170 PRO
Reach that works around obstacles at height.
Compare with another machineParts available for this machineBuy it from ConstruMarket in El Salvador
Features
- Articulating boom
- Long reach
Specifications
- Lift height
- 13.7 m
- Load capacity
- 200–230 kg
- Drive
- Eléctrica (batería con cargador integrado)
- Brakes
- Negativos + freno de elevación
- Tires
- Sin marcas (antimarca)
5-minute training
5 minHow to use the aerial platform
The platform (scissor or boom) takes the crew up to work at height safely. Firm ground, outriggers and harness are non-negotiable.
- 01
Pre-use inspection
Check controls, hydraulic leaks, tires/tracks, guardrails and the e-stop. Test the controls low first.
- 02
Firm, level ground
Set on ground that bears the load. Lower and lock outriggers; check level (bubble).
- 03
Harness anchored to the basket point
On a boom, harness with lanyard to the certified anchor point. Close the basket gate/chain.
- 04
Raise slowly, looking up
Raise smoothly, watching for power lines, structures and overhangs. Respect max height and reach.
- 05
Don't reach outside the rail
Bring the platform to the work instead of leaning out. Keep your body inside the basket always.
Do this
- Harness and lanyard on boom platforms.
- Outriggers down and level confirmed.
- Respect the basket's max load.
Avoid this
- Don't climb the rail to gain height.
- Don't drive it elevated unless the machine allows it.
- Don't work near power lines without safe clearance.
Safety
- Harness, chin-strap hard hat, boots and gloves.
- Safe distance from power lines.
- High winds: don't operate at height.
Applications
What jobs this machine is built for.
- Warehouses and distribution centers
- Stacking, loading and unloading
- Work at height (platforms)
- Building maintenance
- Pallet and material handling
Where this machine earns its keep
The same machine, told for your business: pick your industry and see the full case.
Buying guides
Clear up your questions before you quote
Guide · 7 min
Scissor lift or boom lift? How to choose the right aerial platform
Both reach past 13 metres, but they solve different jobs. The decision in three questions, with real figures from the SQ140X PRO scissor and the SQTHZ 170 PRO boom.
Read Guide · 5 minWhat is a lifting platform, and which one do you need?
Platforms for people (scissor and boom) and gear for lifting loads (lift table, scissor pallet truck and stacker): what each one is and which suits you.
ReadFrequently asked
Manual or electric stacker?
Manual for occasional, low-cost use; electric for continuous use, greater heights and less operator effort.
Scissor or boom lift?
Scissor for stable vertical lift on firm ground; articulating boom when you need reach that works around obstacles.
Which pallet truck capacity?
We carry 2.0, 2.5 and 3.0-tonne pallet trucks. Choose by max load and frequency of use.
Warranty and quote?
6 months, parts and local after-sales. Quote via form or WhatsApp, reply during business hours.
