Premium lineSIMAQ DB 60V

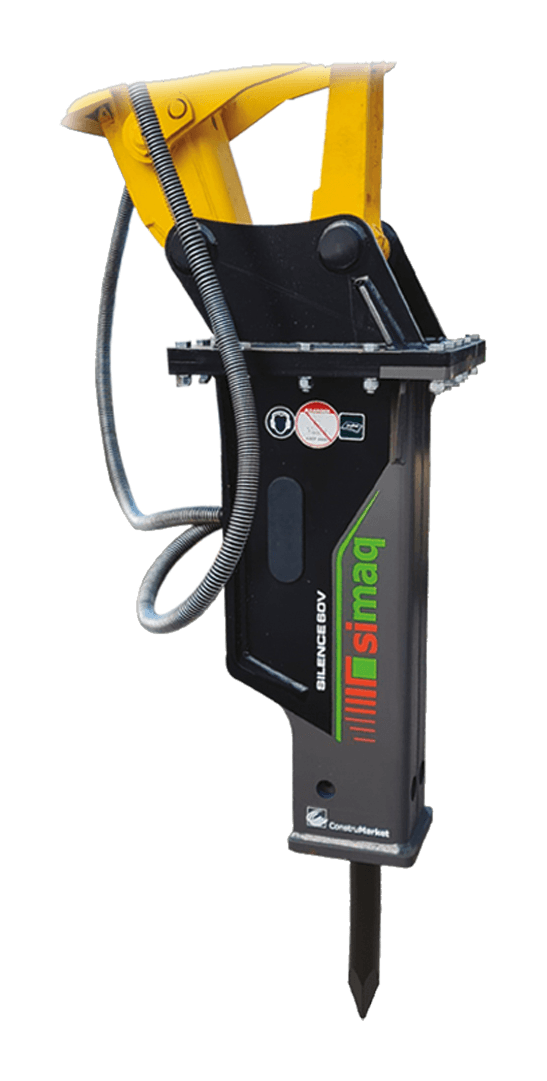

Hydraulic breaker SIMAQ DB 60V
Breaks concrete and rock, machine-mounted.
Compare with another machineParts available for this machineBuy it from ConstruMarket in El Salvador
Features
- Low noise
- High impact
Specifications
- Operating weight
- 412 kg (908 lb)
- Carrier
- Retroexcavadora
- Required oil flow
- 40–110 L/min
- Operating pressure
- 1,707–2,347 psi
- Blows per minute
- 380–900
- Relief valve
- 2,489 psi
- Tool diameter
- 75 mm
Ready-to-work breaker
Delivered ready to break
Factory-ready for Komatsu and Bobcat. For other brands, our workshop measures your arm, H-link and pin and adapts the bracket and couplings to your machine.
- Breaker with Pro Club warranty
- Adaptation, install and test
- Free operator certification
- Starter tips and bushings kit
Is my machine compatible?
Answer in a minute, no commitment.
5-minute training
5 minHow to use the hydraulic breaker
The hydraulic breaker shatters concrete and rock mounted on your carrier. Chisel technique —and never dry-firing— is what protects the tool. If the breaker doesn't match your machine's weight and flow, no technique will save it.
Get your operator certified for free (Spanish)- 01
Match the breaker to your carrier
The DB 40V needs 35–70 L/min (skid steer), the DB 60V 40–110 L/min (backhoe) and the DB 200DX 120–170 L/min (20 t excavator). If your machine can't supply that flow it underperforms; too much and it overheats.
- 02
Set the chisel perpendicular
Rest the chisel at 90° to the surface and apply down-pressure (preload) before percussing.
- 03
Start at the edge, not the center
Break from a free edge inward, in bites. Find the fracture plane; don't punch one deep hole.
- 04
Reposition every 15–30 seconds
If it hasn't broken by then, move the chisel. Pounding one spot overheats and glazes the steel.
- 05
Grease the chisel every 2 hours
With the breaker vertical and the chisel resting on the ground, grease until you see it come out under the housing. Without grease, the bushing and chisel wear out fast.
Do this
- Always keep down-pressure (preload) while percussing.
- If it hasn't broken in 15–30 s → move and find a free edge.
- Grease the bushing every 2 hours, with the tool vertical.
Avoid this
- NEVER dry-fire (no material under the chisel): it wrecks the breaker.
- Don't use the chisel as a pry bar to move rubble.
- Don't percuss more than ~30 s on the same spot.
- Don't work with the carrier's cylinders at the end of their stroke: the shock goes into the machine.
Safety
- Closed cab or face shield, glasses, gloves and hearing protection.
- Exclusion zone: flying chips travel far.
- Never anyone under the boom or in the line of fire.
Applications
What jobs this machine is built for.
- Concrete and rock demolition
- Pavement and joint cutting
- Trench opening
- Remodeling and refits
- Skid-steer, backhoe or excavator work
Buying guides
Clear up your questions before you quote
Guide · 7 min
Which hydraulic breaker fits your machine? Choosing by weight and oil flow
Skid steer, backhoe or excavator: a hydraulic breaker is chosen by the carrier's weight and oil flow. The three SIMAQ DB breakers side by side and the technique that keeps them from breaking.
Read Guide · 7 minHow do you cut asphalt and concrete? Blade, depth and water
Cutting asphalt and concrete step by step: the right diamond blade, wet cutting, depth in passes and signage. With the SQ16 PRO saw (up to 130 mm).
Read Guide · 6 minFlood equipment for municipalities: what a city needs for flood response
Municipal flood response equipment by task and by crew: lighting, dewatering, cutting and reopening access, with the pump maths and what to specify when you buy.
ReadFrequently asked
Which breaker fits my machine?
We carry hydraulic breakers for skid steers, backhoes and excavators. Tell us your machine's model and flow and we'll confirm the fit.
Wet or dry cutting?
The concrete & asphalt saw runs wet cutting (water tank) to control dust and extend the diamond blade.
Low noise?
SIMAQ DB breakers run with less noise and vibration, ideal for urban zones and long shifts.
Warranty, parts and quote?
6-month warranty, parts and local after-sales. Quote via form or WhatsApp.
