Parts for SIMAQ DB 60V

155 parts for the Hydraulic breaker SIMAQ DB 60V, with SIMAQ code, quantity per machine and spec where the manual provides it.

Parts
155
Wear items
25
Manual
SIMAQ60VOM-2026-A
Order via WhatsAppFull manual (PDF)See the machine

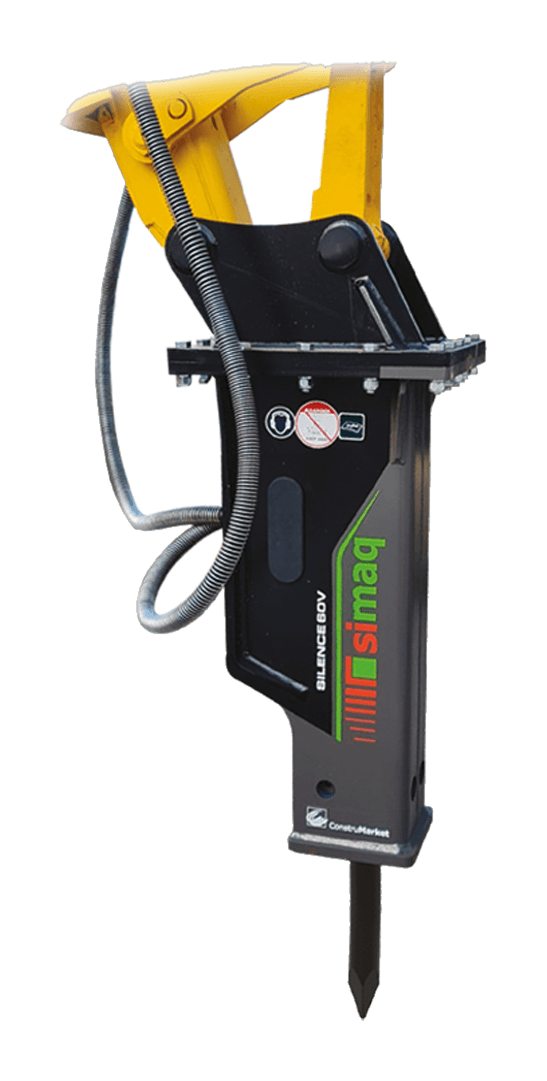

Hydraulic breaker SIMAQ DB 60V

2 codes in this breakdown are flagged with ⚠ because the factory manual repeats them or types letter O instead of zero. Confirm with support before ordering.

Exploded diagram

The number on the drawing is the same # in the table.

155 parts in the official breakdown.

SIMAQ codePartQtySpecOrder
#1-0Main body (power cell)1—Order
#1-1Cylinder1—Order
#1-2Dust seal1—Order
#1-3U-packing1—Order
#1-4Hose adapter2—Order
#1-5Joint cap2—Order
#1-6O-ring6—Order
#1-7Ro plug2—Order
#1-9O-ring1—Order
#1-10Ro plug7—Order
#1-11O-ring7—Order
#1-12Piston1—Order
#1-13Cylinder bushing1—Order
#1-14Gas seal1—Order
#1-15Stepped seal2—Order
#1-16O-ring3—Order
#1-17Valve1—Order
#1-18Valve bushing1—Order
#1-19Valve cap1—Order
#1-20O-ring1—Order
#1-21O-ring1—Order
#1-26Front head1—Order
#1-27Upper bushing1—Order
#1-28Lower bushing1—Order
#1-29Stop pin2—Order
#1-30Rubber plug3—Order
#1-31Grease nipple1—Order
#1-32Chisel pin (tool pin)2—Order
#1-33Stop pin1—Order
#1-36Air plug1—Order
Through-bolt set 4set(s)4—Order
#1-37Through-bolt4—Order
#1-38Through-bolt washer4—Order
#1-39Top nut (through-bolt nut)4—Order
#1-41Rear head1—Order
Gas valve set 2set(s)2—Order
#1-42Gas valve2—Order
#1-43Gas valve cap2—Order
#1-44O-ring2—Order
Accumulator set 1set(s)1—Order
#1-45Accumulator cap1—Order
#1-46Accumulator body1—Order
#1-47Diaphragm1—Order
#1-49O-ring1—Order
#1-50Back-up ring1—Order
#1-51Serrated lock washer4—Order
#1-52Allen screw 4——Order
#1-53Allen screw 8——Order
Seat valve set 1set(s)——Order
#1-54Seat valve 1——Order
#1-55Seat valve nut 1——Order
#1-56Retaining pin 1——Order
Seal kit 1set(s)——Order
#2-0Housing case ass'y1—Order
#2-1Housing case1—Order
#2-2Lower damper1—Order
#2-3Upper damper1—Order
#2-4Mc pad (housing pad)2—Order
#2-5Mc pad (housing pad)2—Order
#2-6Mc pad (housing pad)7—Order
#2-7O-ring15—Order
#2-8Head plate1—Order
#2-9Head damper1—Order
#2-10Rubber cover4—Order
#2-11Rubber cover2—Order
#2-12Rubber cover1—Order
#2-13Mc cover1—Order
#2-14Flat-head allen screw4—Order
#2-15Hose cover2—Order
#2-16Hose side cover2—Order
Adapter plate set (without mounting cap) 1set(s)1—Order
Adapter plate1—Order
Hex bolt2—Order
Hex nut2—Order
Mounting cap 1set(s)1—Order
Wa mounting cap1—Order
Support pin2—Order
Support pin bushing4—Order
Stop ring2—Order
Hex bolt2—Order
Hex nut4—Order
Hex bolt16—Order
Spring washer16—Order
Nylon nut16—Order
Adapter base plate set (without mounting cap) 1set(s)1—Order
Adapter base plate1—Order
Hex bolt16—Order
Spring washer16—Order
Nylon nut16—Order
Conical point (conical chisel point)——Order
Chisel point (pyramid chisel point)——Order
Cross cut (h-chisel point)——Order
Inline cut (v-chisel point)——Order
Flat end (blunt point)——Order
Tamping plate (tamping tool)——Order
Asphalt cutter——Order
Nuclear conical point (nuclear chisel point)——Order
Elephant foot tool (pile-driver tool)——Order
Standard gas charging kit 1set(s)1—Order
Code to confirm3-way valve set1—Order
Gas hose1—Order
Gas adapter1—Order
Coupling1—Order
Cap nut1—Order
Gas charging manual1—Order
India gas charging kit 1set(s)1—Order
Coupling1—Order
Cap nut1—Order
Gas cylinder adapter1—Order
Ring1—Order
China gas charging kit 1set(s)1—Order
Coupling1—Order
Cap nut1—Order
Gas cylinder adapter1—Order
Ring1—Order
Brazil gas charging kit 1set(s)1—Order
Coupling1—Order
Cap nut1—Order
Gas cylinder adapter1—Order
Ring1—Order
Germany gas charging kit 1set(s)1—Order
Code to confirm3-way valve set1—Order
Coupling1—Order
Cap nut1—Order
Ring1—Order
North america gas charging kit 1set(s)1—Order
Coupling1—Order
Cap nut1—Order
Gas cylinder1—Order
India gas cylinder 1set(s)1—Order
Gas cylinder1—Order
Gas cylinder adapter1—Order
Coupling1—Order
Cap nut1—Order
F1 (Manual Lubrication Type) 1set(s)1—Order
Gas Cover1—Order
Hex Bolt4—Order
Spring Washer4—Order
Automatic Lubrication System Kit (Vibration Type) 1set(s)1—Order
Automatic Grease Base Plate1—Order
Automatic Grease Body1—Order
Allen Screw / Socket Head Screw4—Order
Spring Washer4—Order
Plug Bolt / Set Screw4—Order
Nord - Lock Washer4—Order
Quick Coupling1—Order
Grease Hose1—Order
MC Pad (Housing Pad)1—Order
Rubber Cover1—Order
Quick Coupling Elbow1—Order
Hexagonal Bushing1—Order
Upper Bushing Template1—Order
Operator's manual1—Order
Part list1—Order
Tool box1—Order
