Official SIMAQ breakdown

Parts for SIMAQ DB 40V

150 parts for the Hydraulic breaker SIMAQ DB 40V, with SIMAQ code, quantity per machine and spec where the manual provides it.

Parts
150
Wear items
23
Manual
SIMAQ40VOM-2026-A
Order with the formFull manual (PDF)See the machine

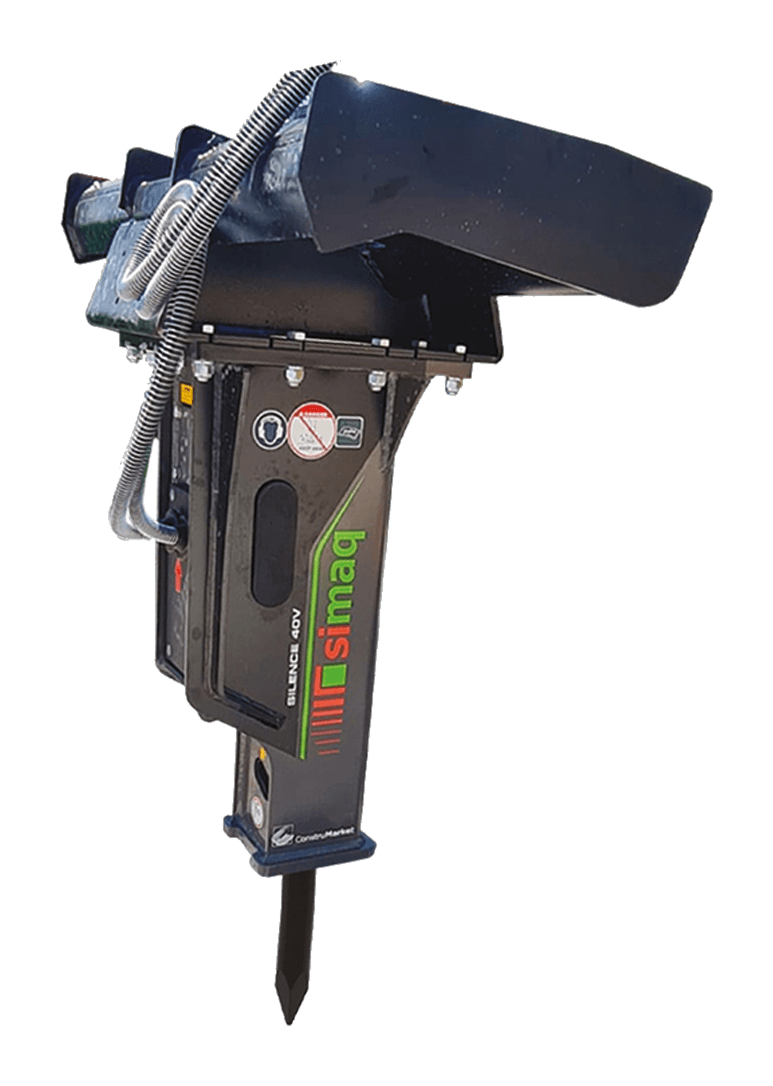

Hydraulic breaker SIMAQ DB 40V

SIMAQ DB 40V parts with photos

The most-ordered parts, photographed in our warehouse. Compare before you order.

Exploded diagram

The number on the drawing is the same # in the table.

150 parts in the official breakdown.

SIMAQ codePartQtySpecOrder
#1.0Main body (power cell) ass'y1—Order
#1-1Cylinder1—Order
#1-2Dust seal1—Order
#1-3U-packing1—Order
#1-4Hose adapter2—Order
#1-5Union cap2—Order
#1-6O-ring4—Order
#1-7Ro plug1—Order
#1-8O-ring1—Order
#1-9Ro plug7—Order
#1-10O-ring7—Order

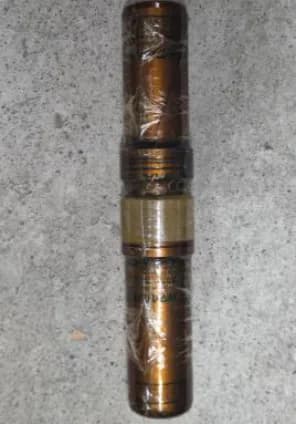

#1-11Pistón/Piston1—Order
#1-12Cylinder bush1—Order
#1-13Gas seal1—Order
#1-14U-packing1—Order
#1-15Slide seal1—Order
#1-16O-ring3—Order

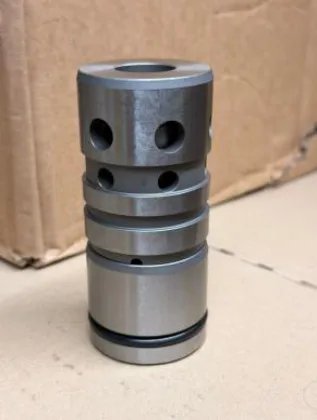

Valve set1—Order
#1-18Valve1—Order
#1-19Valve bush1—Order
#1-20Valve cap1—Order
#1-21O-ring1—Order
#1-22O-ring1—Order
#1-26Front head1—Order

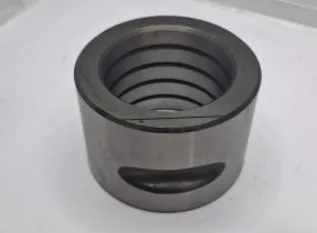

#1-27Lower bush1—Order

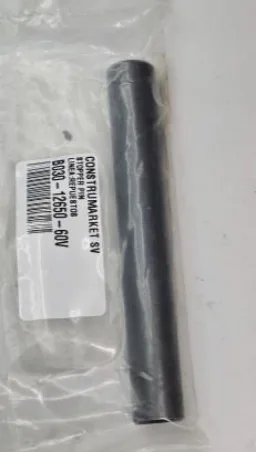

#1-28Stopper pin1—Order

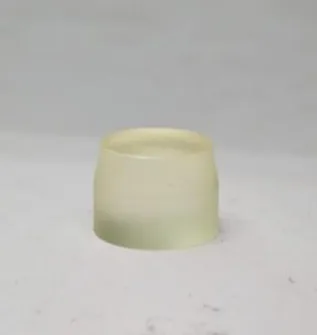

#1-29Rubber plug1—Order
#1-30Niple de grasa/Grease nipple1—Order

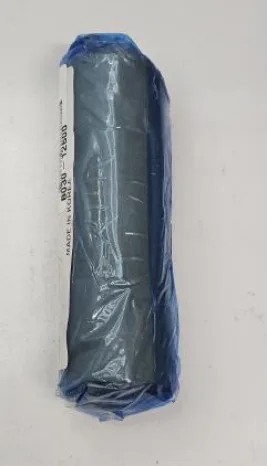

#1-31Chisel pin (tool pin)1—Order
#1-32Chisel stopper pi1—Order
#1-33Spring1—Order
#1-34Spring pin1—Order
#1-35Air plug1—Order

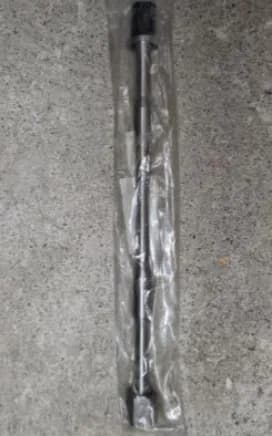

Through bolt set4—Order

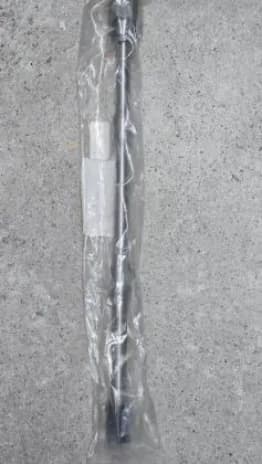

#1-36Through bolt4—Order
#1-37Through bolt washer4—Order
#1-38Through bolt top nut4—Order
#1-40Back head1—Order
Gas valve set1—Order
#1-41Gas valve1—Order
#1-42Gas valve cap1—Order
#1-43O-ring1—Order

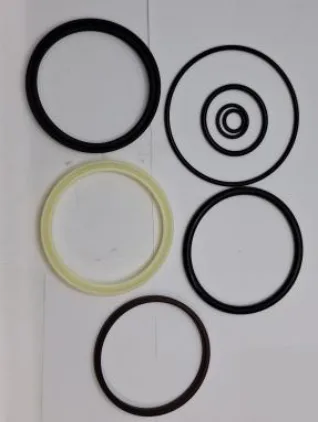

Seal kit1—Order
#2-0Box housing ass'y——Order
#2-1Box housing——Order
#2-2Bottom damper——Order
#2-3Upper damper——Order
#2-4Mc pad (shell pad)——Order
#2-5Mc pad (shell pad)——Order
#2-6Mc pad (shell pad)——Order
#2-7O-ring——Order
#2-8Head plate——Order
#2-9Head damper——Order
#2-10Rubber cover——Order

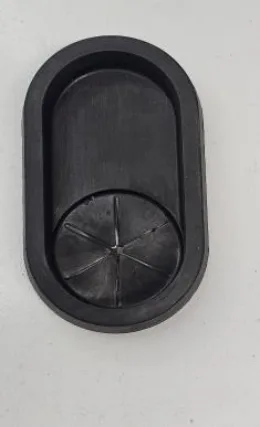

#2-11Grease cover——Order
#2-12Mc cover——Order
#2-13Flat head socket bolt——Order
#2-14Hose cover——Order
#2-15Side hose cover——Order
#2-16Gas cover——Order
#2-17Hex bolt——Order
#2-18Spring washer——Order
#3-3Name plate——Order
#3-4Rivet——Order
#3-5Name decal (l)——Order
#3-6Name decal (r)——Order
#3-7Model decal——Order
#3-8Sticker-danger——Order
#3-9Sticker-grease——Order
#3-11Sticker-out port——Order
#3-12Sticker-in port——Order
#3-13Sticker-warning (gas14)——Order
#13-1Sticker-warning (gas10)——Order
#3-14Sticker-hot caution——Order
#3-16Sticker-loose bolt caution——Order
#3-17Sticker-warning discharge——Order
#3-18Sticker-noise——Order
Adapter plate set (w/o mount cap)——Order
Adapter plate——Order
Hex bolt——Order
Hex nut——Order
Mount cap ass'y——Order
Mount cap wa——Order
Bracket pin——Order
Bracket pin bush——Order
Stop ring——Order
Hex bolt——Order
Hex nut——Order
Hex bolt——Order
Spring washer——Order
Nylon nut——Order
Adapter base plate set (w/o mount c——Order
Adapter base plate——Order
Hex bolt——Order
Spring washer——Order
Nylon nut——Order
Mount cap ass'y (skid)——Order
Mount cap wa——Order
Hex bolt——Order
Spring washer——Order
Nylon nut——Order
Conical point (conical moil point)——Order
Moil point (pyramid moil point)——Order

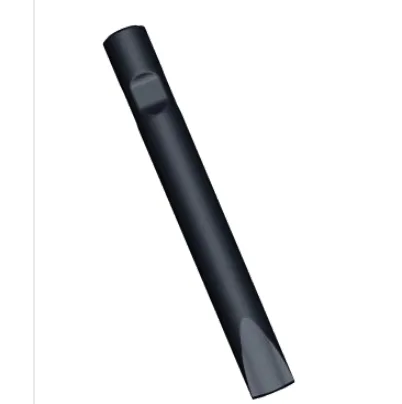

Cross cut (chisel point h)——Order
In-line (chisel point v)——Order
Flat end (blunt)——Order
Tamping pad (tamping B6——Order
Asphalt cutter——Order
Core conical point (core moil B8——Order
Post driver) /Elephant foot tool B9——Order
Gas charging kit-standard——Order
3 way valve set——Order
Gas hose——Order
Gas adapter——Order
Coupling——Order
Cap nut——Order
Gas charging manual——Order
Gas charging kit-india——Order
Coupling——Order
Cap nut——Order
Gas cylinder adapter——Order
Ring——Order
Gas charging kit——Order
Coupling——Order
Cap nut——Order
Gas cylinder adapter——Order
Ring——Order
Gas charging kit-brazil——Order
Coupling——Order
Cap nut——Order
Gas cylinder adapter——Order
Ring——Order
Gas charging kit-germany——Order
Coupling——Order
Cap nut——Order
Ring——Order
Gas charging kit-north america——Order
Coupling——Order
Cap nut——Order
Gas cylinder——Order
Gas cylinder-india——Order
Gas cylinder——Order
Gas cylinder adapter——Order
Coupling——Order
Cap nut——Order
Hyd hose_1700——Order
Hyd hose_2500——Order
Operator's manual——Order
Part list——Order
Tool box——Order
