Premium lineSQ16 PRO

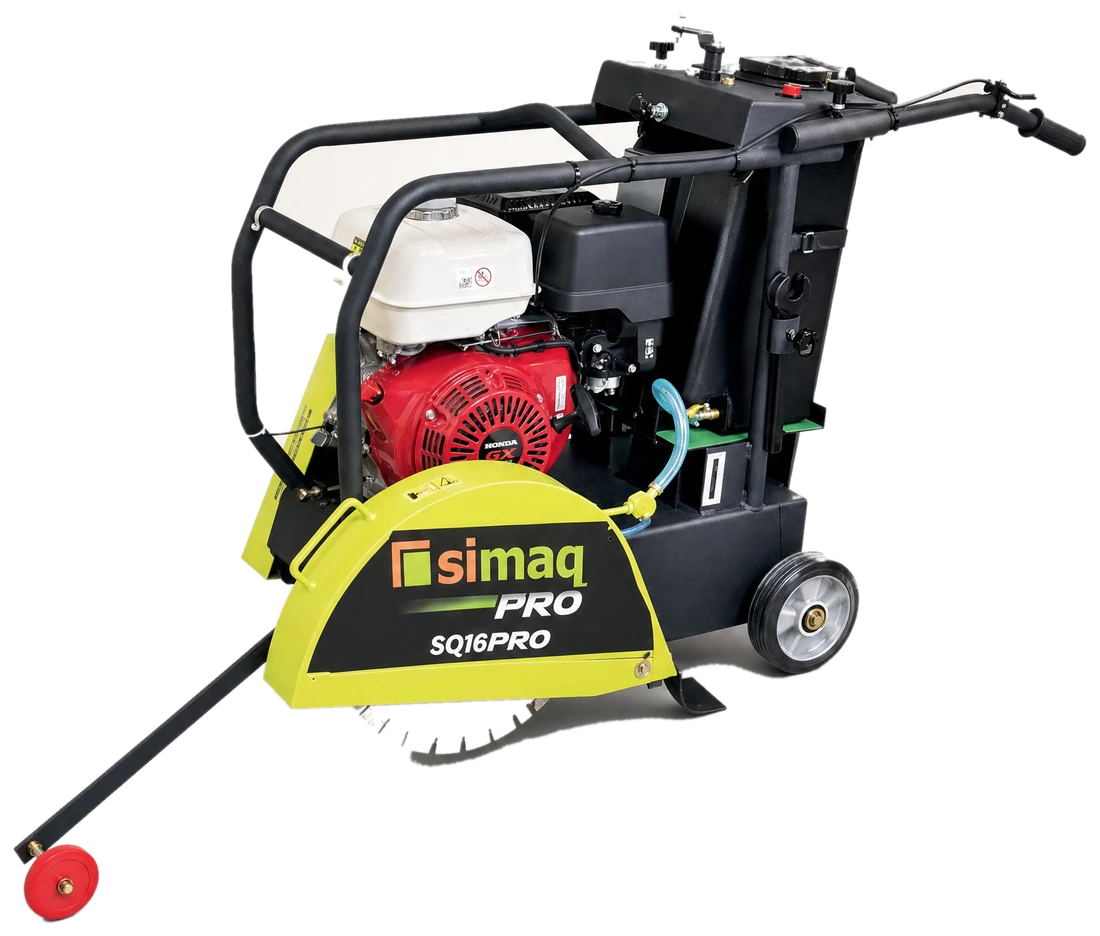

Concrete & asphalt saw SQ16 PRO
Straight, deep cuts in slab and roadway.
EngineHonda GX390
Compare with another machineParts available for this machineBuy it from ConstruMarket in El Salvador
SIMAQ advantages
- Includes two 400 mm (16″) concrete blades
- Wet cutting with water tank for dust control
- Pro-Club maintenance kit included
Features
- Diamond blade
- Powerful 13 HP Honda engine
Specifications
- Power
- 8.2 kW (13.0 HP)
- Weight
- 113 kg
- Max cutting depth
- 130 mm (5.1")
- Blade size
- 300–450 mm (12–18")
- Water tank
- 30 L
- Depth adjustment
- Manual
SIMAQ on the job
Proven on the real jobsite
Straight, deep cuts in slab and roadway.
In action
Watch this machine at work
Joint cutter
Anatomy of the machine
Premium parts of the machine
Hover the dots —or tap them— to explore each component and why it matters.
Auto tour
5-minute training
5 minHow to use the concrete saw
The saw makes straight cuts in concrete and asphalt: control joints, patching, utility trenches and controlled demolition. The right blade, water and depth in passes: that's how the cut runs straight and the blade lasts.
Get your operator certified for free (Spanish)- 01
Right diamond blade
Concrete → a concrete blade (the SQ16 PRO comes with two 400 mm blades); asphalt → an asphalt blade. Mount it in the rotation direction shown by the arrow.
- 02
Fill water and open the spray
Fill the 30 L tank. Always wet cutting: water cools the blade, controls dust and extends its life. Check flow on both sides.
- 03
Mark the line
Snap a chalk or string line. Align the saw's front guide with the mark.
- 04
Lower in passes, not all at once
Cut in partial depths (2–5 cm per pass) to full depth. If the blade binds or smokes, stop, check the water and ease off the feed.
- 05
Control joints on time
On a slab, cut control joints early (once it takes the cut without raveling) at ~¼ of the thickness, so cracking starts where you want it.
Do this
- Always wet cut, with water on both faces of the blade.
- Advance evenly, letting the blade cut at its pace.
- If the blade binds or smokes → stop, check the water and ease the feed.
- Control-joint depth ≈ ¼ of the slab thickness.
Avoid this
- Don't dry-cut a blade meant for water: you ruin it.
- Don't force full depth in a single pass.
- Don't twist the saw in the kerf: the blade binds or shatters.
- Don't wait days to cut control joints: the slab cracks on its own wherever it likes.
Safety
- Glasses, face shield, hearing protection and dust respirator.
- Blade guard always on; never remove it.
- Blade fully stopped before lifting or transporting.
Calculate before you quote
Applications
What jobs this machine is built for.
- Concrete and rock demolition
- Pavement and joint cutting
- Trench opening
- Remodeling and refits
- Skid-steer, backhoe or excavator work
Where this machine earns its keep
The same machine, told for your business: pick your industry and see the full case.
Municipalities & public works
The clean perimeter cut before patching: the difference between a repair that lasts years and one that crumbles at the edges.
All the gear for this industryEquipment rental housesHigh day rate and constant demand from utility contractors: the saw works every day it's rented out.
All the gear for this industryGolf courses & sports clubsThe cracked cart path panel: clean cut, patch and compaction — the repair disappears and the cart doesn't bounce.
All the gear for this industryLandscaping, nurseries & green areasOpening an irrigation run or a new edge in existing slab: a clean, straight cut the finish will hide.
All the gear for this industryBuying guides
Clear up your questions before you quote
Guide · 7 min
Parts of a concrete and asphalt saw: blade, engine, water and depth
Blade, flanges and guard; engine, pulleys and belts; water tank, valve and pipe; depth crank and pointer; wheels and handlebar. What each part of the saw does, what wears and what to check every day.
Read Guide · 8 minYour equipment in the dry season: dust, air filter, heat and how to store it
In the dry season dust clogs the air filter and heat punishes the engine; and whatever sits idle (pumps, rainy-season gear) gets damaged if stored badly. What to check, how often, and how to store fuel, oil and battery according to the Honda manuals.
Read Guide · 5 minWhich cutting blade should you use for concrete, asphalt or stone?
Cured concrete, green concrete, asphalt or stone: which diamond blade goes on the saw, what size, and how to tell you picked the wrong one.
ReadFrequently asked
Which breaker fits my machine?
We carry hydraulic breakers for skid steers, backhoes and excavators. Tell us your machine's model and flow and we'll confirm the fit.
Wet or dry cutting?
The concrete & asphalt saw runs wet cutting (water tank) to control dust and extend the diamond blade.
Low noise?
SIMAQ DB breakers run with less noise and vibration, ideal for urban zones and long shifts.
Warranty, parts and quote?
6-month warranty, parts and local after-sales. Quote via form or WhatsApp.
Ready for a quote?
Tell us about the job and we'll build the package. A rep replies during business hours.
