Official SIMAQ breakdown
Parts for SQREVE-365LTS

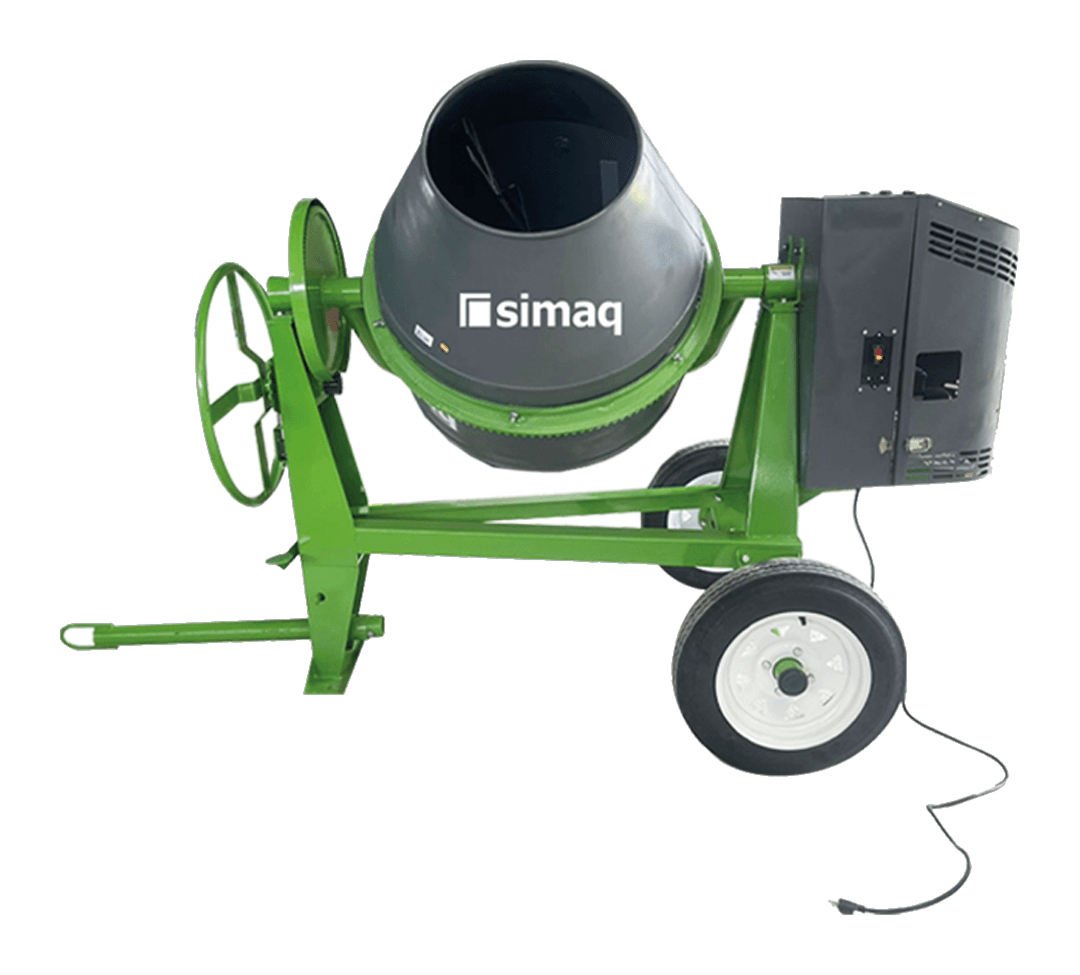

70 parts for the Concrete mixer SQREVE-365LTS, with SIMAQ code, quantity per machine and spec where the manual provides it.
- Parts
- 70
- Wear items
- 8
- Manual
- SQREVE365LTSOM-2026-A
Exploded diagram
The number on the drawing is the same # in the table.
70 parts in the official breakdown.
| SIMAQ code | Part | Qty | Spec | Order |
|---|---|---|---|---|
| #1 | Elastic cylindrical pin 5X60 | 1 | — | Order |
| #2 | Small bevel gear shaft | 1 | — | Order |
| #3 | 800 ring gears | 1 | — | Order |
| #4 | Bolt M12X40 | 6 | — | Order |
| #5 | Deep groove ball bearing 6206 | 2 | — | Order |
| #6 | Shaft with elastic retaining ring 30 | 1 | — | Order |
| #7 | Flat key A8X30 | 2 | — | Order |
| #8 | FLAT PAD 13X37X3 | 12 | — | Order |
| #9 | Bolt M10X25 | 6 | — | Order |
| #10 | Inner cover legs | 2 | — | Order |
| #11 | Pad 12 | 4 | — | Order |
| #12 | Hinge shafts | 3 | — | Order |
| #13 | Hinge washers | 3 | — | Order |
| #14 | Cotter pin 1.6×18 | 3 | — | Order |
| #15 | Large pulleys | 1 | — | Order |
| #16 | Large wheeled pads | 1 | — | Order |
| #17 | Motor cover | 1 | — | Order |
| #18 | Bolt M8X16 | 1 | — | Order |
| #20 | Motor & Switch Assembly | 1 | — | Order |
| #21 | Self-locking nut M6 | 5 | — | Order |
| Hexagon flat-end set 22 | 1 | — | Order | |
| #23 | Small pulleys | 1 | — | Order |
| #24 | V-belt A1400 | 2 | — | Order |
| #25 | Inner cover of the motor | 1 | — | Order |
| #26 | Bolt M8X30 | 4 | — | Order |
| #27 | Dust cover | 2 | — | Order |
| #28 | Self-locking nut M12 | 24 | — | Order |
| #29 | Nut M8 | 4 | — | Order |
| #30 | Flat pad 8 | 4 | — | Order |
| #31 | Pad 8 | 5 | — | Order |
| #32 | Motor seat plate weldments | 1 | — | Order |
| #33 | Deep groove ball bearing 6205 - 2RS | 4 | — | Order |
| #34 | Wheel hub (welded type) | 2 | — | Order |
| #35 | Oil seal 32X52X10 | 2 | — | Order |
| #36 | Flat pad 10 | 6 | — | Order |
| Self-locking nut M10 | 8 | — | Order | |
| Bolt M10X20 | 4 | — | Order | |
| Ground axle weldments | 1 | — | Order | |
| Flat pad 12 | 4 | — | Order | |
| Bolt M12X30 | 20 | — | Order | |
| Shaft with elastic retaining ring 25 | 2 | — | Order | |
| Bolt M12X90 | 1 | — | Order | |
| Tire assembly 4.80 - 12 | 2 | — | Order | |
| Traction shaft weldments | 1 | — | Order | |
| Foot pedal connecting rod | 1 | — | Order | |
| Brake gear shaft weldments | 1 | — | Order | |
| Foot pedal weldments | 1 | — | Order | |
| Split pins | 1 | — | Order | |
| Self-locking nut M8 | 1 | — | Order | |
| Locking shaft | 1 | — | Order | |
| Bolt M6X30 | 1 | — | Order | |
| SPRING 2.5X10X20 | 1 | — | Order | |
| Bolt M6X25 | 1 | — | Order | |
| Round handwheel weldments | 1 | — | Order | |
| Bolt M8X25 | 1 | — | Order | |
| Nylon sleeve 800 type | 2 | — | Order | |
| Bolt M16X40 | 1 | — | Order | |
| Rotary seat weldments | 2 | — | Order | |
| Oil cup M8X1 | 2 | — | Order | |
| Cross groove pan head 63 | 4 | — | Order | |
| Gear cover fixing plate | 2 | — | Order | |
| Large ring gear guard 65 | 1 | — | Order | |
| Barrel shaft gland | 1 | — | Order | |
| Elbow weldments | 1 | — | Order | |
| Small bevel gears | 1 | — | Order | |
| Tapered roller bearing 32208 | 2 | — | Order | |
| Barrel weldments | 1 | — | Order | |
| Elastic cylindrical pin 8X60 | 1 | — | Order | |
| Fang Rosse | 1 | — | Order | |
| The drum rotates the support shaft | 1 | — | Order |
