Official factory breakdown

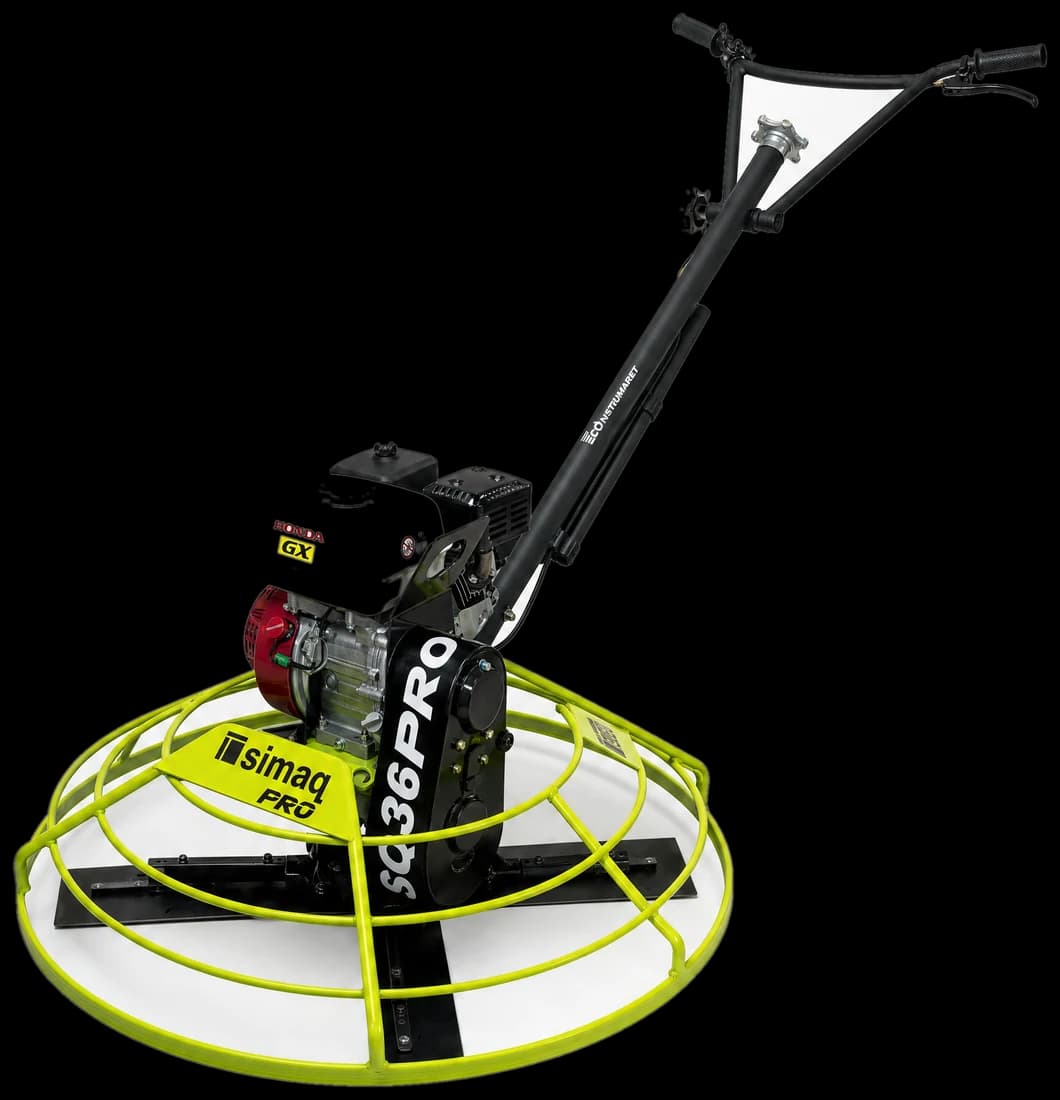

Parts for SQ36 PRO
40 parts for the Power trowel SQ36 PRO, with SIMAQ code, quantity per machine and spec where the manual provides it.
- Parts
- 40
- Wear items
- 10
- Manual
- SQ36PROOM-2026-A
Engine maintenance
Honda GX160
The engine consumables replaced at every service. The spark plug is listed by its manufacturer reference, not the engine part number, because that one varies by variant.
- Spark plug
- BPR6ES (NGK) · W20EPR-U (DENSO)
- Plug gap
- 0,7–0,8 mm
- Engine oil
- SAE 10W-30, API SJ o superior
- Oil capacity
- 0,58 L
- Valve clearance (cold)
- Intake 0,15 ± 0,02 mm · Exhaust 0,20 ± 0,02 mm
For any other engine part, have the code stamped on the engine plate at hand: the same model has variants and part numbers differ between them. Send us that code and we'll confirm the part.
Exploded diagram
The number on the drawing is the same # in the table.
40 parts in the official breakdown.
| SIMAQ code | Part | Qty | Spec | Order |
|---|---|---|---|---|
| #1 | Guard cover | 1 | — | Order |

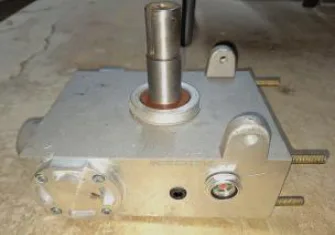

| #2 | Reduction box | 1 | — | Order |
| #3 | Engine | 1 | — | Order |
| #4 | Small plate | 4 | — | Order |
| #5 | Staight nozzle | 4 | — | Order |
| #6 | Plane bearing | 1 | — | Order |
| #7 | Bigger plate | 1 | — | Order |
| #8 | Pulley | 1 | — | Order |

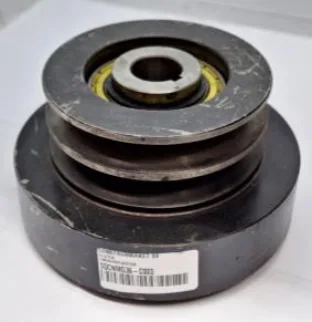

| #9 | Clutch | 1 | — | Order |
| #10 | Lifting plate | 1 | — | Order |
| #11 | Belt cover | 1 | — | Order |
| #12 | Bracket , belt cover | 1 | — | Order |
| #13 | Knock pin | 1 | — | Order |
| #15 | Circlip | 1 | — | Order |
| #16 | Pin rod | 1 | — | Order |
| #17 | Knock pin shaft | 1 | — | Order |

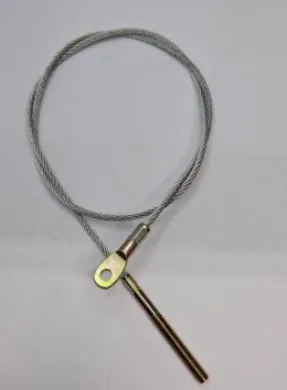

| #18 | Adjusting cable | 1 | — | Order |
| #19 | Handle pipe | 1 | — | Order |
| #20 | Handle wheel A | 1 | — | Order |
| #21 | Screw stem nut | 1 | — | Order |
| #22 | Fixing seat for plane bearing | 1 | — | Order |
| #23 | Plane bearing51104 | 1 | — | Order |
| #24 | Adjusting screw stem | 1 | — | Order |
| #25 | Handle wheel B | 1 | — | Order |
| #26 | Handle | 1 | — | Order |

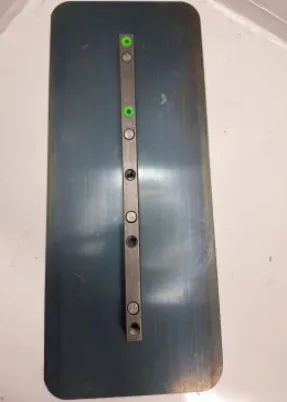

| #27 | Blade350*150*1.7mm | 1 | — | Order |

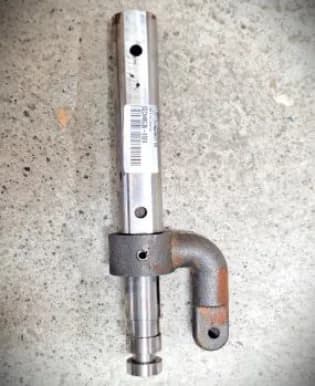

| #28 | Blade fixer | 4 | — | Order |
| #29 | Adjusting device | — | — | Order |
| #30 | Cross screw | 4 | — | Order |
| #31 | Cross | 1 | — | Order |
| #32 | Fixing screw | 8 | — | Order |
| #33 | Bending nozzle | 4 | — | Order |
| #34 | V-belt | 1 | — | Order |
| #35 | Torsional spring | 4 | — | Order |

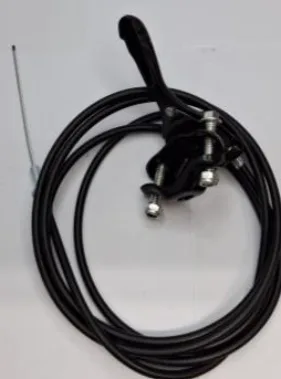

| #36 | Throttle cable | 1 | — | Order |
| #37 | Throttle lever | 1 | — | Order |
| #38 | Grip | 2 | — | Order |

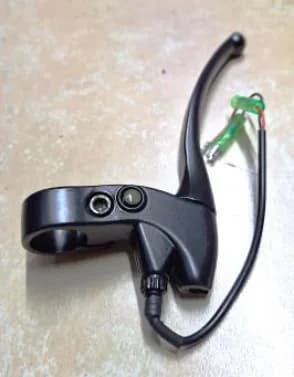

| #39 | Red switch, engine stop | 1 | — | Order |
| #40 | Cable roller (nylon) | 1 | — | Order |
| #41 | Iron plate (optional) | 1 | — | Order |
