Official factory breakdown

Parts for SQRVP1.5

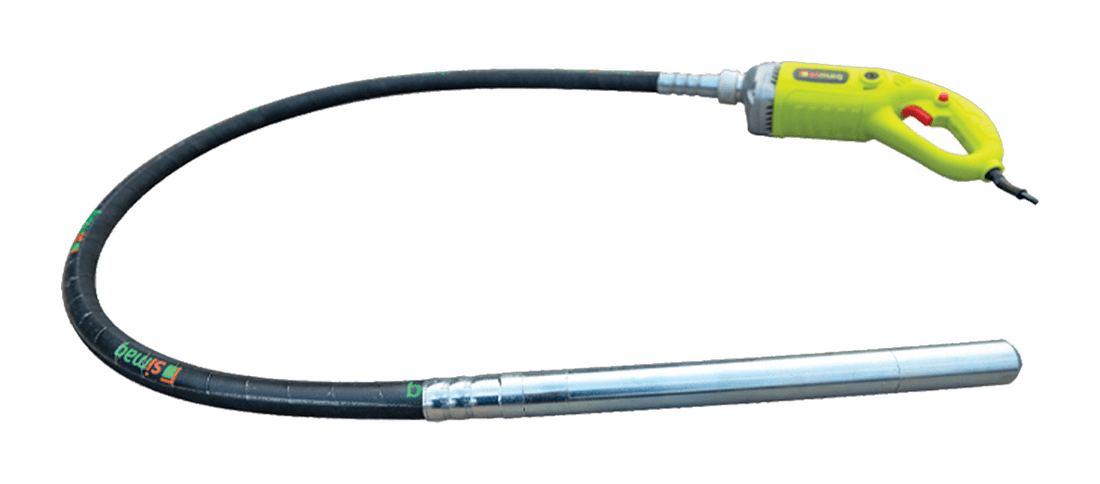

43 parts for the Electric mini concrete vibrator, with SIMAQ code, quantity per machine and spec where the manual provides it.

Exploded diagram

The number on the drawing is the same # in the table.

43 parts in the official breakdown.

SIMAQ code	Part	Qty	Spec	Order
#1	Spindle	—	—	Order
#2	Key	—	—	Order
#3	Bearing 6200rs	—	—	Order
#4	Screw	—	—	Order
#5	Gear box	—	—	Order
#6	Gear	—	—	Order
#7	Circlip	—	—	Order
#8	Steel bushing	—	—	Order
#9	Cover	—	—	Order
#10	Bearing 6200rs	—	—	Order
#11	Rotator	—	—	Order
#12	Carbon brush	—	—	Order
#13	Holder	—	—	Order
#14	Bearing 608z	—	—	Order
#15	Washer	—	—	Order
#16	Wind guard	—	—	Order
#17	Screw	—	—	Order
#18	Stator	—	—	Order
#19	Housing	—	—	Order
#20	Switch	—	—	Order
#21	Wire clip	—	—	Order
#22	Screw	—	—	Order
#23	Wire sleeve	—	—	Order
#24	Wire	—	—	Order
#25	Circlip	—	—	Order
#26	Screw	—	—	Order
#27	Handle	—	—	Order
#1	Head cap	—	—	Order
#2	O-ring(2pcs)	—	—	Order
#3	Track	—	—	Order
#4	Rotary shaft	—	—	Order
#5	Case	—	—	Order
#6	Oil seal holder	—	—	Order
#7	Oil seal	—	—	Order
#8	Bearing	—	—	Order
#9	Hose joint	—	—	Order
#10	Shaft joint	—	—	Order
#11	Flexible hose	—	—	Order
#12	Flexible shaft	—	—	Order
#13	Hexagonal shaft	—	—	Order
#14	Nut	—	—	Order
#15	O-ring	—	—	Order
#16	Coupling	—	—	Order
