Case: stacking in the warehouse without back injuries
By the SIMAQ technical team · Grupo ConstruMarket ·
Short answer
To stack in narrow aisles without lifting by hand, the approach is an electric stacker to raise the pallet and hydraulic pallet trucks to move it at floor level: the SQCDD-H1545 PRO stacker (1,500 kg, triple mast) and SIMAQ pallet trucks of 2.0, 2.5 or 3.0 t. This is an illustrative application case: it shows the approach, not measured results from a customer.
SQCDD-H1545 PRO electric stacker
zero-emission indoors
pallet-truck capacity
The challenge
A distribution center moved pallets by hand and with a forklift too big for its narrow aisles. There was injury risk from manual handling, rack strikes and a machine that didn't maneuver well indoors.
The SIMAQ solution
- SQCDD-H1545 PRO electric stacker (1,500 kg, triple mast) to lift pallets to rack height without back strain.

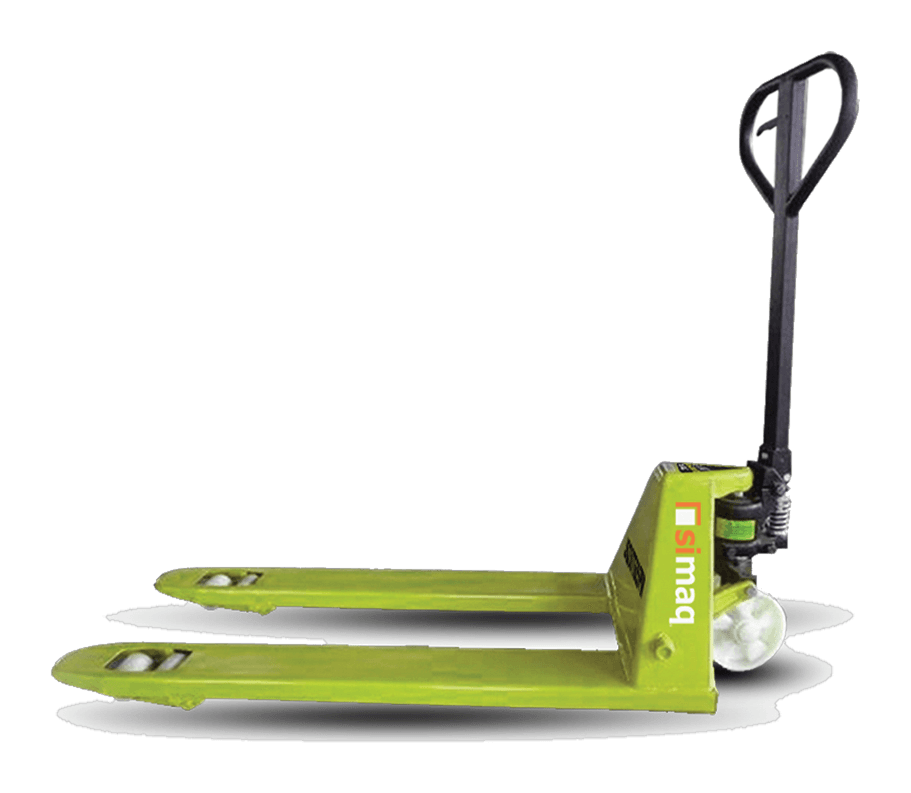

- 2.0, 2.5 or 3.0 t hydraulic pallet trucks to move loads at floor level, by pallet weight.
- Electric equipment: no emissions and low noise for indoor work.
How each machine was chosen
The pallet truck was chosen by the heaviest pallet's weight, with margin, and by fork height against the pallet opening. The stacker, by the weight to lift and the rack height; the advisor confirms the model's lift height against your rack. For light pallets and occasional use, there's also the 1,000 kg SDJIO-S PRO manual stacker.
The result
More pallets stacked per hour, clear aisles and a crew that no longer lifts by hand. (Illustrative application case.)
Common mistakes
- Choosing the pallet truck by average load instead of the heaviest pallet.
- Lifting loads with the stacker beyond its capacity.
- Using combustion equipment in a closed warehouse.
Takeaway
For the warehouse: an electric stacker for height and pallet trucks for the floor, all electric or manual for indoors. Request a quote here with your pallet weights and rack height, and an advisor will contact you during business hours.
Keep going
Take it to the job site
Print the checklist to go over it on site, or send the guide to your crew.
Frequently asked
What pallet-truck capacity do I need?
That of your heaviest pallet, with margin: 2.0, 2.5 or 3.0 t. Also check the forks fit your pallets' opening.
How much does the SIMAQ electric stacker lift?
The SQCDD-H1545 PRO has a 1,500 kg capacity. Your advisor confirms the lift height for your rack.
Manual or electric stacker?
Manual (SDJIO-S PRO, 1,000 kg) for a few moves a day and light loads. Electric (1,500 kg) if you stack many times per shift.
