SQ20T550PM

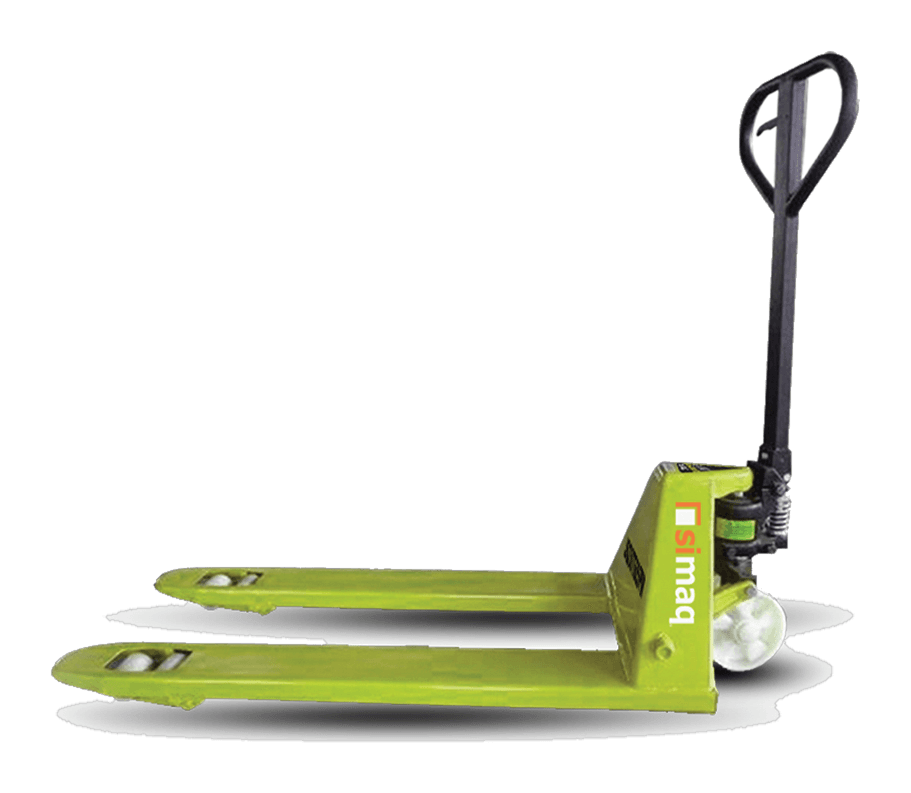

Pallet truck SQ20T550PM
The floor workhorse: moves tonnes at ground level.
View details5-minute training
5 minHow to use the pallet truck

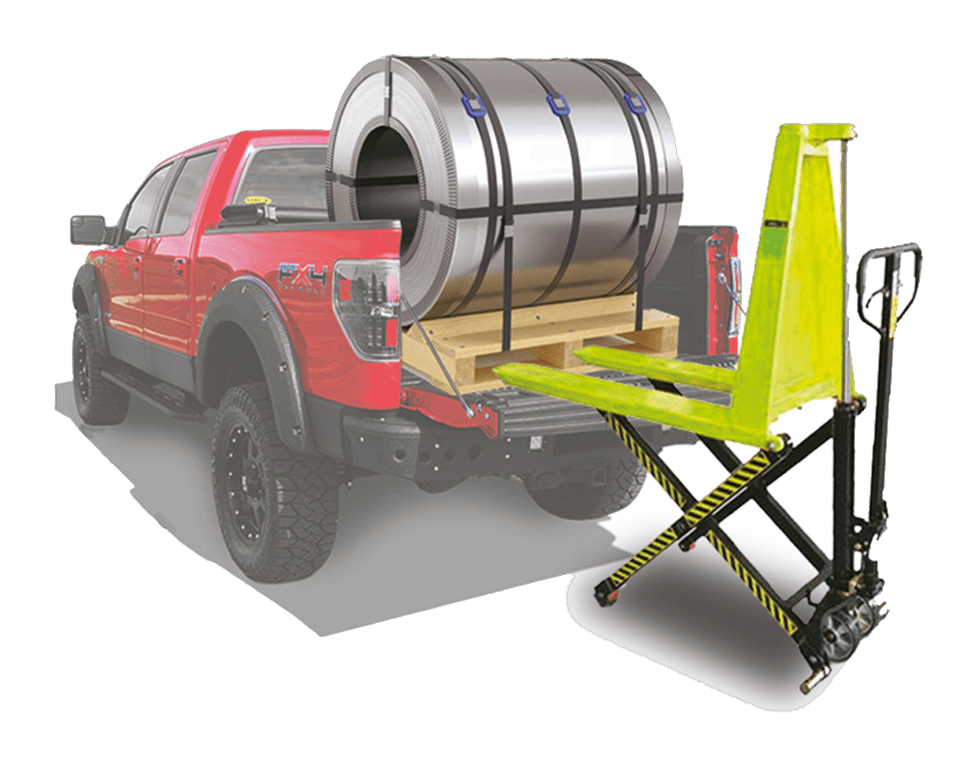

Use a pallet jack by sliding the forks fully under the pallet, pumping the handle until the pallet just clears the floor, and pushing it rather than pulling. SIMAQ has 2.0, 2.5 and 3.0-tonne pallet jacks and the GSF1 PRO scissor lift pallet truck (1,000 kg). Never exceed rated capacity or take it down steep ramps loaded.
Also called: pallet jack, pallet truck, hand pallet truck
The pallet truck moves pallets at floor level with minimal effort. Picking the load right and pushing (not pulling) protects your back.
- 01
Enter fully under the pallet
Insert the forks all the way, centered, sharing the weight across both.
- 02
Pump to lift
Work the handle until the pallet just clears the floor. No higher than needed.
- 03
Push, don't pull
Move it by pushing from behind: more control and easier on your back. Watch your path.
- 04
Lower with the release lever
At the destination, use the release to set the pallet and pull the forks out straight.
Do this
- Spread the weight evenly across both forks.
- Push the load; save pulling for short maneuvers.
- Respect the capacity (2.0 / 2.5 / 3.0 t).
Avoid this
- Don't move unstable or poorly stacked loads.
- Don't use it on steep ramps with a load.
- Don't leave the forks up in a walkway.
Safety
- Steel-toe boots and gloves.
- Mind your feet when lowering the load.
- Clear aisles and even floors.
Test yourself
Got it down?
Self-check
Each practice: do it or avoid it? Tap your answer.
Don't leave the forks up in a walkway.
Don't use it on steep ramps with a load.
Respect the capacity (2.0 / 2.5 / 3.0 t).
Spread the weight evenly across both forks.
Don't move unstable or poorly stacked loads.
Push the load; save pulling for short maneuvers.
Equipment in this training
Apply it on these machines
Buying guides
Clear up your questions before you quote
Guide · 5 min
Which pallet jack do I need: 2, 2.5 or 3 tonnes?
How to pick pallet jack capacity by your heaviest load, check the forks fit your pallets and know when you need a stacker or a lift table instead.
Read Guide · 5 minWhat is a pallet stacker, and when does it make sense?
What a stacker is, how it differs from a pallet jack and a forklift, manual or electric, and what to measure before you quote one for your warehouse.
Read Guide · 5 minWhat is a lifting platform, and which one do you need?
Platforms for people (scissor and boom) and gear for lifting loads (lift table, scissor pallet truck and stacker): what each one is and which suits you.
ReadFAQ
What people ask about the pallet truck
What pallet jack capacity do I need?
The heaviest pallet you'll move, with a margin: 2.0 t for general loads, 2.5 or 3.0 t for warehouses with heavy loads. The guide on choosing pallet jack capacity has the detail.
Will the pallet jack fit any pallet?
It depends on the forks' lowered height: 75 mm on the 2.0 and 3.0 t models, 85 mm on the 2.5 t. Measure your pallets' opening before choosing.
Pallet jack, stacker or lift pallet truck: which one?
Just moving pallets at floor level → pallet jack. Putting them into racking → stacker. Working the load at waist height → the GSF1 PRO scissor lift pallet truck.
What maintenance does a pallet jack need?
1–2 drops of oil on the pivot joints every 3 months, and a pump hydraulic-oil change once a year.
What's the most common pallet-jack mistake?
Pulling it loaded, walking backwards down long aisles: you lose control and strain your back. Push it and watch where you're going.
