P001

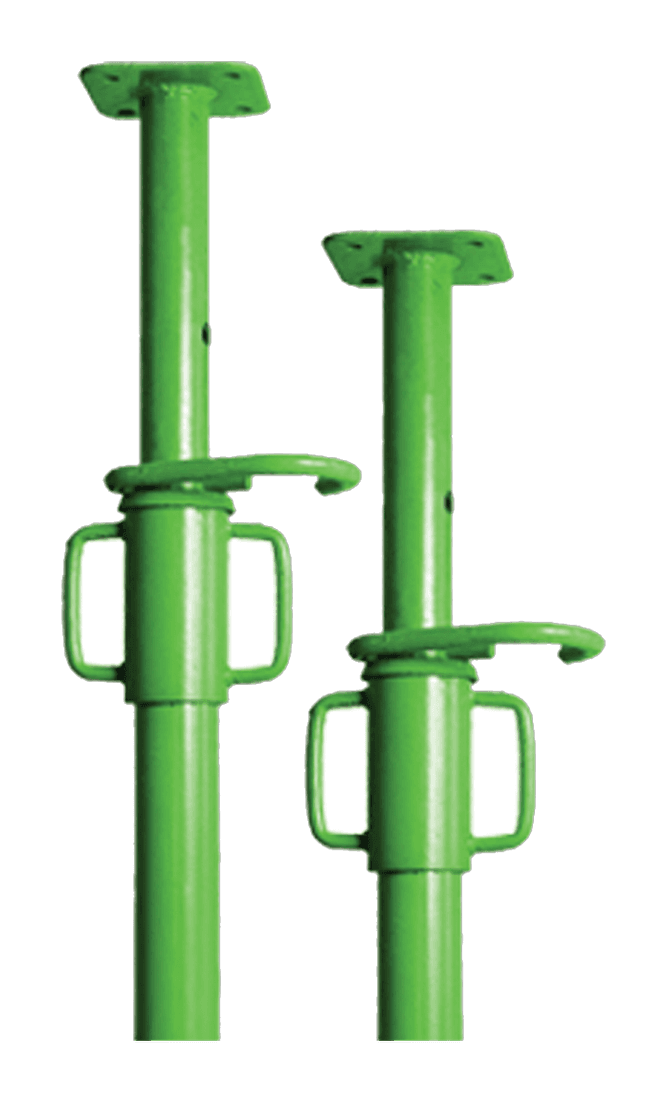

Shoring prop P001
Adjustable shoring for formwork and temporary loads.
Compare with another machineParts available for this machineBuy it from ConstruMarket in El Salvador
Features
- Fine adjustment
- High capacity
Specifications
- Min height
- 2.20 m
- Max height
- 4.00 m
- Adjustment
- Extensible
5-minute training
5 minHow to use the scaffold
Scaffolding gets your crew up safely — if assembled right. Level base, bracing and a full platform: the three pillars of not falling.
- 01
Level, firm base
Set on leveling jacks and base plates over compacted ground. Never on loose bricks or planks.
- 02
Frame + cross-brace
Raise the frames and lock both cross-braces per section: bracing is what gives rigidity.
- 03
Full, locked platform
Cover the full width with platforms and engage the anti-tip locks. No gaps to misstep.
- 04
Guardrail and internal access
Above a certain height, perimeter guardrail and toe-board. Climb the internal ladder, never the braces.
- 05
Lock casters or tie to structure
If rolling, lock the casters while working. At height, tie the scaffold to the structure.
Do this
- Level with jacks before raising the first lift.
- Lock the casters whenever someone is up top.
- Inspect parts: nothing bent, deeply rusted or cracked.
Avoid this
- Don't move a rolling scaffold with people or material on top.
- Don't improvise platforms with loose boards.
- Don't exceed the platform's working load.
Safety
- Harness when there isn't a complete guardrail.
- Chin-strap hard hat, boots and gloves.
- Clear the zone of objects that could fall.
Applications
What jobs this machine is built for.
- Vertical work and façades
- Masonry and plastering
- Installations at height
- Building maintenance
- Formwork and shoring
Where this machine earns its keep
The same machine, told for your business: pick your industry and see the full case.
Buying guides
Clear up your questions before you quote
Guide · 5 min
When and how do you cure concrete? Methods, days and mistakes
When to start curing, for how many days, with water, burlap, plastic or curing compound, and the mistakes that rob your slab or column of strength.
Read Guide · 6 minHow do you put up a scaffold safely? Base, leveling and braces step by step
A firm base with screw jacks, two braces per frame set, gap-free decks and locked casters: step-by-step assembly and the mistakes that cause falls, with the SIMAQ system parts.
ReadFrequently asked
How many scaffold frames do I need?
It depends on height and frontage length. Send us the site dimensions and we'll build the list of frames, braces, platforms and accessories.
Is it galvanized and reusable?
Yes: galvanized modular system, quick to assemble and made to reuse job after job.
Casters, jacks and platforms included?
We carry the full system: frames, cross-braces, locking casters, leveling jacks, platforms and shoring props.
Do you sell by volume?
Yes. For distributors and large projects, request a wholesale / container quote at importer pricing.
Ready for a quote?
Tell us about the job and we'll build the package. A rep replies during business hours.
