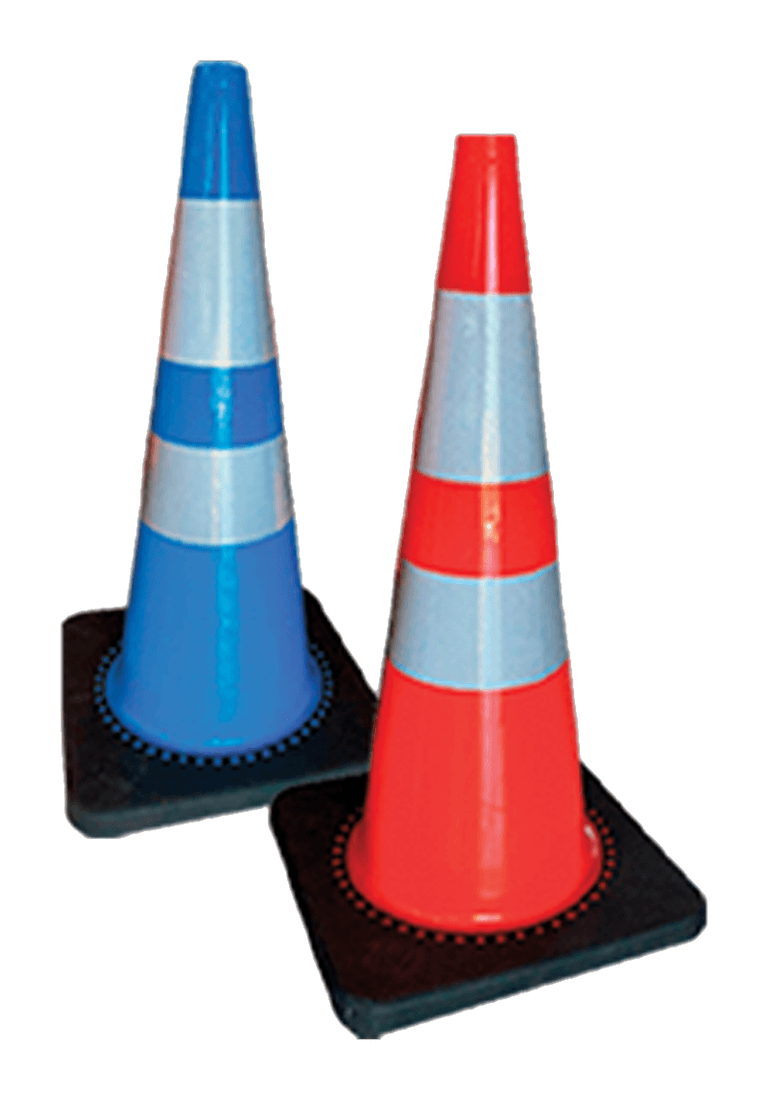

Traffic cone
Worksite marker, stable and reflective.
View detailsFree tool · SIMAQ
What signage does my work zone need?
Short answer
Build the kit by function: channel (28″ cones for closures of hours; 91 cm drums if the closure stays overnight or lasts days; delineator posts on long lines), warn and close off (caution tape, 1 m high mesh around trenches and reflective tape on edges) and protect (a vest per person and speed bumps at accesses). How many cones or drums and how far apart is set by the approved traffic-management plan; here you work out the rest with your measurements.
SIMAQ · What signage does my work zone need?
Channel traffic
- Channelizer drum (91 cm)Per the traffic planA closure of days or weeks: more visible and steadier than a cone.
- Delineator post (115 cm, 6 kg base)Per the traffic planMarks long continuous lines —the trench edge, a median— without invading the lane.
Warn and close off
- «CAUTION» barrier tape1 250 m rollMarks the 60 m pedestrian perimeter. It warns, but stops no one.
- Safety mesh roll (1.00 m high)1 50 m rollPhysically closes the 40 m of trench: the difference between a pedestrian seeing the hole and not being able to fall in.
- Reflective adhesive tape (red/white)1 50 m rollMakes trench edges, rails and parked equipment visible at night.
Protect the crew
- Orange mesh reflective vest6 one per personEveryone on the road wears a vest, even «for just a minute».
- How many cones, drums and posts, and how far apart, is set by the traffic-management plan approved for your project: it depends on road speed. This tool doesn't make it up.
- Never lots of cones with no advance warning: a closure has warning, taper, work area and end zone.
- Tape alone around an open trench doesn't protect: the mesh closes it off.
How it's calculated
- Daytime hours → cones; night, days or weeks → drums.
- Open trench → perimeter mesh; if it lasts days or there's night work, reflective tape on the edges; long line → delineator posts.
- Rolls = metres ÷ roll length (mesh 50 m, caution tape 250 m, reflective tape 50 m), rounded up.
- Speed bump per access = (width − 2 end caps of 19 cm) ÷ 122 cm module, rounded up, plus its 2 end caps.
- Vests: one per person on the road.
Assumptions and sources
- Which piece for which closure and function.Source: SIMAQ School guide «What road signaling equipment does a work zone need?».
- Roll lengths and speed bump sizes.Source: SIMAQ spec sheets for mesh roll, barrier tape, reflective tape and speed bump.
- How many cones, drums or posts, and their spacing, isn't calculated.Source: they depend on road speed and are set by the traffic-management plan approved for your project.
Every result is a reference estimate. It doesn't replace a professional's design or supervision.
FAQ
Cone or drum?
Cones for maneuvers and closures of hours; drums when signage stays overnight or traffic is heavy: taller, more reflective area and less blow-over from truck wind.
How many cones do I need?
The traffic-management plan approved for your project sets it: it depends on road speed, the warning area and the taper. This tool doesn't make it up.
Is tape around a trench enough?
No. Tape warns but stops no one; the 1 m high mesh physically closes off the trench.
Which vest?
Everyone on the road wears one. The orange mesh vest is the crew vest; the cyan one meets CE EN471 Class 2, for when the contract requires that standard.
The machine for the job
Related SIMAQ machines
Channelizer drum
High-visibility channelizer drum for detours and lane closures.
View details

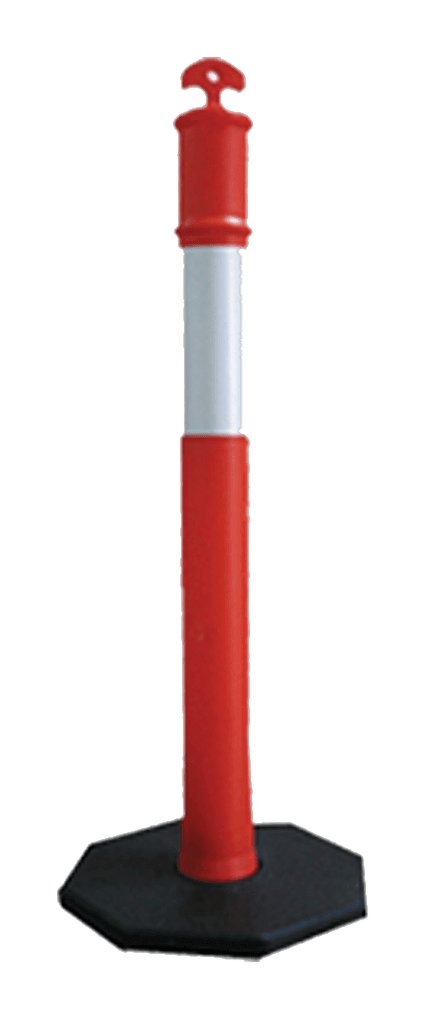

Delineator post with reflective band
Guides traffic with reflective band.
View details

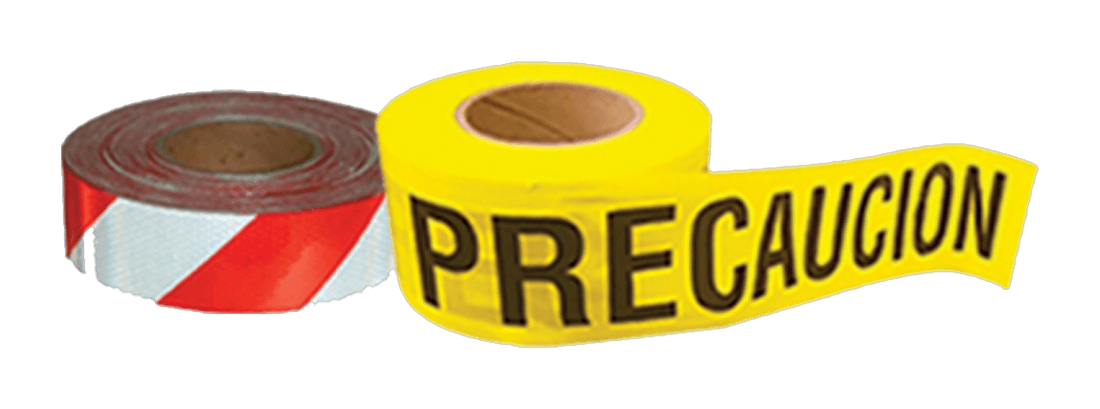

Barrier caution tape
Marks and warns. Visible from afar.
View details

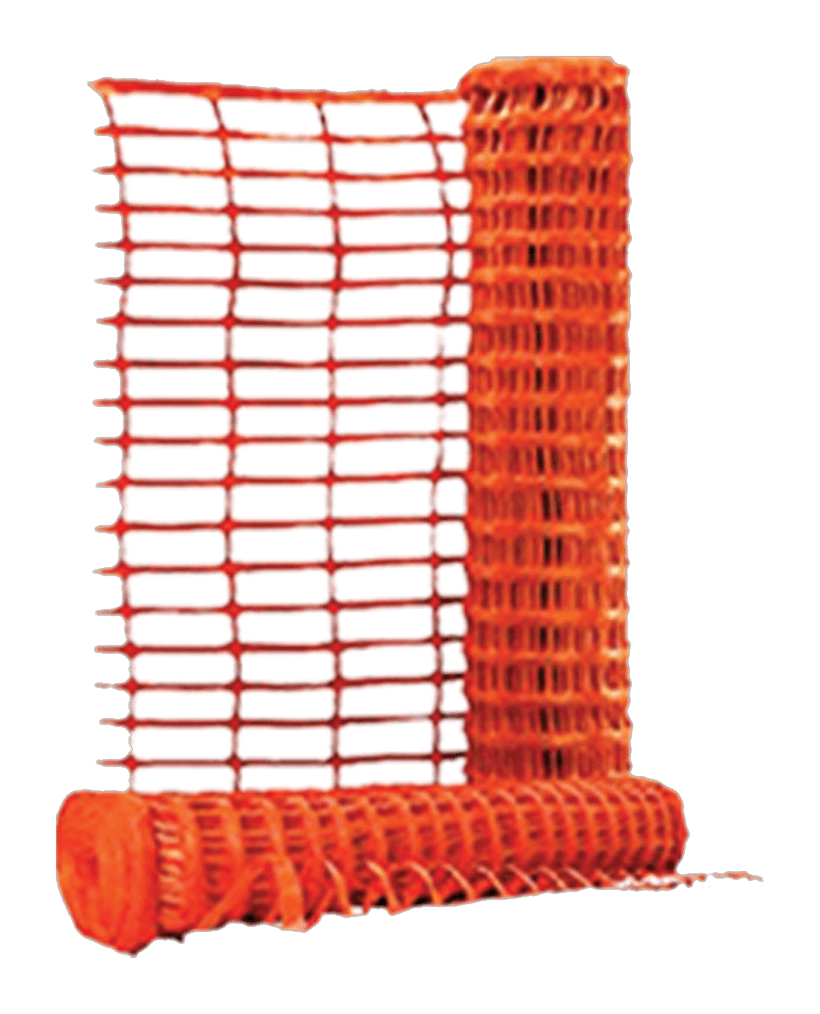

Safety mesh roll
Closes and protects the site perimeter.
View details
Reflective adhesive tape
Reflectivity for signage and gear.
View details

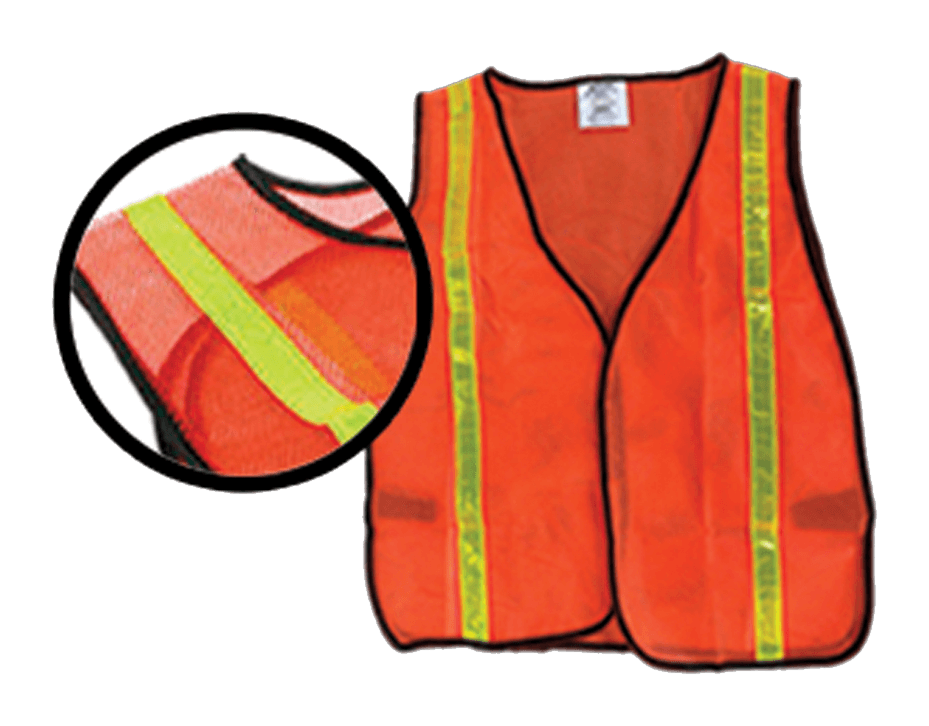

Reflective mesh safety vest, orange
Closes and protects the site perimeter.
View details

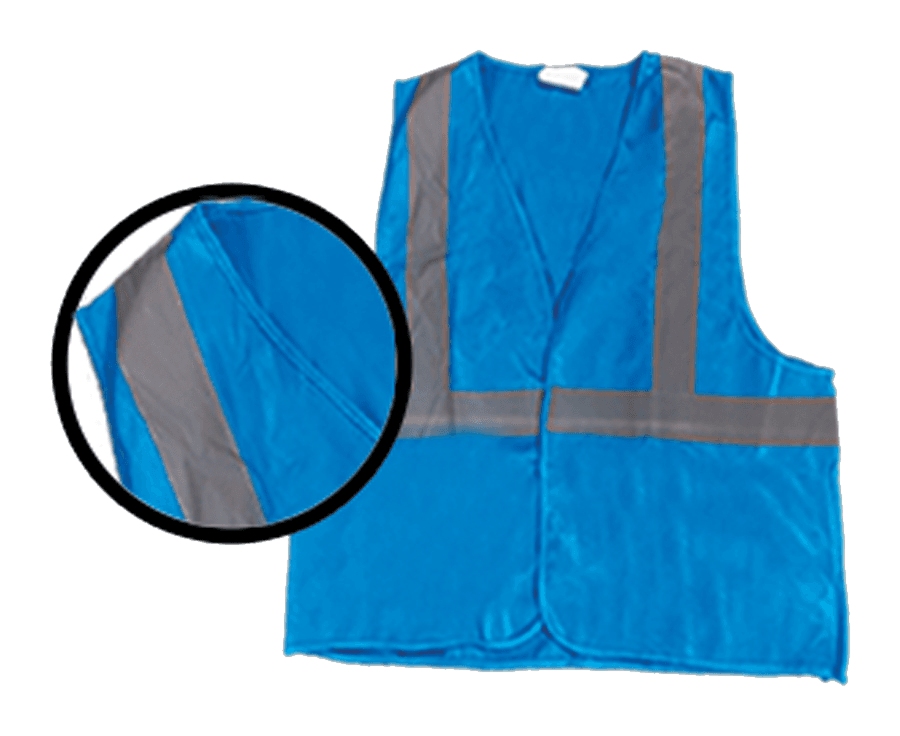

Reflective mesh safety vest, cyan
Closes and protects the site perimeter.
View details

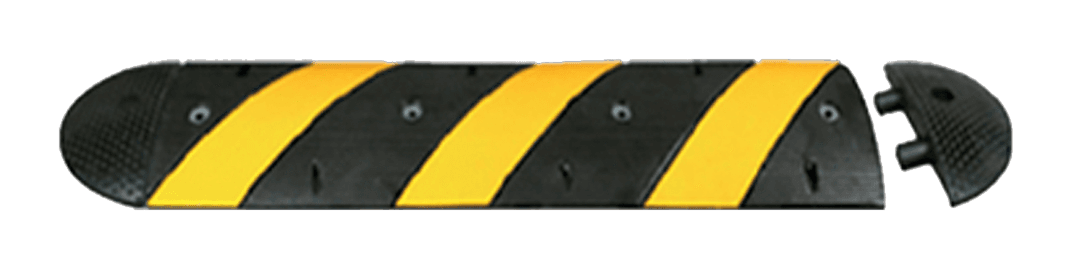

Speed bump
